Orion

Orion 2" Crayford Style Focuser, Newtonian

SKU: ONCFN2 MFR: 13039
Due to Manufacturer Restrictions, This Item can NOT be Shipped to California.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$84.99
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

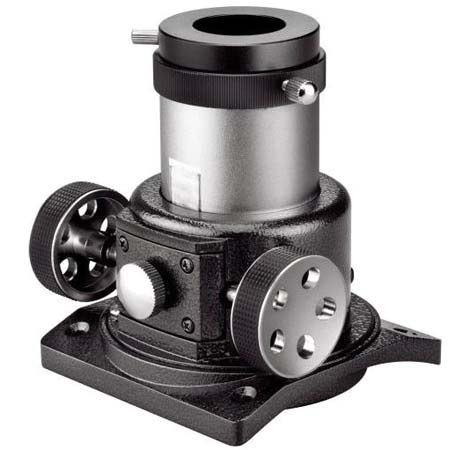

Upgrade your Orion reflector with a quality 2" Crayford-style focuser*. Designed to replace existing rack-and-pinion focusers on Orion reflectors, the Crayford-style focuser provides an unmatched level of focusing smoothness and accuracy. Easy to install, this drop-in upgrade requires no modification of the optical tube.

The deluxe cast-aluminum focuser features super-smooth roller bearing motion designed to completely eliminate image shift through the entire focusing range. It's internally blackened to improve contrast and reduce glare. The machined metal knobs with rubber grips have a quality feel, and a tension control provides precise focusing adjustment. It accepts 2" and 1.25" eyepieces.

It has a racked-in height of 2-11/16" and 1.4" (35mm) of drawtube travel. The base is contoured to fit Orion 8"- to 12"-aperture Dobsonian and other reflector tubes. It replaces 2" rack-and-pinion focusers on Orion reflectors.

NOTE: For 203mm (8") f/4.9 and 254mm (10") f/4.7 Orion reflectors, a #5122 eyepiece adapter is needed to reach focus. For attachmentof a camera body for prime-focus photography, a #5117 T-thread camera adapter is required (sold separately).

*NOTE: The 2" Crayford-Style Focuser is not a drop-in replacement for the Orion SkyQuest XT8 Classic Dobsonian or Orion reflectors smaller than 8" aperture without modification of the telescope. Orion SkyQuest Classic Dobsonians purchased prior to 2002 also require modification in order to use the 2" Crayford focuser (see instruction manual for details).

What's Included With This Item

  • Focuser
  • Screw Pack
  • Allen Wrenches

Key Features

  • Smooth, accurate Crayford-style focuser accepts 2" and 1.25" eyepieces
  • Drop-in replacement upgrade for Orion 2" rack-and-pinion reflector focusers
  • Roller-bearing design for zero image shift through focusing range
  • Includes deluxe machined focus knobs with rubber grips and tension control
  • Lets you easily achieve the sharpest possible focus even at high magnifications
