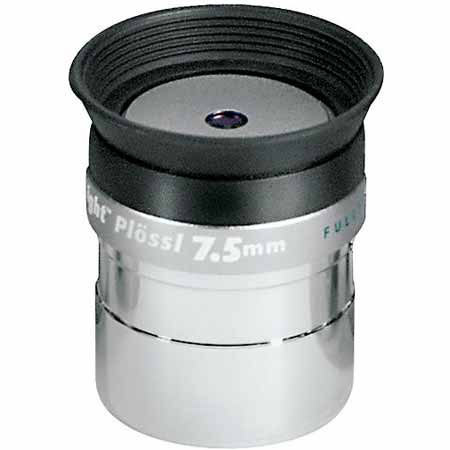

Orion 7.5mm Highlight, 1.25" Plossl Eyepiece with 52 Degree Field of View.

See all Orion items
Closeout

Our Price

$56.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Orion 7.5mm Highlight

The Orion 7.5mm HighLight Plossl Eyepiece features excellent image quality, good eye relief, wide fields of view and affordability. It offers a generous 52° field of view and crisp, sharp images. But this HighLights eyepiece's 4-element optics are not just fully coated or multi-coated, but fully multi-coated. That means that every air-to-glass lens surface is multi-layer coated for the highest possible light transmission and better contrast.

You'll see more of those pinpoint star images and more faint detail in deep-sky objects. In addition, the lens edges are blackened for additional contrast enhancement. The machined aluminum housings of this eyepiece sport a distinctive anodized finish, with grip traction knurled right into the metal. The supple rubber eyeguard shields out extraneous light and folds down for eyeglass wearers. Like all Orion eyepieces, the barrel of this HighLight Plossl is precision-machined to a tolerance of +/- 0.05mm from the nominal specification, so you can be sure of a great fit in your diagonal or focuser.

This HighLight eyepiece's barrel has a setscrew safety recess to reduce the risk of the eyepiece falling out should the locking setscrew become loose. And of course it is internally threaded to accept filters. This eyepiece comes with top and bottom end caps for protection against dirt and stray fingertips.

Orion 7.5mm Highlight Features

  • This 7.5mm eyepiece appeals to skywatchers who want an extra performance edge
  • Offers a generous 52 degree field of view for crisp, sharp images
  • Fully multi-coated 4-element optics for the highest possible light transmission and better contrast
  • Provides the highest degree of color correction available in Plossl eyepieces anywhere

Orion 7.5mm Highlight Specifications

Design
Plossl
Eyepiece focal length
7.5mm
Barrel size
1.25"
Apparent field of view
52.0-deg
Eye relief
4.9mm
Coatings
Fully multi-coated
Number of elements
4
Filter threads
Yes
Parfocal
No
Field stop diameter
5.8mm
Barrel security recess
Yes
Blackened lens edges
Yes
Rubber eyeguards
Yes
Body material
Aluminum
Dimensions
1.5 in. x 1.3 in.
Weight (oz.)
2.09
Warranty
Orion 1 year limited warranty
