Orion

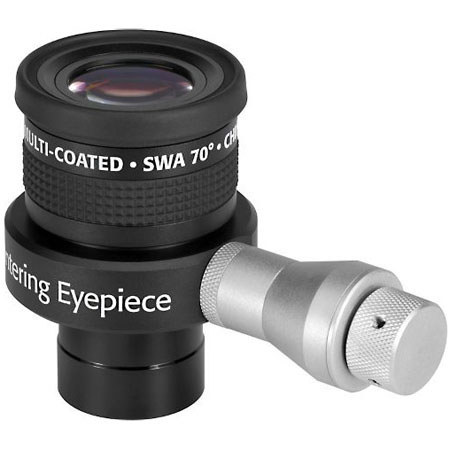

Orion 20mm Illuminated Centering Eyepiece, 1.25", with 70 Degree Angle of View

SKU: ONICEP MFR: 08239
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$99.99
Free Shipping
Qty:

Add to Wishlist In Stock

About this item

The Orion 20mm Illuminated Centering Eyepiece can be used for acquiring and centerign stars for GoTo system alignment, lining up guide stars and/or target objects for astro-imaging, or just testing the accuracy of your tracking system. In comparison to most standard low-focal length illuminated reticle eyepieces, the ICE offers a relatively long 20mm focal length and a wide 70-degree apparent field-of-view, making it easier to locate desirable targets for alignment or guiding. This virtually eliminates the need for swapping out high-power illuminated reticles with lower power eyepieces in order to center objects.

The Illuminated Centering Eyepiece is fully multi-coated (all air-to-glass surfaces) with anti-reflection coatings for bright, crisp views. It features a great 16mm eye relief and the barrel is threaded for Orion 1.25" filters. The illuminator switch doubles as a "dimmer" allowing you to adjust cross-hair brightness to the desired level.

What's Included With This Item

  • Orion Dust Caps
  • Rubber Illuminator Port Plug
  • 2x LR-44 Batteries
  • Orion 1 Year Warranty

Key Features

  • The perfect eyepiece for alignment of GoTo systems
  • An invaluable aid to centering guide stars and/or astro-imaging target objects
  • Illuminated crosshair precisely centered in eyepiece field of view for accurate results
  • Wide 70-deg apparent field of view makes acquiring and centering target objects a breeze
  • Comfortable 16mm eye relief

Technical Specs

Design Proprietary
Eyepiece focal length 20.0mm
Barrel size 1.25"
Apparent field of view 70.0-deg
Eye relief 16.0mm
Coatings Fully Multi-coated
Number of elements 5
Filter threads Yes
Parfocal Yes
Field stop diameter 25.0mm
Barrel security recess No
Blackened lens edges Yes
Rubber eyeguards Yes
Body material Aluminum
Weight (oz.) 7.5
Warranty Orion 1 year warranty
