Onkyo

Onkyo A-9070 Integrated Stereo Amplifier, 140W Per Channel, 4 Analog Inputs

SKU: ONKA9070 MFR: A-9070
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,199.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Onkyo A-9070

The Onkyo A-9070 Integrated Stereo Amplifier offers four discrete modes; integrated amp, power amp, pre-amp and split power/pre-amp to provide great flexibility when incorporating other components into the hi-fi system. Alone, it provides ample power with a parallel push-pull amplification design, three-stage inverted Darlington circuitry, dedicated Wolfson 192kHz/24-bit DACs for symmetrically designed L/R channels and four large 15,000 uF capacitors.

To preserve signal integrity, the unit features DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry). Closed ground-loop circuits and vibration-damping construction combine to produce clear sound across a wide dynamic range. An independent headphone amplifier, a phonograph equalizer and gold-plated audio terminals/speaker posts are evidence of high build quality.

The A-9070 Integrated Stereo Amplifier is for hi-fi newcomers and more seasoned music lovers looking to upgrade their equipment.

Onkyo A-9070 Includes

  • Onkyo A-9070 Integrated Stereo Amplifier
  • Instruction Manual
  • AC Power Cord
  • Remote Controller
  • AAA (R03) Batteries x 2
  • Onkyo Warranty

Onkyo A-9070 Features

  • New DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry) dampens super high frequency distortion
  • Closed ground-loop circuits, HICC (High Instantaneous-Current Capability) and vibration-damping construction combine to produce a startlingly pure sound across a wide dynamic range
  • The unit's four 15,000 uF capacitors keep plenty of power at the ready
  • Efficient parallel push-pull amplification paired with three-stage inverted Darlington circuitry works at reducing distortion to almost nil
  • Separate Wolfson 192kHz/24-bit DACs for both left and right channels improve performance
  • The unit is also equipped with 192kHz/24-bit HD audio playback to handle modern formats
  • Four discrete amplifier modes-integrated amp, power amp, pre-amp and split pre-amp/power amp-offer flexibility when integrating other hi-fi components
  • Details like an independent headphone amplifier, a phonograph equalizer, three digital audio inputs, four analog inputs and gold-plated audio terminals/speaker posts speak of the highest build quality
  • The superb craftsmanship, technological refinement and attention to detail invested in the A-9070 make it worthy of serious consideration for those in the market for top-shelf hi-fi gear

Onkyo A-9070 Specifications

Power Rating 140W/Ch (4 ohms, 20Hz-20 kHz, 0.05%, 2 channels driven, FTC)
Dynamic Power 1 ohms: 450W/Ch
3 ohms: 230W/Ch
8 ohms: 100W/Ch
Frequency Response 10Hz-100kHz/+0 dB, -1 dB (1W, Line) 1Hz-250kHz/+0 dB, -3 dB (1W, 8 ohms)
Damping Factor 130 (1kHz, 8 ohms)
Tone Control Bass: ±10 dB, 80Hz
Treble: ±10 dB, 80Hz
Signal to Noise Ratio 107 dB (Line, IHF-A), 60 dB (Phono MM, IHF-A), 70 dB (Phono MC, IHF-A)
Total Harmonic Distortion (THD) 0.006% (Half Power)
Input Sensitivity Line: 150 mV/47 k-ohms
Phono MM: 2.25 mV/47 k-ohms
Phono MC: 0.18 mV/100 ohms
DAC Wolfson 192kHz/24-Bit DACs
Impedance 4-16 ohms (A or B), 8-16 ohms (A + B)
Output Level Rec Out: 200 mV/2.2 k-ohms
Phono Overload 70 mV (MM, 1kHz, 0.5%)

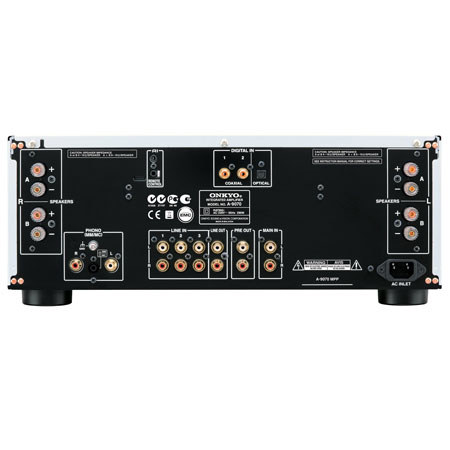

Input Connectors 3 Digital Audio Inputs (1 Optical and 2 Coaxial)
3 Analog Audio Inputs
Output Connectors 1 Analog Audio Output
Power Requirements AC 120 V, 60Hz
Power Consumption 3.3 A
Standby: 0.1W
Dimensions (HxWxD) 17.1 x 6.9 x 16.9" (434 x 175 x 429mm)
Weight 39.9 lb. (18.1kg)
