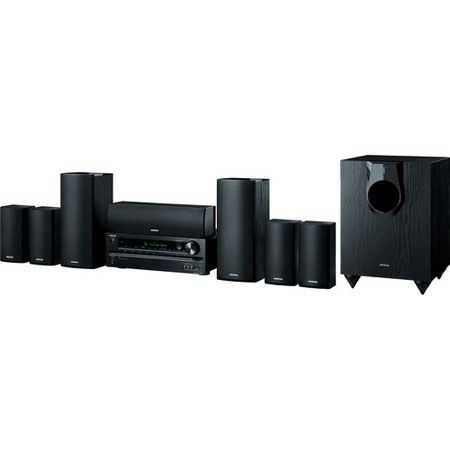

Onkyo HT-S5600 7.1 Channel Home Theater Package with USB for iPod/iPhone

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$549.99 $22 per week
Free Shipping
Add to Wishlist In Stock

Protect your investment

About the Onkyo HT-S5600

Rediscover your favorite movies, music and games in surround sound with the addition of the Onkyo HT-S5600 7.1 Channel Home Theater Package with USB for iPod/iPhone. Duck for cover as Dolby Pro Logic IIz sends bullets whizzing over your head through two front height speakers, or just relax into a soundstage that's balanced and optimized courtesy of Audyssey 2EQ acoustic correction, Dynamic EQ and Dynamic Volume. Four 3D-ready HDMI inputs are provided to connect your gaming consoles and media players and for music, a front-panel USB for lossless and compressed audio from iPod, iPhone, or flash drive. Invest in a UBT-1 adapter to enable Bluetooth wireless audio streaming technology, with a brilliant aptX codec ensuring near CD-quality sound.

The work of speaker selection has been done for you beautifully balanced eight-piece set features a dual-drive center speaker and punchy 120 W down-firing subwoofers. There's even powered Zone 2 output should you wish to distribute audio in another room say, the kitchen or deck. Easy to own, simple to use and packing a huge amount of power for your dollar, there really is no better time to discover the joys of surround-sound entertainment.

Onkyo HT-S5600 Includes

  • Onkyo HT-S5600 7.1 Channel Home Theater
  • Indoor FM Antenna
  • Antenna Isolator
  • AM Loop Antenna
  • Speaker Cable Labels
  • Speaker Set-up Microphone
  • Instruction Manual
  • Quick Start Guide
  • Remote Controller
  • 2 x AA (R6) Batteries
  • Onkyo Warranty

Onkyo HT-S5600 Features

  • HDMI for High Resolution Playback: The supplied receiver features four HDMI inputs to accept hi-res content from your media players and gaming consoles. HDMI enables Dolby TrueHD and DTS-HD Master Audio surround-sound formats and supports 3D video playback
  • HDMI for High Resolution Playback: The single output has an Audio Return Channel, so you can enjoy TV programs with home theater sound
  • Wireless Streaming via Optional Adapter: With an aptX enhancement codec and improved capabilities of Bluetooth Version 3.0, the UBT-1 adapter offers wireless sound quality approaching that of CD audio
  • Wireless Streaming via Optional Adapter: Simply plug it into the USB port to send audio from a range of electronic devices, including phones, tablets and laptop computers
  • Overlaid Menus via HDMI for Quick Adjustment: Touch a button on your remote to overlay menus on the program being viewed. From here, you can gain access to frequently used A/V settings without interruption to your viewing
  • Overlaid Menus via HDMI for Quick Adjustment: The Home Menu button features simple icons for choosing a media source and more detailed menus for system adjustment
  • An Introduction to Onkyo Home Theater Sound: Onkyo's WRAT (Wide Range Amp Technology) enhances audio fidelity across a wide frequency range. WRAT amps feature a discrete output stage for longer life and cooler running
  • An Introduction to Onkyo Home Theater Sound: It includes low-negative feedback amp topology for clear, true-to-life sound; closed ground-loop circuits to reduce noise; and high instantaneous current capability to handle big dynamic gains
  • Dolby Pro Logic IIz Delivers More Enveloping Soundstage: Pro Logic IIz creates a surround-sound experience from any movie or music source-even a stereo one. The system incorporates two Front Height speakers to carry ambient audio effects in a vertical dimension for more realistic action
  • Audyssey 2EQ: Audyssey 2EQ calibrates your speakers and equalizes your system to optimize the sound for the shape of your room. Measuring multiple listening positions, the system applies filters to satellites speakers to create a balanced soundstage
  • Audyssey Dynamic EQ: Dynamic EQ solves the problem of deteriorating sound quality at low volume. It selects the best possible frequency response and surround levels moment-by-moment, resulting in an optimal listening experience at any volume
  • Audyssey Dynamic Volume: Audyssey Dynamic Volume automatically compensates for volume fluctuations in different audio content-for example, during noisy commercial breaks-and adjusts the volume in real time
  • Good Quality Digital-to-Analog Converter: This receiver employs a 192 kHz/24-bit TI Burr-Brown DAC for excellent dynamic performance and improved tolerance to clock jitter, which translates as clearer, more expressive sound from your speakers
  • Clearer Sound with Direct-Digital USB: This receiver features a front-panel USB port to connect iPod/iPhone and mass storage devices loaded with music in a variety of digital formats
  • Clearer Sound with Direct-Digital USB: The connection carries signals from your portable device to the receiver in digital form, giving a noticeable boost to audio quality
  • Quality Speakers for Quality Sound: A carefully matched Onkyo speaker set delivers clear, dynamic audio reproduction. Solid two-way front speakers feature a 12 cm OMF woofer and a balanced-dome tweeter for clean, well-separated highs
  • Quality Speakers for Quality Sound: The center speaker boasts twin 8 cm woofers and dome tweeter to boost the audibility of dialog in movies and TV, while an efficient 120 W subwoofer rounds out the package
  • Multi-Zone Powered Audio and Zone 2 Line-Outs: This receiver features Powered Zone 2 speaker terminals and Zone 2 line-outs. This means you can drive audio in another room equipped with stereo speakers-for example, in an adjoining room, or on the deck, or in the kitchen
  • More Realistic Action with Four Different Gaming Modes: Select from four optimized audio modes to match your gaming content for a realistic surround sound experience. Rock, Sports, Action and RPG game modes bring out the best in any soundtrack, from subtle ambient effects to thundering explosions

Onkyo HT-S5600 Specifications

Amplifier: Power Output Front L/R: 160 W/Ch (6 Ohm, 1 kHz, 1 Channel Driven, JEITA)
130 W/Ch (6 Ohm, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Center: 160 W (6 Ohm, 1 kHz, 1 Channel Driven, JEITA)
130 W (6 Ohm, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Surround L/R: 160 W/Ch (6 Ohm, 1 kHz, 1 Channel Driven, JEITA)
130 W/Ch (6 Ohm, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Surround Back: L/R 160 W/Ch (6 Ohm, 1 kHz, 1 Channel Driven, JEITA)
130 W/Ch (6 Ohm, 1 kHz, 1% THD, 1 Channel Driven, IEC)
Amplifier: Dynamic Power 180 W (3 Ohm, Front)
160 W (4 Ohm, Front)
100 W (8 Ohm, Front)
Amplifier: THD+N 0.08% (20 Hz-20 kHz, Half Power)
Amplifier: Damping Factor 60 (Front, 1 kHz, 8 Ohm)
Amplifier: IP Sensitivity & Impedance 200 mV/47 kOhm (Line)
Amplifier: RCA O/P Level & Impedance 200 mV/2.2 kOhm (Rec Out)
Amplifier: Frequency Response 5 Hz-100 kHz/+1 dB, -3 dB (DSP Bypass)
Amplifier: Tone Control ±10 dB, 20 Hz (Bass)
±10 dB, 20 kHz (Treble)
Amplifier: Signal-to-Noise Ratio 100 dB (Line, IHF-A)
Amplifier: Speaker Impedance 6 Ohm-16 Ohm
Video: Video Frequency Response 5 Hz-100 MHz/+0 dB, -3 dB
Tuner: Tuning Frequency Range FM: 87.5 MHz-108 MHz
AM: 530 kHz-1,710 kHz
Tuner: FM/AM Preset Memory 40 Stations
Speaker: Type Front: 2-Way, Bass Reflex
Center: 2-Way, Bass Reflex
Surround: Full-Range, Acoustic-Suspension
Surround Back: Full-Range, Acoustic-Suspension
Subwoofer: Bass Reflex, Powered
Speaker: Drivers Front: 12 cm OMF Diaphragm Woofer
2.5 cm Balanced-Dome Tweeter
Center: 8 cm Cone Woofer x 2
2.5 cm Balanced-Dome Tweeter
Surround: 8 cm Cone
Surround Back 8 cm Cone
Subwoofer 25 cm Cone
Speaker: Frequency Response Front: 55 Hz-50 kHz
Center: 65 Hz-50 kHz
Surround: 80 Hz-20 kHz
Surround Back: 80 Hz-20 kHz
Subwoofer: 25 Hz-150 Hz
Speaker: Output Sound Pressure Level Front 84.5 dB/W/m
Center 86 dB/W/m
Surround 81 dB/W/m
Surround Back 81 dB/W/m
Speaker: Max. Input Power Front/Center/Surround/Surround Back
130 W
Speaker: Rated Output Power Subwoofer: 120 W (Minimum Continuous Power, 4 Ohm, 100 Hz, 1%, IEC)
Speaker: Nominal Impedance Front/Center/Surround/Surround Back/6 Ohm
Speaker: Input Sensitivity/Impedance Subwoofer: 540 mV/20 kOhm
Power Supply Power Supply: AC 120V, 60 Hz
Power Consumption: 5.0 A
Dimensions (WxHxD) Front: 155x378x169mm (6.10x14.88x6.65")
Center: 420x115x119mm (16.53x4.52x4.68")
Surround: 115x230x96mm (4.52x9.05x9.05")
Surround Back: 115x230x96mm (4.52x9.05x3.77")
Subwoofer: 317.5x468x398mm (12.5x18.42x15.66")
435x150x328mm (17.12x5.90x12.91")
Weight Front: 2.6kg (5.73lbs)
Center: 2.4kg (5.29lbs)
Surround: 1.0kg (2.20lbs)
Surround Back: 1.0kg (2.20lbs)
Subwoofer: 9.1kg (20.06lbs)
8.3kg (18.29lbs)
