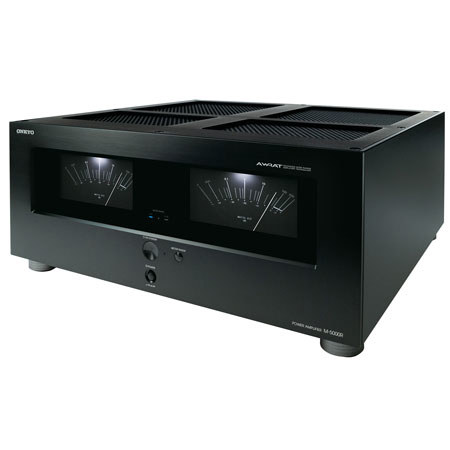

Onkyo M-5000R Power Amplifier, Frequency Response 10Hz-100kHz

See all Onkyo items
SKU: ONKM5000R MFR: M-5000R

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $79.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $114.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $322.95

Our Price

$2,499.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Onkyo M-5000R

Music, when you hear it in all its glory, has the power to lift the spirits and transport you into another realm. Driving you there in audiophile style is Onkyo's newest hi-fi power amplifier, the M-5000R. Signal quality on the M-5000R is meticulously preserved by new AWRAT technology, while three-stage inverted Darlington circuitry provides extremely efficient power output. Massive twin toroidal transformers and four 27,000 uF capacitors work to stabilize the power supply and current, respectively. And to minimize errors in stereophonic playback, the amplifier incorporates a totally symmetrical alignment of power devices for left and right channels.

Onkyo M-5000R Features

  • AWRAT (Advanced Wide Range Amplifier Technology)
  • Quad Push-Pull Amplification Design with Three-Stage Inverted Darlington Circuitry
  • Two Massive Toroidal Transformers with Sub Transformer
  • Four Large 27,000 uF Capacitors
  • Balanced XLR Input for Monaural Amplification in BTL Mode

Onkyo M-5000R Specifications

Power Output (2 ch stereo)
4 ohm: 150 W/Ch (20Hz - 20kHz, 0.05%, 2ch driven, FTC)
4 ohm: 170 W/Ch (1kHz, 1%, 2ch driven, FTC)
8 ohm: 80 W/ch (20Hz - 20kHz, 0.05%, 2ch driven, FTC)
8 ohm: 100 W/Ch (1kHz, 1%, 2ch driven, FTC)
Power Output (BTL mono)
6 ohm: 220 W/Ch (20Hz - 20kHz, 0.05%, 1ch driven, FTC)
6 ohm: 250 W/Ch (1kHz, 1%, 1ch driven, FTC)
8 ohm: 180 W/Ch (20Hz - 20kHz, 0.05%, 1ch driven, FTC)
8 ohm: 200 W/Ch (1kHz, 1%, 1ch driven, FTC)
Dynamic Power
1 ohm: 460 W
2 ohm: 320 W
3 ohm: 245 W
4 ohm: 196 W
6 ohm: 142 W
8 ohm: 110 W
THD + N
0.005% (1kHz, Half power); 0.02% (20Hz-20kHz, Half power)
Input Sensitivity and Impedance
1.4V/10 k-ohms (BTL); 700mV/10k-ohms (RCA)
Frequency Response
10Hz-100kHz/0db, -1db (1 W); 1Hz-250kHz/-3db, (1 W/8ohm)
Signal to Noise Ratio
110 db (RCA, IHF-A)
Speaker Impedance
RCA Stereo: 4 ohms - 16 ohms
XLR mono: 6 ohms - 16 ohms (BTL)
Power Supply
AC 120V, 60 Hz
Power Consumption
8.4 A
Dimensions
435 x 187.5 x 432.5mm/17.12 x 7.38 x 17.02"
Weight
51.8 lbs /23.5 kg
