Onkyo

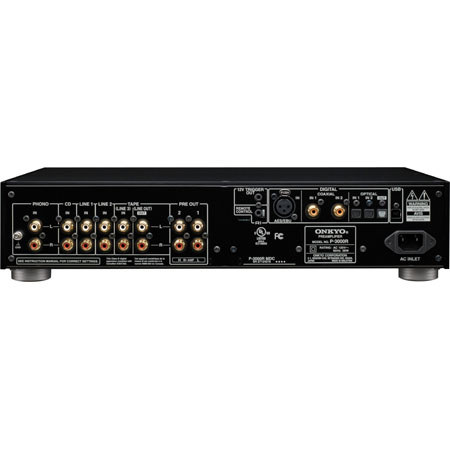

Onkyo P-3000R 2 Channel Pre-Amplifier, Frequency Response 5 Hz-100 kHz

SKU: ONKP3000R MFR: P-3000R
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$1,699.00
Free Shipping
Qty:

Add to Wishlist

Protect your investment

About the Onkyo P-3000R

Despite being at the cutting edge of the burgeoning home theater market, Onkyo has never forgotten its roots in pure hi-fi audio. With the P-3000R, Onkyo present a streamlined two-channel pre-amplifier that packs a treasure trove of stunning audio technology.

The P-3000R handles both analog and digital sources, with connectivity options including AES/EBU digital connectors and a USB device for PC audio. Separate 192 kHz/32-bit TI Burr-Brown DACs for each channel ensure accurate digital-to-analog conversion. Meanwhile, to minimize interference and maintain signal quality, the P-3000R employs noise-reducing DIDRC technology, a vibration-resistant chassis design and independent amplifier circuitry. Thanks to the P-3000R's bi-amping capability, you also have greater flexibility in how you set up your system. As always, the job of all this advanced hardware is to bring you closer to your music and let you feel the unique resonance of each individual instrument.

Onkyo P-3000R Includes

  • Onkyo P-3000R 2 Channel Pre-Amplifier
  • Instruction Manual
  • AC Power Cord
  • Remote controller
  • AA (R03) Batteries x 2
  • Onkyo Warranty

Onkyo P-3000R Features

  • DIDRC (Dynamic Intermodulation Distortion Reduction Circuitry)
  • PLL (Phase Locked Loop) Ultra-Low Jitter Technology
  • Separate TI Burr-Brown 192 kHz/32-Bit DACs (PCM1795 x 2) for L/R Channels
  • Amphenol AES/EBU Balanced Digital Input
  • USB Device (C-Media CM6631) for 192 kHz/32-Bit HD Audio from P

Onkyo P-3000R Specifications

THD + N 0.005% (20 Hz-20 kHz, Power Rated)
I/P Sensitivity & Impedance: Unbalance) 200 mV/47 k-ohms (Line); 2.7 mV/47 k-ohms (Phono MM)
Rated RCA Output Level and Impedance 1 V/330 ohms (Pre out)
Maximum RCA Output Level & Impedance 5.0 V/330 ohms (Pre out)
Phono Overload 80 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz-100 kHz/+0 dB, -3 dB (Line)
Tone Control Characteristics ±8 dB, 50 Hz (BASS); ±8 dB, 20 kHz (TREBLE)
Signal to Noise Ratio 110 dB (Direct, IHF-A); 80 dB (Phono, IHF-A)
Digital Inputs Optical: 2; Coaxial: 2; 2ch PCM; Digital Input Sampling Rate: 32 kHz/44.1 kHz/48 kHz/88.2 kHz/96 kHz; compaitible (OPT); 32 kHz/44.1 kHz/48 kHz/88.2 kHz/96 kHz/; 176.4 kHz/192 kHz compatible; (COAX, AES/EBU); 44.1 kHz/48 kHz/88.2 kHz/96 kHz/192 kHz compatible; (USB)
Analog Stereo Inputs PHONO, CD, LINE 1, LINE 2, TAPE (LINE 3)
Balanced Input AES/EBU (DIGITAL)
Digital Outputs Optical: 1;Digital Output Sampling Rate:;32 kHz/44.1 kHz/48 kHz/88.2 kHz/96 kHz; compatible (OPT)
Analog Stereo Outputs TAPE (LINE)
Pre Outputs 2
Phones Outputs 1 (6.3 Dia)
12 V Trigger Output Yes
RI Outputs Yes
PC Interface Outputs USB
Power Supply AC 120V, 60 Hz
Power Consumption 26 W
Dimensions 435 x 99 x 333.1 mm/17.12 x 3.89 x 13.11"
Weight 24.3 lbs /11.0 kg
