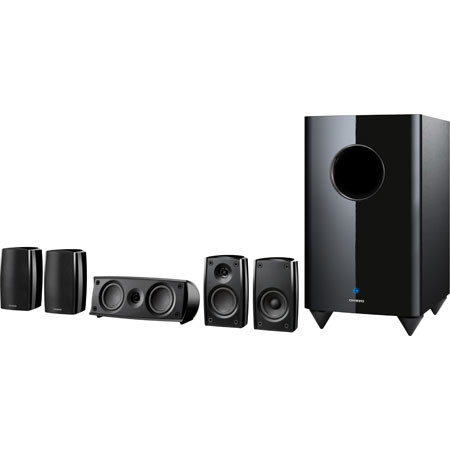

Onkyo SKS-HT690 5.1 Surround Sound Home Theater System, 2-Way Front/Center Speakers, 1-Way Surround Satellites, 10" Down-Firing Subwoofer

See all Onkyo items
SKU: ONKSKSHT690 MFR: SKS-HT690

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $24.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $39.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $84.95

Our Price

$299.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Onkyo SKS-HT690

The Onkyo SKS-HT690 5.1 Surround Sound Home Theater System provides realistic, immersive sound in a compact and affordable package. The system has an active subwoofer with a 10" down-firing driver. This design allows you to place the sub in a corner or near a wall without worrying about interference from the wall. The sub has a bass-reflex cabinet design, which helps to extend low frequency response and reduce compression.

The front speakers each contain a 3.25" woofer and a 1" balanced dome tweeter, while the center speaker has a pair of 3.25" woofers and a 1" balanced dome tweeter. This provides a wide frequency response with excellent intelligibility for clear vocals, music and sound effects. The rear speakers each have a 3.25" woofer to provide full-range audio for detailed surround effects.

Onkyo SKS-HT690 Features

  • Compact design and glossy black styling matches virtually any decor
  • True 5.1 surround sound brings movies and music to life
  • The cabinets are built from a high-density resin that provides excellent rigidity and resistance to vibration. The subtle front curves and rounded rear sections counteract standing waves. The result is clear, realistic audio
  • The active subwoofer has a 10" down-firing driver. This design allows you to place the sub in a corner or near a wall without worrying about interference from the wall
  • The sub has a bass-reflex cabinet design, which helps to extend low frequency response and reduce compression
  • The front speakers each contain a 3.25" woofer and a 1" balanced dome tweeter, while the center speaker has a pair of 3.25" woofers and a 1" balanced dome tweeter. This provides a wide frequency response with excellent intelligibility for clear vocals, music and sound effects
  • The rear speakers each have a 3.25" woofer to provide full-range audio for detailed surround effects

Onkyo SKS-HT690 Specifications

Front Speaker: Type
2-Way, Acoustic Suspension
Front Speaker: Woofer
3.25" (83mm) Cone Woofer
Front Speaker: Tweeter
1" (25mm) Balanced Dome Tweeter
Front Speaker: Frequency Response
70Hz - 50kHz
Front Speaker: Maximum Power
130W
Front Speaker: Impedance
6 Ohms
Central Speaker: Type
2-Way, Acoustic Suspension
Central Speaker: Woofer
2 x 3.25" (83mm) Cone Woofers
Central Speaker: Tweeter
1" (25mm) Balanced Dome Tweeter
Central Speaker: Frequency Response
70Hz - 50kHz
Central Speaker: Maximum Power
130W
Central Speaker: Impedance
6 Ohms
Surround Speaker: Type
1-Way, Full-Range, Acoustic Suspension
Surround Speaker: Woofer
3.25" (83mm) Cone Woofer
Surround Speaker: Frequency Response
80Hz - 20kHz
Surround Speaker: Maximum Power
130W
Surround Speaker: Impedance
6 Ohms
Subwoofer: Type
Active, Bass-Reflex, Down-Firing
Subwoofer: Impedance
4 Ohms
Subwoofer: Input Impedance
20 kOhms
Subwoofer: Maximum Power
230W
Subwoofer: Frequency Response
25-150Hz
Subwoofer: Sensitivity
550m/V
Subwoofer: Driver
10" (254mm) Cone Woofer
Dimensions (WxHxD)
Front Speaker: 4 x 6.7 x 4.1" (102 x 170 x 104mm) Each
Center Speaker: 10.9 x 4.3 x 4.3" (277 x 109 x 109mm)
Surround Speaker: 4 x 6.7 x 4.1" (102 x 170 x 104mm) Each
Subwoofer: 10.8 x 19.9 x 16.2" (274 x 505 x 411mm)
Weight
Front Speaker: 2.2 lbs (1kg)
Center Speaker: 3.7 lbs (1.7kg)
Surround Speaker: 2 lbs (0.9kg) Each
Subwoofer: 25.6 lbs (11.6kg)
