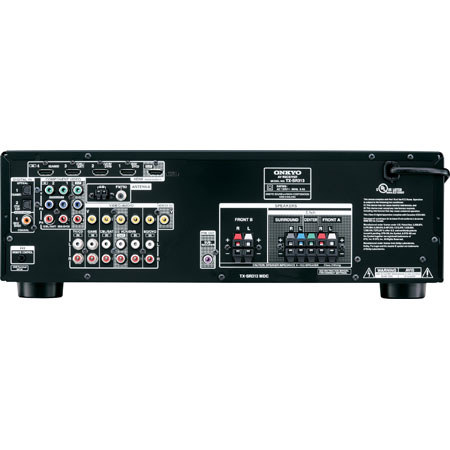

Onkyo TX-SR313 5.1-Channel 3-D Ready Home Theater Receiver, 100 dB (Line, IHF-A) Frequency Response

SKU: ONKTXSR313 MFR: TX-SR313
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$199.00 $8 per week
Free Expedited Shipping
Qty:
Add to Wishlist In Stock

Protect your investment

About the Onkyo TX-SR313

The Onkyo TX-SR313 5.1-Channel 3-D Ready Home Theater Receiver is an array of features into a compact and stylish cabinet-all designed to perfect audio performance and seamlessly integrate your A/V components into one intelligent and powerful system. Four HDMI inputs and one output provide connectivity for your 3D TV, gaming consoles and BD player, while a USB port offers a clean digital link to your iPod/iPhone or flash memory drive. An HDMI-linked interactive on-screen display makes set-up and mid-program adjustment easy.

Naturally, the AVR decodes a range of high-definition codec's such as Dolby True HD and DTS-HD Master Audio. But it's the sound that really sets Onkyo apart and you can rest assured that with the TX-SR313, you're getting the precision build, power and fidelity that you might expect from a more expensive component.

Onkyo TX-SR313 Includes

  • Onkyo TX-SR313 5.1-Channel 3-D Ready Home Theater Receiver
  • Indoor FM antenna
  • AM Loop Antenna
  • Power Cord
  • Speaker Cable labels
  • Speaker Setup Microphone
  • Remote Controller (RC-799M)
  • Two Batteries (AA/R6)
  • Quick Start Guide
  • Onkyo 2 Years Parts and Labor Limited Warranty

Summary of Customer Reviews

(1)
Customers most agreed on the following attributes:
Reviewer Profile:
Audiophile (1) , Movie enthusiast (1) , Tech savvy (1)

Onkyo TX-SR313 Features

  • Four1080p capable HDMI inputs (V1.4a)
  • 4 DSP Gaming Modes: Rock, Sports, Action and Role Playing
  • New On-screen display via HDMI
  • Burr-Brown DACs for improved jitter and clearer sound

Onkyo TX-SR313 Specifications

Front L/R 65 W/Ch
Center 65 W
Surround L/R 65 W/Ch
Dynamic Power (Front) 3 ohm: 160
4 ohm: 125
8 ohm: 85
THD+N 0.08% (20 Hz-20 kHz, Half Power)
Damping Factor (1 kHz, 8 ohm) 60
CD and TAPE Play 200 mV, 47 k ohm
Output Level and Impedance Tape Rec: 200 mV, 470 ohm
Pre Out: 1.0 V, 470 ohm
Frequency Response 20 Hz-50 KHz
S/N Ratio 100 dB (Line, IHF-A)
CD/TAPE 100 dB (IHF-A, 0.5 V input)
Tone Controls Bass: +/- 10 dB at 50 Hz
Treble: +/- 10 dB at 20 kHz
Usable Sensitivity FM Mono: 11.2 dBf, 1.0 uV (75 ohm IHF)
FM Stereo: 17.2 dBf, 2.0 uV (75 ohm IHF)
AM: 30 uV
Tuner: S/N Ratio FM Mono: 76 dB (IHF-A)
FM Stereo: 70 dB (IHF-A)
AM: 40 dB
THD FM Mono: 0.2 %
FM Stereo: 0.3 %
AM: 0.7 %
FM Stereo Separation 45 dB at 1 kHz,30 dB at 100 Hz-10 kHz
Dimensions (W x H x D) 17-1/8 x 5-7/8 x 12-1/2" (435 x 149.23 x 317.5 cm)
Weight 16.8 lbs (7.62 kg)
