Orion

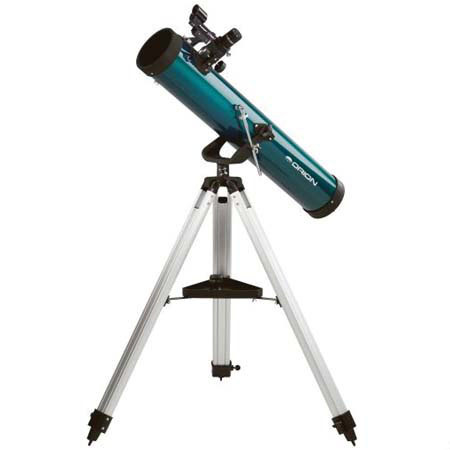

Orion SpaceProbe 3" Altazimuth Reflector Telescope Kit, with Eyepieces, Tripod & Yoke Mount and Software.
Mfr. Part: 09883 SKU: ONS3A
enlarge image
|
|
 |
| Due to Manufacturer Restrictions, This Item can NOT be Shipped to California. |
|
|
Item Includes
Orion Optical Tube Assembly - 25mm Explorer II Eyepiece (1.25") - 10mm Explorer II Eyepiece (1.25") - Tripod Legs - Altazimuth Yoke Mount - EZ Finder II Finder Scope - Finder Scope Bracket - Collimation Cap - Tripod Accessory Tray - Dust Cap - Altitude Micro-motion Control Rod and Thumbwheel - Tripod Attachment Screws - Wing Nuts - Washers - Accessory Tray Attachment Wing Screws - Leg Lock Knobs - Yoke Knobs - Starry Night Special Edition Software - Orion 1 Year Limited Warranty
|
Description
The Orion SpaceProbe 3 Altazimuth Reflector Telescope is highly portable and uncomplicated scope, great for all-around astronomical observing. SpaceProbe 3 reflector telescope makes the night sky's treasures accessible right from the backyard. It reveals Saturn's picturesque rings, Jupiter's moons and the incredibly cratered terrain of the Moon's surface. It's 3"-diameter (76mm) primary mirror also gathers enough light to snare the faint glows of some very exotic star clusters and nebulas.
The aluminum Newtonian optical tube features a 1.25" rack-and-pinion focuser to ensure sharp images in the eyepiece. Speaking of which, each scope now comes with two interchangeable Explorer II eyepieces (1.25")-25mm (28x) and 10mm (70x)-as well as a wide-field, EZ Finder II to aid in locating objects. An adjustable-height tripod with accessory tray and aluminum legs is also included standard. The SpaceProbe 3 Altaz comes with an Altazimuth mount. The altazimuth mount is lightweight and easy to use with simple up/down left/right motions. |
Features
 |
Great for all-around astronomical observing, great beginner's telescope |
|
76mm aperture and 700mm focal length for wonderful views of the moon, planets and even some nebulas |
|
Includes a sturdy tripod and an altazimuth mount for simple horizontal and vertical movement |
|
Includes two eyepieces, finder scope, focuser, collimation cap and astronomy software |
Specifications
| Use | Astronomy |
| User level | Beginner |
| Optical design | Reflector |
| Optical diameter | 76mm |
| Focal length | 700mm |
| Focal ratio | f/9.2 |
| Optics type | Spherical |
| Glass material | Soda-lime plate |
| Eyepieces included | Explorer II 25.0mm, 10.0mm |
| Magnification with included eyepieces | 28x, 70x |
| Resolving power | 1.52arc sec |
| Lowest useful magnification | 18x |
| Highest useful magnification | 95x |
| Limiting stellar magnitude | 12.1 |
| Optical quality | Diffraction limited |
| Finder scope | EZ Finder II |
| Focuser | 1.25" Rack-and-pinion |
| Secondary mirror obstruction | 20mm |
| Secondary mirror obstruction | 26% by diameter |
| Secondary mirror obstruction by area | 7% |
| Mirror coatings/over-coatings | Aluminum & Silicon Dioxide |
| Mount style | Altazimuth |
| Astro-imaging capability | Simple moon shots |
| Computerized compatibility | No |
| Bearing material | Friction bearings |
| Latitude range | 14-70 |
| Setting circles | Yes |
| Tube material | Steel |
| Tripod material | Aluminum |
| Additional included accessories | Altitude fine adjustment |
| Length of optical tube | 27.0 in |
| Weight, optical tube | 4.0 lbs |
| Weight, mount/tripod | 4.4 lbs |
| Weight, fully assembled | 8.4 lbs |
| Warranty | Orion 1 year limited warranty |
| | |
|
|
|
|
|
|
