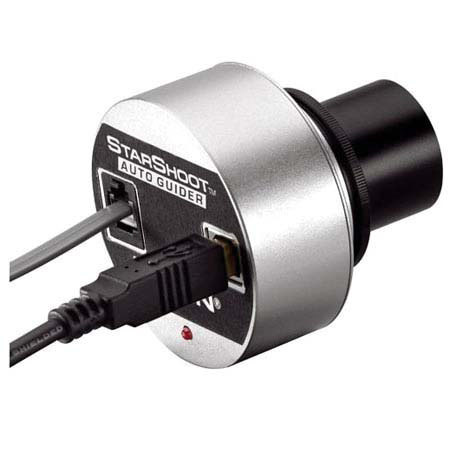

Orion StarShoot AutoGuider with Micron MT9M001 1.3 MP Imaging Sensor, 5.2x5.2 Pixel Size
Mfr. Part: 52064 SKU: ONSSAG
enlarge image
|
|
 |
| Due to Manufacturer Restrictions, This Item can NOT be Shipped to California. |
|
|
Item Includes
Orion StarShoot Autoguider - 1.25" Nosepiece (Threaded for Filters) - 10' USB Cable - 6' RJ-12 Cable - Software CD-Rom - Orion 1 Year Limited Warranty
|
Description
The Orion StarShoot AutoGuider provides a user-friendly, dedicated autoguiding system for long-exposure astrophotography. It's compatible with virtually any mount equipped with an autoguider port and comes with the software and cables needed to work right out of the box. The AutoGuider's sensor is a high-resolution, 1/2" format 1.3-megapixel CMOS monochrome chip, with 5.2µ x 5.2µ pixels for highly accurate guiding.
That high accuracy due to the small pixel size means you can use the AutoGuider with smaller, less expensive guide scopes than is possible with other guide cameras (such as the now-discontinued ST-4). The chip resides in a super-compact, anodized aluminum housing that measures just 2.5" wide by 2.35" long and weighs a mere 4.4 oz. It has a 1.25" nosepiece that can be removed to access a T-thread interface. And the AutoGuider's short inward focus requirement of only 15mm from a typical 1.25" Plossl eyepiece makes it compatible with virtually any telescope.
The AutoGuider's incredible ease of use will appeal to beginning and experienced astrophotographers alike. The included software requires no previous knowledge of autoguiding. It offers automatic calibration and guiding with literally a single mouse click. The camera is powered via your computer's high-speed USB 2.0 connection with the included 10' USB cable; no other power source is needed. A 6' RJ-12 cable is also included to connect the AutoGuider to the mount without the need for an additional RS-232 adapter. With the StarShoot AutoGuider, precision autoguiding for deep-sky photography is now easier and more economical than ever. It requires PC running Windows 2000, XP or Vista 32-bit. |
Features
 |
Finally, an easy-to-use, affordable autoguider for long-exposure astrophotography |
|
Uses a 1/2" format 1.3MP CMOS chip, with 5.2 x 5.2 micron pixels for highly accurate guiding |
|
Compact housing measures just 2.5" x 2.35" and weighs a mere 4.4 oz. |
|
Included software offers automatic calibration and guiding with a single mouse click |
|
Powered via your computer's high-speed USB 2.0 connection; no other power source needed |
|
ST4 compatible autoguide output jack on camera body |
Specifications
| Imaging sensor | Micron MT9M001 |
| Imaging sensor size | 6.66mm x 5.32mm |
| Pixel array | 1280 x 1024 (1,310,720 total) |
| Pixel size | 5.2 x 5.2 |
| Imaging chip | Monochrome |
| Video frame rate | 15 frames/second at full resolution |
| Autoguider capability | Yes |
| Exposure range | 0.05 second to 10 second |
| A/D conversion | 8 bit |
| Thermoelectric cooling | No |
| IR filter | No |
| Mounting | 1.25" nozzle or t-thread |
| USB connection | High-speed 2.0 |
| Software compatibility | Windows XP/Vista 32-bit |
| Weight (oz.) | 4.4 |
| Warranty | Orion 1 year limited warranty |
| | |
|
|
|
|
|
|
