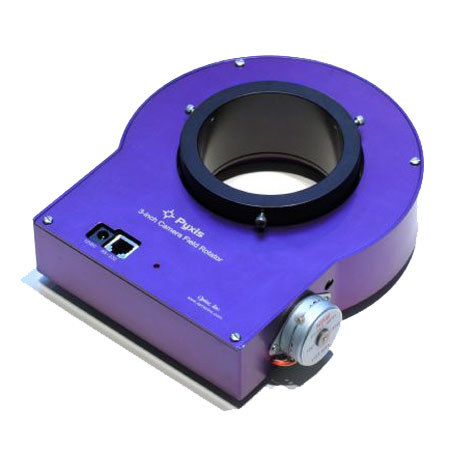

Optec Pyxis 3" I.D. Camera Field Rotator

The Optec Pyxis 3-inch Camera Field Rotator has a full 3 inches of clear aperture and is designed to hold large instrument packages without flexure or wobble. A 6-inch bronze worm gear and stainless worm rotate the center tube with a resolution of 0.01875 degree per step from the stepper motor. The operating software is very similar to the smaller Pyxis so that existing third party software is compatible. De-rotation of the field for long exposure images with alt-azimuth mounted telescope and rotation of the guide chip for SBIG camera to a suitable bright guide star are the two primary uses of this instrument. Power requirements and other operating conditions are similar to the 2-inch Pyxis model.

This model is large and heavy, and is intended for larger telescopes on observatory caliber mountings. The 2.4-inch thickness warrants telescopes that can accommodate this increase in the back focus distance. It uses the same telescope mounts and camera side adapters as the TCF-S3 - Optec's new 3-inch temperature compensating focuser.

The unit can only be controlled by a PC computer running the Optec PYXIS.exe control software or third party compatible software. Manual control is not possible. A flat wire serial cable is available for connection to a standard RS-232 interface COM port at 19.2K baud. Standard lengths and custom lengths up to 100 feet are possible. Cables and COM port adapters need to be ordered separately. A 12 VDC regulated power supply is included with 6-feet of low voltage cable terminating in a 2.5 mm power jack. The Optec PYXIS.exe (version 1.20 is required and available by 10-24-06) control software is included with the unit on a CD disk.
