Opticstar DS-145C ICE Color CCD Camera, 1.4MP, 2/3" Sony ICX285AQ 1434 x 1050 Pixels Resolution, 4:3 Sensor Aspect Ratio

See all Opticstar items
SKU: OS145C MFR: OSRDS145CI
Made in USA

Our Price

$1,709.05
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Opticstar DS-145C

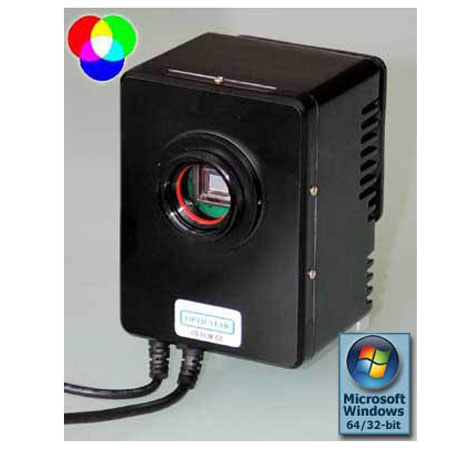

The Opticstar DS-145C ICE Color CCD Camera with fan-assist is a native 1.4 mega-pixel 16-bit greyscale CCD imager with a large and highly sensitive EXview Sony HAD Chip of 2/3" diagonal (ICX285AQ). The DS145C ICE uses the all new Z-MAX high-speed platform which adds a host of desirable features to this high quality camera.

Unlike other cameras in its class, gain support, noise reduction and black level are all implemented in the camera hardware and applied to the signal prior to the data been sent to the PC, thus ensuring the highest quality signal and brightest image possible at typical speeds of 3fps @ 1434x1050 in uncompressed RAW format.

Opticstar DS-145C Features

  • Hardware Gain: The camera's advanced features can easily be demonstrated in StarView. The StarView mode is a real time video mode with exposure times up to 10 seconds per frame. There is no need to use any bias frames or perform any color synthesis
  • High Quality Construction: The camera electronics and sensor are housed inside a high quality aluminium body that entirely seals the sensor and on-board electronics from the outside environment
  • Nebulosity Software: Nebulosity is designed to be a powerful, but simple to use camera control and image processing application for Opticstar CCD cameras
  • Auto-Guiding: The Opticstar deep sky cameras (DS-xxx) can be used in conjunction with the Opticstar AG-130M COOLAIR Auto-guiding Kit to deliver a complete imaging solution

Opticstar DS-145C Specifications

Sensor type
Sony ICX285AQ CCD, progressive scan
Sensor size
10.2mm x 8.3mm (2/3")
Sensor aspect ratio
4:3
Resolution
1.4 Megapixels, 1434 x 1050 pixels
Pixel size
6.45um x 6.45um
Binning modes
1x1, 2x2, 4x4, (all in color)
Preview mode
1434x1050 at 3 frames per second
On Board Functions
Gain x1024, Noise Reduction, Black Level
Full Well Capacity
18000 e-
Dark Current
0.15e-/pix/s (cooled)
Data output
16-bit and 8-bit
Readout speed
20, 10MHz
Exposure time
user defined from 3ms to over 1 hour.
Raw 16-bit image transfer
0.5 second approximately at 1434x1050
Cooling
Peltier cooled with fan assist, up to 30deg.C below ambient
Optical interface
C-mount
Computer interface
USB 2.0
Housing
Robust all metal case and sealed electronics
Dimensions (WxHxD)
71x95x86.7mm / 180.34x241.3x220.21cm
Weight
730g / 25.74 oz
