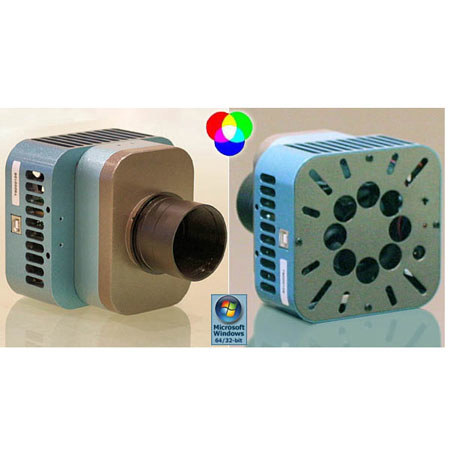

Opticstar DS-616C Color CCD Camera, 6.1MP, 1.8" Sony ICX413AQ Interline, 3032 W x 2014 H Resolution

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$1,799.00 List Price

Our Price

Free Shipping

Add to Wishlist In Stock

About the Opticstar DS-616C

The Opticstar DS-616C Color CCD Camera XL is in a class of its own with 50% higher sensitivity in real-world applications (100% maximum) than other cameras using the same Sony CCD due to its hardware gain and outstanding hardware noise suppression, both features implemented in the camera hardware which is the only way to deliver the additional performance. Black Level is also implemented in hardware and is user set, it helps to effectively reduce dark noise levels prior to the data being sent to the computer.

The new Opticstar XL cameras use precision machined heavy duty alloy cases that provide unparalleled solidity and support sensor orthogonality. The camera uses long-life, high-quality seals and offers 99%+ camera window transparency. A substantial heat-sink (over five to ten times the mass of the typical heat-sink in comparable cameras) rapidly draws the heat away from the sensor via a powerful Peltier thermocouple for superior performance. This heat is then rapidly dissipated into the atmosphere with the assistance of a fan thus bringing noise levels down to an absolute minimum.

The huge Sony 1.8" format CCD sensor offers an unusually wide field of view (-13 times the sensor area of a 1/2" sensor typically found in top of the range astronomy video cameras) allowing exceptionally large targets like the Andromeda Galaxy to approximately fit on the DS-616 XL sensor at 1000 mm focal length, i.e. 8" f5 telescope. Focus and preview modes run at a maximum 1 frame per second (at 6 mega-pixels) which is several times faster than other single shot astronomy cameras, this makes accurate focusing markedly easier to achieve.

The proprietary StarView mode enables semi real time viewing of deep sky objects in color with an 1600% sensitivity boost with exposure times at up to 10 seconds, a very useful feature not available to other manufacturers' single shot cameras. As with all color Opticstar CCD cameras, binning modes are supported at 2 x 2 and 4 x 4 in full color.

The DS-616C XL offers the functionality of single shot, long exposure large sensor cooled camera with features found in long exposure video cameras while delivering superior performance. Coupled with the real-time viewing ability, the Opticstar DS-616C XL presents the ultimate astronomy cooled color camera.

Bundled with the camera, is a main power supply unit to power the thermo-electric cooling sub-system, hard carry case and adapters to attach the camera to the telescope. The camera also includes the Opticstar View camera control software, Nebulosity v2 camera control and image processing software as well as drivers for MaxImDL and Astroart. The camera is ready to use out of the box, all you need is a telescope.

Opticstar DS-616C Includes

  • Opticstar DS-616C Color CCD Camera
  • 2" Nosepiece to Attach to Telescope
  • T-Threaded Ring Adapters to Attach SLR Type Lenses
  • 1.8m USB Cable
  • High Quality Regulated PSU (2A/DC:12V /AC:100-240V for Europe, USA)
  • Software on CD
  • Printed Set-up Guide
  • Opticstar Warranty

Opticstar DS-616C Features

  • Nebulosity v2 Software: Nebulosity is designed to be a powerful, but simple to use capture and processing application for a wide range of astronomy CCD cameras. Many cameras are supported for capture and images from just about anything can be processed

Opticstar DS-616C Specifications

Sensor Sony ICX413AQ CCD
Sensor format 1.8" (25.10mm x 17.64mm)
Scan mode Interline
Resolution 3032(W) x 2014(H), 6.1 Mega-pixels
Pixel Size 7.8um x 7.8um
Green Sensitivity 1200mV max @ 1/30 accumulation maximum (Gain off)
Gain 6.88 dB in hardware, up to 100% sensitivity boost
Overall System Gain 8.5135 e/ADU
Readout Noise 5.7 e
Maximum Level 4095.0 ADU
Full Well Capacity 34863 e (minimum)
Dynamic Range 75.8 dB
Signal to Noise Ratio 45.4 dB
Filter Color Bayer RGB Mosaic
Exposure control Automatic or Manual
Cooling Thermo-Electric Cooling with fan assist to 30deg.C below ambient temperature
ADC 12-bit RGB raw, (16-bit application data)
Optical mount T-mount
Exposure time 1ms to 1 hour
Frame Rate 1 fps @ 3032x2014
Window glass Clear, no Infra Red cut-off
Computer Interface USB 2.0 480Mb/s
Power Requirement 2A 12VDC Mains Power
Mounting T-thread (included)
Cooling fan 30mm x 30mm, 5000rpm
Bundled software Nebulosity v2, plug-in for AstroArt, plug-in for MaxIm DL
Operating System Microsoft Windows (64-bit & 32-bit) XP/Vista/7/8
Dimensions 115x110x95mm / 4.52x4.33x3.74"
Weight 940g /33.15 oz
