Opticstar PX-75M Coolair Monochrome Video Camera, 1/3" Sony ICX204 CCD Color, 1024(W) x 768(H) Resolution, 60fps Max Frame Rate

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$649.00 List Price

Our Price

$299.90 $12 per week
Add to Wishlist In Stock

About the Opticstar PX-75M

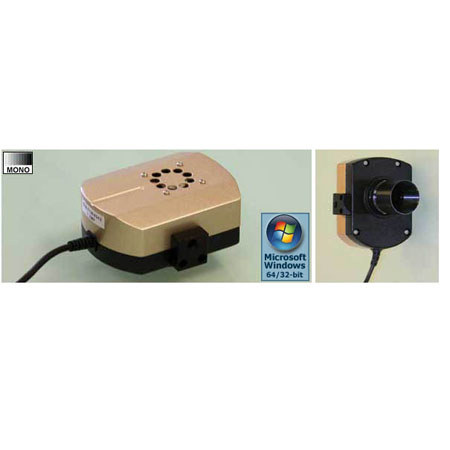

The Opticstar PX-75M Coolair Monochrome Video Camera is the ideal monochrome planetary CCD camera that combines high frame rates with high sensitivity. The PX-75M is also well suited for Lunar and Solar imaging. Please note that for solar imaging, the camera should be used only with an appropriate solar telescope or solar filter.

The PX-75M is particularly well suited for capturing critical type targets including the International Space Station due to its very low noise characteristics and unusually high Gain while retaining the necessary high S/N ratios.

The camera is also ideal for industrial inspection and microscopy applications. Noise reduction, Gain and Region of Interest (ROI) are all features implemented in the hardware to deliver exceptional performance.

Opticstar PX-75M Includes

  • Opticstar PX-75M Coolair Monochrome Video Camera
  • CS-Mount to 1.25" Telescope Adaptor
  • USB 2.0 Cable
  • Camera Control
  • Software on CD
  • Set-Up Guide
  • User Manual
  • Opticstar Warranty

Opticstar PX-75M Features

  • Noise Reduction and Cooling: Thermal noise is kept to a minimum via a heat-sink that is directly attached to the back of the Sony CCD sensor and a fan that draws the heat out of the camera fast
  • Performance: The PX-75M requires a fully featured, full speed USB 2.0 port to take advantage of all the camera's advanced features
  • Opticstar View - Camera Control Software: The camera is recommended for lunar and solar imaging. It includes Opticstar View software for image capture and camera control with a point and click interface. It can capture single frames, a series of single frames in BMP format or in AVI video format
  • EtAMCAP - Camera Control Software: EtAMCAP is the second program bundled with the camera. It can be used to control the camera and capture video in AVI format
  • Image Quality: The PX-75M camera can stream and store video to disk at up to 20 frames per second at 1024x768 resolution, it can also grab single frames at 1024x768

Opticstar PX-75M Specifications

Sensor Sony ICX204AL
Optical Format 1/3" CCD monochrome sensor
Resolution 1024(W) x 768(H)
Pixel Size 4.65um x 4.65um
Sensitivity 400mV max @ 1/30 accumulation maximum (Gain off)
Color Bayer RGB Mosaic 24-bit (3 x 8-bit) Uncompressed output
Frame Rate 20fps @ 1024x768
40fps @ 512x384 ROI
60fps @ 256x192 ROI
Shutter Electronic Rolling
Window glass Clear, no Infra Red cut-off
Exposure Time Automatic or Manual; 1ms to 3s
ADC 8-bit
Cooling Heat sink and fan
Gain in hardware, user selectable from 0% to >100% boost
Computer Interface USB 2.0 with 1.8m cable
Power Requirement USB 2.0 Bus Power
Mounting to telescope C/CS to 1.25" (included)
Mounting to lens C to T-thread, M42 x 0.75
Mounting to microscope C to 23mm, C to 30mm, C to 30.5mm
Bundled software Opticstar View, etAMCAP
Data Format AVI video with or without MPEG compression; BMP
Operating System Microsoft Windows (64-bit & 32-bit) XP/Vista/7
Weight 250 g /8.81 oz
