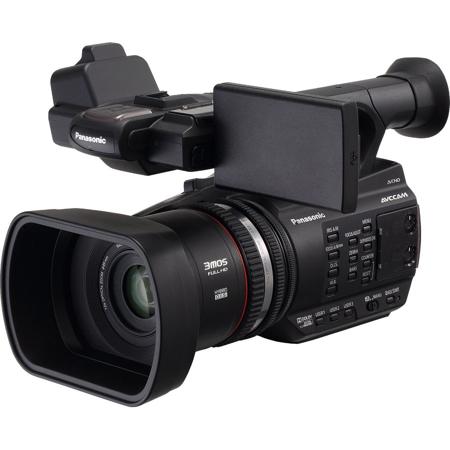

Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder, 3x 1/4.7" 2.19MP MOS Sensors, 12x Zoom Lens 29.8 to 357.6mm, 3.5" Touchscreen LCD Monitor

$200.00 Savings with Mail-in Rebate
Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Original Price: $1,899.00 ( Special Price Available )

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

Ways To Save up to $200.00

Product Highlights

  • Includes Camcorder Only
  • Secure Digital (SD)
  • Touchscreen LCD
  • High Definition
  • Jack Mic Input
  • XLR Mic Inputs
  • XLR Mic Input
  • CMOS Sensor
Panasonic AG-AC90A: Picture 1 regular

About Panasonic AG-AC90A

Featuring a stylish, easy-to-operate design, the Panasonic AG-AC90A AVCCAM Full HD Handheld Camcorder captures native 1920 x 1080 resolution images and records in 1080/60p, 60i, 30p and 24p, as well as in standard definition (480/60i) in 60Hz. The AG-AC90A offers significant improvements over its predecessor, the AG-AC90, including two new recording options -- a PM mode (1280x720, 8Mbps) supporting sports analysis applications and a CS mode (720x480, 3.5Mbps) for cloud service utilization.

Other AC90A enhancements comprise the ability to copy content from one SD card to another, a date and time superimpose function ideal for law enforcement and legal depositions, Freeze Frame (still picture) on video out during shooting position change, Eye-Fi wireless SD card support, a Variable White Balance function, additional marker displays and a Digital Range Stretch (DRS) On/Off user button.

High powered 29.8mm Wide-Angle Zoom Lens
The AC90A offers a high-powered 12X zoom lens includes a 29.8 mm (35 mm equivalent) wide-angle setting. When using the Intelligent 25X digital zoom, it achieves up to 25X seamless zooming. In addition, it also features a 2X, 5X and 10X digital zoom function. Panasonic's unique Nano Surface Coating minimizes ghosts and flaring and a high speed, F1.5 brightness enables extremely clear image rendering. Its built-in 5-axis Hybrid OIS (Optical Image Stabilizer) ensures stable handheld shooting.

High-Sensitivity BSI Type 3MOS Sensors
The AC90A features three (RGB) backside illumination corresponding 1/4.7 type MOS image sensors with an effective pixel count of 2,190,000 pixels to capture exceptional HD images and superb color reproduction even in dimly lit locations. The image processing circuit, which is tuned for professional use, produces highly natural gradation and sharp detail.

Easy Operation with Triple Manual Rings
The AC90A's lens barrel is equipped with manual rings for focus, zoom and iris operation to enable speedy, intuitive camera work generally associated with interchangeable lenses. The 3.5" tough-panel LCD monitor, which stores easily inside the top front part of the handle, has approximately 1,152,000 dots resolution to enhance focusing and includes focus assist, zebra and color bar display functions. The LCD monitor rotates 270 degrees for easy low-angle, high-angle and self-interview shootings.

Panasonic AG-AC90A Features

  • Professional AVCHD Modes; PS mode for Full-HD (1920 x 1080) and progressive (60p/50p) image acquisition, high quality PH mode, PM mode (1280x720) for sportscoaching use and CS mode (720x480) for network transmission applications.
  • HD/SD Multi-Formats; 1080/60p, 60i, 30p, 24p, 480/60i
  • Dual SD Card Slots (support SDXC/SDHC/SD Memory Cards). With two SD cards, a camera operator can select backup recording. slot-to-slot SD card contents copy is possible.
  • Still shots with 3-megapixel resolution. (Still shots can also be captured during video recording.)
  • 2 channel XLR audio inputs (MIC/LINE/+48V selectable).
  • Audio CH1/CH2 with individual level controls and input selection.
  • HDMI output, AV Multi output (D-connector, composite video and audio 2 channel), USB connector.
  • Remote terminals enable remote operation of iris, focus, zoom and Rec Start/Stop functions.
  • The upper part of the handle grip contains both the Rec Start/Stop button and azoom speed control (three speed steps) for the lens.
  • Freeze frame function for preventing unwanted images from being captured and displayed on an external monitor.
  • Date & time stamp superimpose.
  • White balance adjustment; selectable from ATW/3200K/5600K/Manual (2 values) or user setting (2400K-9900K, 100K step).
  • Included a long life 5,400 mAh battery enables approximate 6 hours of continuous shooting in PH mode.

Panasonic AG-AC90A Specifications

Pickup Devices
1/4.7 type 3MOS image sensor
Auto Iris optical zoom (Full range AF)
F value (focal length):
F1.5 to F2.8 (Focal length; 2.84 mm to 34.1 mm)
35 mm equivalent:
Motion picture/Still picture; 29.8 mm to 383.7 mm (16:9)
Minimum focus distance:
Approx. 3.5 cm (1.4 inches) (Wide)
Approx. 1.2 m (3.9 feet) (Tele)
Filter Diameter
49 mm
12x optical zoom, 25x i.Zoom, 2x/5x/10x digital zoom
Shutter Speed
1/30 sec. to 1/2000 sec. (auto slow shutter ON)
1/60 sec. to 1/2000 sec. (auto slow shutter OFF)
1/24 sec. to 1/2000 sec. (auto slow shutter ON)
1/50 sec. to 1/2000 sec. (auto slow shutter OFF)
at motion picture recording, manual mode
Image Stabilizer
Optical (hybrid optical image stabilizer, active mode)
Minimum Illumination
Approx. 3 lx (iA mode, shutter speed with auto slow shutter ON)
Recording Format:
AVCHD version 2.0 compliant, AVCHD Progressive
Motion Picture Compression:
MPEG-4 AVC/H.264
Audio Compression:
Dolby Digital (5.1ch/2 ch)
Recording Mode:
Please see the table below.
Still Picture Recording Format:
JPEG corresponding (Design rule for Camera File system, based on Exif 2.2 standard)
Recording Media:
SD Memory Card, SDHC Memory Card, SDXC Memory Card
AV Multi Output
Component video output level:
Y: 1.0 V [p-p], 75Ohms
PB: 0.7 V [p-p], 75Ohms
PR: 0.7 V [p-p], 75Ohms
AV video output level:
1.0 V [p-p], 75Ohms
HDMI Output(Video)
HDMI 1080p/1080i/720p/480p
2 ch (AV Multi terminal)
HDMI Output (Audio)
Dolby Digital/Linear PCM
Headphones Output
3.5 mm stereo mini jack
XLR Input
XLR (3 pin) x 2 (INPUT1/INPUT2),
LINE: 0 dBu
MIC: -50/-60 dBu (switch with the menu)
5.1 ch surround microphone, (with a zoom/focus microphone function)/stereo microphone
ReadReader function (No copyright protection support) Hi-Speed USB (USB 2.0), USB terminal Type Mini B
Camera Remote
2.5 mm diameter, super mini jack x 1 (ZOOM, REC S/S), 3.5 mm diameter, mini jack x 1 (FOCUS, IRIS)
8.8 cm ( 3.5 inches) wide LCD monitor (Approx. 1152 K dots)
0.61 cm (0.24 inches) wide EVF (Approx. 263 K dots)
Power Consumption
12.9 W
Operating Temperature
0deg.C to 40deg.C (32deg.F to 104deg.F)
Operating Humidity
10% to 80% (no condensation)
Dimensions (W x H x D)
6.31 x 7.68 x 13.06" (16.02 x 19.50 x 33.17cm)
Main Unit: 3.30lbs (1.49kg)
With Battery and An SD Card: 3.90lbs (1.76kg)
Mfr #
