Panasonic

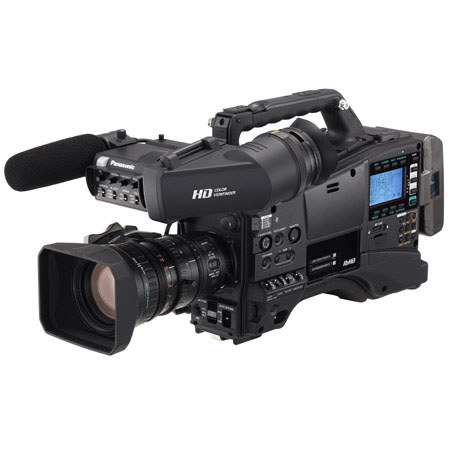

Panasonic AG-HPX600PJF P2 HD Shoulder-Mount Camcorder with AG-CVF15 Viewfinder and Fujinon XA16x8A-XB4 Lens, 2x/4x Digital Zoom, 16:9 Aspect Ratio

SKU: PCAGHPX600F MFR: AGHPX600PJF
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$17,500.00 List Price

Our Price

$15,600.00
Free Shipping
Qty:

Add to Wishlist In Stock

Protect your investment

About the Panasonic AG-HPX600PJF P2

The Panasonic AG-HPX600PJF P2 HD Shoulder-Mount Camcorder features a 2/3" MOS Sensor and records Full HD 1080p video in AVC-Intra 10-bit with 4:2:2 chroma sampling. Other available video formats include DVCPRO HD, DVCPRO50, DVCPRO, DV and optional compatibility with the newly developed AVC-ULTRA. The MOS sensor attains high F12 sensitivity (at 60 Hz) and a signal-to-noise ratio of 59 dB. Weighing in at 6.6 lb, the HPX600 is among the lightest 2/3-type shoulder mount camcorders. The HPX600 utilizes Panasonic's P2 memory card system.

Panasonic AG-HPX600PJF P2 Includes

  • Panasonic AG-HPX600PJF P2 HD Shoulder-Mount Camcorder
  • Fujinon XA16x8A-XB4 Lens
  • AG-CVF15G HD Color Viewfinder
  • Shoulder Strap
  • Mount Cap
  • Panasonic 1 Year Warranty (Plus 4 Additional Years with Online Registration)

Panasonic AG-HPX600PJF P2 Features

  • 16x Fujinon Lens: The 8-128mm f/1.9-2.8 Fujinon lens has a 16x zoom ratio and a 35mm equivalent of 31.44-503.04mm. The lens also features an integrated handgrip with a zoom rocker switch and a servo for focus and zoom
  • Color LCD Viewfinder: The AG-CVF15 viewfinder features a 3.45" color LCD display with 920,000 dot resolution and a native 16:9 aspect ratio. The display can be used as a direct monitor or as a viewfinder with the removable, flip-up eyepiece
  • AVC-Intra 10-bit 4:2:2 Recording: The HPX600 employs the AVC-Intra codec in both 50 and 100Mps versions. Class 100 enables 10-bit 4:2:2 chroma sampling and Class 50 does 10-bit 4:2:0
  • Optional Compatibility with AVC-ULTRA: An optional upgrade provides HPX600 compatibility with the new AVC-ULTRA family of codecs
  • Chromatic Aberration Compensation: Chromatic aberration is a type of distortion which results from a lens's limited ability to focus all colors to the same convergence point
  • Flash Band Compensation: The HPX600 features Flash Band Compensation, which minimizes light band interference that can occur when shooting in an environment where flash photography is taking place
  • Dynamic Range Stretch: DRS recognizes the average brightness of highlight and shadow areas and then automatically provides a wider dynamic range with minimal blown highlights and blocked shadows
  • Focus Assist Functions: The Expand function and the Focus Bar are available to camera operators to aid them in finding and maintaining accurate focus
  • Waveform and Vectorscope: The HPX600 has waveform and vectorscope built-in. These features aid camera operators in maintaining broadcast safe chroma and luminance values
  • Camera Remote Interface: The HPX600 supports AJ-RC10 and AG-EC4, remote control units (sold separately) that operate almost all camera functions, including REC Start/Stop, iris, gain, white balance, scene files and more
  • PAL & NTSC Switchable: The HPX600 is 50Hz (PAL) and 59.94Hz (NTSC) switchable for international usage
  • A Range of "Future Proof" Options: In addition to upgrades for compatibility with AVC-Ultra and microP2, Panasonic will make several "future proof" upgrades available to the HPX600 (sold separately). An optional video encoder board will facilitate high res proxy video

Panasonic AG-HPX600PJF P2 Specifications

System Formats 1080/59.94i, 1080/23.98PsF2, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
Recording Media P2 card
Digital Zoom x 2, x 4
Video S/N 59 dB (standard)
Sensitivity F12 (2000 lx, 3200 K, 89.9% reflect, 1080/59.94i)
F13 (2000 lx, 3200 K, 89.9% reflect, 1080/50i)
Frame Rates (50 Hz mode) 1080: 1/2/4/6/9/12/15/18/20/21/22/23/24/25
(frames per second) 14 steps2
720: 1/2/4/6/9/12/15/18/20/21/22/23/24/25/26/27/
28/30/32/34/37/42/45/48/50 (frames per second)
25 steps
Frame Rates (59.94 Hz mode) 1080: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/27/28/30
(frames per second) 17 steps2
720: 1/2/4/6/9/12/15/18/20/21/22/24/25/26/27/28/
30/32/34/36/40/44/48/54/60 (frames per second)
25 steps
Shutter Open Angle SCENE FILE VFR = OFF
3 deg to 360 deg, 0.5 deg step select
SCENE FILE VFR = ON2 (FRAME RATE 12p or mor
3 deg to 360 deg, 0.5 deg step select
SCENE FILE VFR = ON2 (Less than FRAME RATE 12p)
3 deg to 22.5 deg, 0.5 deg step select
45 deg, 90 deg, 180 deg, 360 deg
Shutter Speed (Slow) SYSTEM MODE = 59.94 Hz
60i/60p mode: 1/15 sec., 1/30 sec.
30p mode: 1/15 sec.
24p mode: 1/12 sec.
SYSTEM MODE = 50 Hz
50i/50p mode: 1/12.5 sec., 1/25 sec.
25p mode: 1/12.5 sec.
Shutter Speed (Syncro Scan) SYSTEM MODE = 59.94 Hz (SYNC SCAN TYPE = sec)
60i/60p mode: 1/60.0 sec. to 1/249.8 sec.
30p mode: 1/30.0 sec. to 1/249.8 sec.
24p mode: 1/24.0 sec. to 1/249.8sec.
SYSTEM MODE = 50 Hz (SYNC SCAN TYPE = sec)
50i/50p mode: 1/50.0 sec. to 1/250.0 sec.
25p mode: 1/25.0 sec. to 1/250.0 sec.
Shutter Speed (Preset) 2 SYSTEM MODE = 50 Hz
50i/50p mode: 1/50 (OFF) sec., 1/60 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
25p mode: 1/25 (OFF) sec., 1/50 sec., 1/60 sec.,
1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
Shutter Speed (Preset) 1 SYSTEM MODE = 59.94 Hz
60i/60p mode: 1/60 (OFF) sec., 1/100 sec., 1/120 sec.,
1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.
30p mode: 1/30 (OFF) sec., 1/50 sec., 1/60 sec.,
1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.
24p mode: 1/24 (OFF) sec., 1/50 sec., 1/60 sec.,
1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec
Color Temperature settings ATW, ATW LOCK, Ach, Bch, Preset 3200 K/Preset 5600 K/VAR (2400K to 9900K )
Gain Selection 3 dB, 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 18 dB
(18 dB: USER SW allocation)
ND Filter 4 position (Clear, 1/4ND, 1/16ND, 1/64ND)
Operating Humidity 10% to 85% (no condensation)
Keeping Temperature -20 deg.C to 60 deg.C (-4 deg.F to 140 deg.F)
Pick-up Device 2/3-type MOS x 1
Lens Mount 2/3-type bayonet type
Operating Temperature 0 deg.C to 40 deg.C (32 deg.F to 104 deg.F)
Supply Voltage DC 12 V (DC 11 V to 17 V)
Power Consumption 18 W (main unit only)22 W (with AG-YDX600G and AG-YA600G)
Recording Video Signal 1080/59.94i, 1080/29.97p, 1080/29.97pN,
1080/23.98p, 1080/23.98pA, 1080/23.98pN,
1080/50i, 1080/25p, 1080/25p
720/59.94p, 720/29.97p, 720/29.97pN,
720/23.98p, 720/23.98pN,
720/50p, 720/25p, 720/25pN
480/59.94i, 480/29.97p, 480/23.98p, 480/23.98pA 576/50i, 576/25p
Recording Formats AVC-Intra100/AVC-Intra50/DVCPRO HD/DVCPRO 50/DVCPRO/DV formats switchable
Recording/Playback Time 64GB AVC-Intra100/DVCPRO HD: approx. 64 min.
VC-Intra50/DVCPRO 50: approx. 128 min.
DVCPRO/DV: approx. 256 min.(with a 64 GB P2 card)
Recording/Playback Time 32GB AVC-Intra100/DVCPRO HD: approx. 32 min.
AVC-Intra50/DVCPRO 50: approx. 64 min.
DVCPRO/DV: approx. 128 min (with a 32 GB P2 card)
Recording/Playback Time 16GB AVC-Intra100/DVCPRO HD: approx. 16 min.
AVC-Intra50/DVCPRO 50: approx. 32 min.
DVCPRO/DV: approx. 64 min (with a 16 GB P2 card)
Recorded Video Signals AVC-Intra100/DVCPRO HD:
Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz )
Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz )
DVCPRO 50: Y: 13.5 MHz, P PB/PR: 6.75 MHz
DVCPRO: Y: 13.5 MHz, PB/PR: 3.375 MHz
Quantizing AVC-Intra100/AVC-Intra50: 10 bit
DVCPRO HD/DVCPRO 50/DVCPRO/DV: 8 bit
Video Compression AVC-Intra100/AVC-Intra50
MPEG-4 AVC/H.264 Intra Profile
DVCPRO HD: DV-Based Compression (SMPTE 370M)
DVCPRO 50/DVCPRO: DV-Based Compression (SMPTE 314M)
DV: DV Compression (IEC 61834-2)
Recording Audio Signal AVC-Intra100/AVC-Intra50: 48 kHz, 16 bit, 4CH
DVCPRO HD/DVCPRO 50: 48 kHz, 16 bit, 4CH
DVCPRO/DV: 48 kHz, 16 bit, 2CH/4CH switchablee
Headroom 20 dB/18 dB switching via menu
SDI OUT/IN (OP) BNCx15
HD SDI: 0.8 V [p-p], 75Ohms SD SDI: 0.8 V [p-p], 75Ohms5
MON OUT BNCx1, HD SDI/SD SDI/VBS (Analog Composite)
can be switched on SmatUI
HD SDI: 0.8 V [p-p], 75 O / SD SDI: 0.8 V [p-p], 75 O /
VBS: 1.0 V [p-p], 75 O
HDMI OUT HDMI x 1 (HDMI TypeA terminal), VIERA Link not supported
Audio IN XLR (3 pin) x 2
LINE/MIC switchable, high impedance,
LINE: 0 dBu, MIC:-50 dBu/-60 dBu (switching via menu)
MIC +48 V ON/OFF (switchable)
MIC IN XLR (3 pin) x 1
+MIC/+48 V switchable,
-40 dBu/-50 dBu/-60 dBu (switching via menu)
Wireless In 25 pin, D-SUB, -40 dBu 2CH supported
Audio Out Pin jack x 2 (CH1/CH2), Output: 316 mV, 600 Ohms
PHONES OUT Dia.: 3.5mm stereo mini jack x 1
Speaker 20mm diameter x 1
GENLOCK IN BNC x 1, 1.0 V [p-p], 75 Ohms
TC IN/OUT IN: BNC x 1, 0.5 V [p-p] tOhms 8V [p-p], 10 kOhms
OhmsUT: BNC x 1, 2.0 V ±0.5 V [p-p], lOhmsw impedance
(IN/OhmsUT switching via menu)
DC In XLR x 1, 4 pin, DC 12 V (DC 11.0 V to 17.0 V )
DC Out 4 pin, DC 12 V (DC 11.0 V to 17.0 V ), Max. 1.5 A
Remote 10 pin
Lens 12 pin
VF 20 pin
LAN 100BASE-TX/10BASE-T6
USB 2.0 (Host) Type-A, 4 pin USB ver 2.0 Standard
USB 2.0 (Device) Type-B, 4 pin USB ver 2.0 Standard
Dimensions (W x H x D) 144 x 267 x 350mm / 5.66 x 10.51 x 13.77"
Weight 2.8kg / 6.17lb (excluding battery and accessories)
