Item Includes
Power Cable, MX-Navi Installation CD-ROM
|
Description

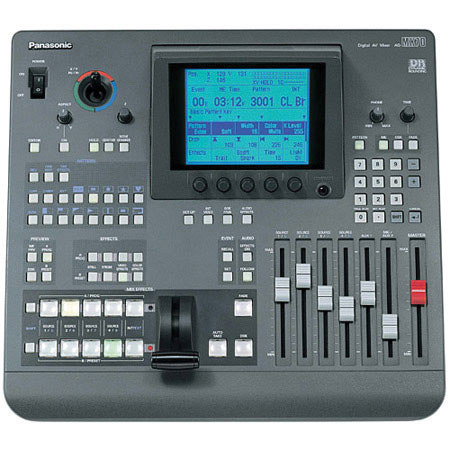

With the AG-MX70 digital A/V mixer, Panasonic has integrated a 2-BUS, 8-input video switcher, multi-functional digital video effects unit with high-end performance, and an audio mixer into a single compact unit. The AG-MX70 provides broadcast-grade 4:2:2:4 digital component picture quality. It features more than 600 effect patterns and a 30-frame graphics buffer for roll, crawl, and logo animation using title files downloaded from a PC. A large LCD panel with a matrix menu helps assure quick, easy operation. Offering optional 3D video effects and SDI interface, this A/V mixer is ready for full-fledged digital post-production. The versatile AG-MX70 is right at home when connected to 25 Mbps DVCPRO VTRs in a digital editing system, or when used as a switcher either in the studio or at live events.
Eight video inputs, each with tally output, and M/E and DSK preview prepare the AG-MX70 for use as a switcher with multi-camera feeds for live studio or event applications. Adding the optional SDI interface also enables high-quality digital input. Titles and graphics created on a PC can be downloading from MX-Navi application, and easily superimposed for use in live production programming.
Standard-equipped RS-422A and RS-232C remote terminals and a GPI terminal allow the AG-MX70 to team up with the AG-A850 or other-brand editing controller, for A/B roll editing. With the SDI interface option on-board, a high-quality, fully digital editing system can also be configured with a DVCPRO VTR. The MX-Navi title insertion program brings the quality of program production to a level approaching many high-end systems. |
Features
 |
Designed for live events and full-fledged digital post-production |
|
Compact unit with a 2-BUS, 8-input video switcher, high-performance, multi-functional digital video effects unit and versatile audio mixer. |
|
4:2:2:4 digital component picture quality with Dynamic RoundingTM for broadcast-quality video and 16:9 wide and 4:3 aspect ratio capability |
|
Creates more than 600 2D effects patterns including transitions, key patterns, mosaic, paint, trail and multi-images |
|
Optional AG-VE70P 3-D effects board delivers over 1600 effects including page-turns, accordion, spheres and ripples |
|
An easy-to-operate joystick allows users to position and size effects as well as select and adjust colors. |
|
Tally outputs for up to eight cameras and 2-channel frame synchronization permitting special effects in each of the A/B program busses |
|
Large LCD control panel for easy operation and monitoring of system status. |
|
Five-row matrix menu display with five rotary switches makes it easy to set the unit's multitude of functions |
|
Inputs including composite, Y/C, component, or Serial Digital (SDI) |
|
30-frame graphics buffer for roll, crawl and logo animation; and a USB interface makes it easy to download graphics |
|
RS-422A and RS-232C remote control terminals standard and a GPI terminal to permit the AG-MX70 to team with video editing devices |
|
Versatile audio mixing with four stereo inputs (or embedded audio with the optional SDI interface), plus 2 Auxiliary Inputs, one of which can be switched to a microphone level input |
Specifications
| GENERAL | --- |
| Power Source | 120VAC, 50/60Hz (AG-MX70P), 220 - 240VAC, 50/60Hz (AG-MX70E) |
| Power Consumption | 50W (Standard), 70W (Full Option) |
| Operating Temperature | 5° to 40°C |
| Operating Humidity | Less than 90% (non dew) |
| Dimensions | 16-3/4"(W) x 7-13/16"(H) x 15-3/4"(D) 425 (W) x 198 (H) x 400 (D) mm |
| Weight | 16.5 lbs (7.5 kg) in Standard 17.6 lbs (8.0 kg) with Full Option |
| Standard Accessory | Power cable, CD-ROM |
| VIDEO | --- |
| Video Format | 625/525 switchable |
| Sampling Frequency | Y: 13.5 MHz, Pb/Pr: 6.75MHz, Key: 13.5MHz(4:2:2:4) |
| Quantization | A/D: 9 bit (source 1-8) Ext. key: 8 bit |
| Internal Process | 8 bit with dynamic rounding |
| D/A | 10 bit |
| Gain | Unity (100% ±2% ) |
| Band width | Y: 0.5MHz to 5.0 MHz (±1.0 dB), |
| Pb/Pr | 0.25MHz to 2.5 MHz (±1.0 dB) |
| S/N ratio | 56 dB(component), 50 dB(composite or YC) |
| K factor | Less than 1% |
| DG/DP | Less than 3%/3° |
| PLL Frequency Range | Sync: fh±300 Hz, SC: fsc±40 Hz fh=15.734kHz (AG-MX70P)/15.625kHz (AG-MX70E) fsc=3.58MHz (AG-MX70P)/4.43MHz (AG-MX70E) |
| System Delay | Max. 1-frame |
| AUDIO | --- |
| Sampling Frequency | 48 kHz |
| Quantization | Analog Input: 20bit, Digital Input (option): 24bit |
| Frequency Response | 20 Hz to 20 kHz (±1.0 dB) |
| Dynamic Range | More than 85dB (analog In/out) |
| THD | Less than 0.05% (1 kHz, aliment level) |
| Cross Talk | Less than -70 dB (1 kHz, between any two channels) |
| Headroom | 20 dB/18 dB switchable |
| Digital Audio | SDI Embedded Audio (option) 2CH ( Ch-1&2/3&4/5&6/7&8 selectable) |
| VIDEO INPUT | --- |
| Analog Component | BNC x 4 (SOURCE 1/2/3/4), Y: 1.0 Vp-p 75 ?, Pb/Pr (AG-MX70P): 0.525/0.757 Vp-p switchable 75, Pb/Pr (AG-MX70E): 0.7 Vp-p 75 |
| Analog Composite | BNC x 8 (SOURCE 1 - 8), 1.0Vp-p 75 |
| S-Video | Mini-DIN4 x 4 (SOURCE 1/2/3/4), Y: 1.0 Vp-p, 75, C: 0.286Vp-p 75(AG-MX70P), 0.3Vp-p 75(AG-MX70E) |
| External Fill | BNC x 1 (Y/Pb/Pr), Analog Component, Y: 1.0 Vp-p 75 Pb/Pr (AG-MX70P): 0.525/0.757 Vp-p switchable 75 Pb/Pr(AG-MX70E): 0.7 Vp-p 75 *Y signal will be clipped at lower than pedestal level. |
| External Key | BNC x 1, 1.0Vp-p, 75, Analog Composite or Y+Sync |
| Genlock | BNC x 1 (with passive-loop-through), 1.0Vp-p 75On/Off |
| SDI(Option) | BNC x 4 (IN 1/2/3/4), SMPTE 259M-C/EBU Tech.3267-E |
| VIDEO OUTPUT | --- |
| Analog Component | BNC x 2, Y: 1.0 Vp-p 75 ? Pb/Pr (AG-MX70P): 0.525/0.757 Vp-p switchable 75 Pb/Pr (AG-MX70E): 0.7 Vp-p 75 |
| Analog Composite | BNC x 2, 1.0Vp-p 75 |
| S-Video | Mini-DIN4 x 2, Y: 1.0 Vp-p, 75, C: 0.286Vp-p 75(AG-MX70P), 0.3Vp-p 75(AG-MX70E) |
| AUX | BNC x1, 1.0Vp-p 75 |
| 8H Advanced Reference | BNC x 1, 75, |
| Sync | 0.286(AG-MX70P)/0.3 Vp-p (AG-MX70E) |
| Burst | 0.286(AG-MX70P)/0.3 Vp-p (AG-MX70E) |
| SDI(Option) | BNC x 1, SMPTE 259M-C/EBU Tech.3267-E |
| VIDEO INPUT ADJUSTMENT | --- |
| AGC | Y: +2dB to -6dB, C: +2dB to -6dB (composite and YC input only) |
| Setup Level | 0/7.5 IRE switchable (composite and YC, 525 mode only) |
| VIDEO OUTPUT ADJUSTMENT | --- |
| Setup Level | 0/7.5IRE switchable (composite and YC, 525 mode only) |
| System H Phase | -0.25 H to +0.25 H (74 ns/step) |
| System SC Phase | ±180° |
| AUDIO INPUT | --- |
| Analog (L/R) | XLR x 8, +4/0/-3 dBu switchable, 10k |
| Analog (L/R) | RCA x 4 (AUX 1/2), -8.0 dBV, 10K, unbalanced |
| MIC | M6 x 1, -60 dBu, 2k, unbalanced |
| SDI(Option) | BNC x 4, Embedded Audio (CH1/2, 3/4, 5/6, 7/8 switchable) |
| AUDIO OUTPUT | --- |
| Analog (L/R) | XLR x 2 (PROGRAM 1), +4/0/-3 dBu switchable, 47 |
| Analog (L/R) | RCA x 2 (PROGRAM 2), -8.0 dBV, 47 |
| Headphone | M6 x 1, 8, unbalanced, -20 dBu to -60 dBu |
| SDI (Option) | BNC x 1, Embedded Audio (CH1/2) |
| OTHER PORT | --- |
| Editor | D-sub 9-pin, RS-422A/232C switchable RS-422A Protocol GVG/Sony switchable |
| Connectable Editor | Panasonic: AG-A850, SONY: BVE-2000, BVE-910, BVE-700, PVE-500 |
| Tally Out | D-sub 9-pin, Open-Collector x 8ch |
| Collector Current | Less than 50mA, |
| Maximum Voltage | 35VDC |
| GPI | BNC x 1, Voltage (TTL-level) or Make-contact (pull-up resister = 10k), Low-Active |
| USB | Type-B connector x 1, USB Ver.1.1 (cable length: max. 3m) |
| FUNCTIONS | --- |
| Video Effects | Nega, Mosaic, Mono, Paint, Strobe, Multi, Trail, Frame/Field-Still, Defocus, Decay, Mirror |
| Matte Colors | White, Yellow, Cyan, Green, Magenta, Red, Blue, Black, Color-Bar, Custom 1/2 |
| Wipe/Transition Patterns | More than 600 patterns (standard), More than 1,600 patterns (with optional 3D Effect Board) |
| Event Memory | 100 Events |
| Joystick Control | Positioner, Color Correction. |
| Audio Mixer | SOURCE-1 to 8, AUX-1, AUX-2/Mic, Master |
| Audio Effects | 3 Band-EQ, Pan, Attenuator, Voice Changer |
| Others | Audio-Follow, Auto-Take, Auto-Fade, Memory, Audio&Video Input-Assign |
| | |
|
