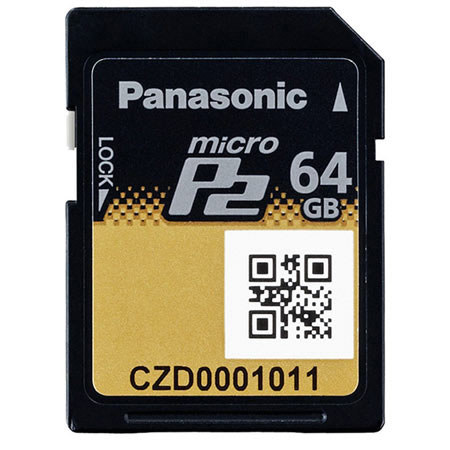

The world's first UHS-II complaint memory card, the Panasonic AJ-P2M064AG is a 64GB microP2 card that will guarantee data writing up to the class200 mode of AVC-ULTRA, the company's newest compression system. With an SD card form factor, the MicroP2 cards will ensure high-speed transfer, high reliability and the writing assurance of all P2 frame rates, formats and codecs. Furthering the versatility of the microP2 card adapter and microP2 card slots, their design allows Class 10 SDHC/SDXC cards (at bit rates only up to 50Mbps) to be used in P2 products.
The microP2 card's double-layered UHS-II interface facilitates transfer speeds of 2.0 Gpbs (1.7 times faster than standard P2 media, and 12x faster than ordinary SD media). Reliability is defined by Proof7 strength (resistance to water/dust, static electricity, bending and twisting, magnet, X-ray, wide temperature range, and safety built-in-fuse ); a flash memory error correction system, equivalent to a RAID system, to greatly strengthen data retention reliability; a Lifetime Counter that gives a notification when the card approaches the end of its life cycle, which is defined as reusable for up to five years when recorded on once daily, at full capacity; 100% screened flash memory; a Content Protection System (CPS) that password-protects the card; and a QR code for scanning and identification.
Panasonic's microP2 solid-state UHS-II compliant memory cards ensure highly reliable video, audio, and metadata recording, especially in challenging conditions of extreme temperature range, shock, and vibration. P2 cards allow professional users to benefit from a fast, easy, file-based workflow and exceptional reliability.
|Bus Interface Speed||UHS-II|
|Read Speed||Maximum: 2.0 Gb/s|
|Write Speed||Maximum: 200 Mb/s|
|Error Correction||RAID-type system|
|Data Protection||CPS password protection|
|Durability||Depth rating: 3.28' (1 m) for 30 min (IPX7)
Bending load resistance - Minimum: 20 N
Twisting torque resistance - Minimum: 0.3 Nm
X-ray proof: ISO 7816-1 compliant
Magnetism: Resistant to 1000-gauss DC magnetic field for approx. 1 min
Electrostatic force-proof: ICE 61000-4-2 compliant
Protection against excess current / heat: built-in safety fuse
Insertion / removal cycles: 10,000
|Operating Temperature||-13 to 185°F (-25 to 85°C)|
