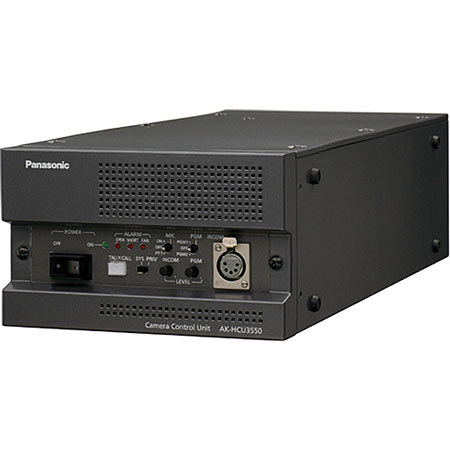

The Panasonic AK-HCU3550 Camera Control Unit supports high definition 1080i 59.94/50, SD 587/50i and 480/59.94i output and 1080/59.94i/50.00i, 587/50.00i, 480/59.9 RET IN formats. It is designed to work with the AK-HC3500 production/studio camera for studio and EFP (electronic field production) applications. The Camera Control Unit manages critical camera functions and consumes 40W power - reducing the heat dissipation. With half-rack width, the control unit can be carried in flypacks and vans, thus offering efficient and all-round connectivity. In addition, it features a LEMO, D-sub 25 and Ethernet LAN RJ-45 connectors.
| Form Factor | Half-rack |
| Video Formats | HD 1080i 59.94/50, SD 587/50i and 480/59.94i Output Formats - 1080/59.94i/50.00i, 587/50.00i, 480/59.94i RET IN Formats - 1080/59.94i/50.00i, 587/50.00i, 480/59.9 |
| Connectors-1 | Optical Connector - LEMO Communication Connector - D-sub 25 Analog Video Output - BNC x 2 Composite/PM Selectable Digital Video Out - HD/SD-SDI Selectable BNC x 4 (1st pair must be the same) SYNC - SD or HD Selectable - BNC x 1 Digital Video Input - RET Input BNC x 4, 1-HD-SDI Max 4 2-SD-SDI Max 4 Prompter Input - BNC Max 2 |
| Connectors-2 | Communication - Tally Input, Incom Input, PGM Input x 2 Intercom - 1, 2W/4W/RTS TRUNK Input / Output - RS422 X 2 (D-sub9S-X-1) Microphone or LINE x 2 Embedded Audio - BNC X 4 (HD-SDI) Reference - BB BNC X 1Tri-Level Sync BNC x 1 Ethernet LAN RJ45 |
| Power Consumption | 40W |
| Weight | 22 lb (10 kg) |
