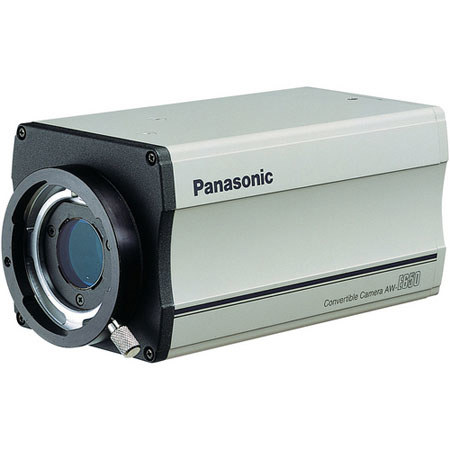

Panasonic AW-E650 1/2" 3-CCD Convertible System Camera with Extreme Low-Light Sensitivity, Built-In Filters & Infrared Total Darkness Vision

Panasonic

About Panasonic

The Panasonic AW-E650 is the advanced version of the 1/2-inch convertible camera that can fill a variety of remote production and industrial needs. The camera uses advanced digital noise reduction technology and a 12-bit DSP for very clear and ultimately true-looking video. Its custom color matrix and detail correction features allow you to get the special quality images required your individual production requirements. Additionally, low light capability is simply amazing.

The heart of the convertible system is the addition of optional feature cards. One optional adapter card converts the camera to a very high quality analog studio camera ready for a large viewfinder. There is a studio card that will output SDI video also. Another option is for using the camera on remote pan and tilt head. Full zoom and focus control in addition to pan and tilt functions are remotely controllable. Many of the analog video outputs that were previously optional are now standard. Completely new to the AW-350/650/655/750 cameras is that there is now the option of installing 2 cards for even easier, faster convertibility.

Panasonic Features

  • Digital video signal processing for high quality, high reliability, high performance, lightweight and compact size
  • The built-in CCD storage function and digital gain up function provide an even higher degree of high sensitivity
  • RGB, Y/Pr/Pb and Y/C signal output circuits provided
  • Built-in automatic controls, including ATW, ELC and AGC
  • CCD readout is switchable between field and frame modes. Vertical resolution can be stepped up in frame mode and it is effective for shooting still objects
  • The built-in synchronized scanning system reduces noise in computer graphics
  • Various correction circuits permit video reproduction with high fidelity
  • Chroma detail correction enables clear shots of dark color objects
  • A dark detail circuit provides natural edge correction to any object in a dark scene
  • A digital color matrix enables high fidelity color images
  • The 12-axis digital color matrix enables users' to create images of their choice
  • Four use modes for each of your specific applications can be selected
  • SMPTE color bar is indicated on the monitor screen
  • Remote control with a RCU, RCB or a Hybrid control panel

Panasonic Specifications

Image Elements
1/2" prism, F1.4
Pick up device
1/2" interline-type CCD
Number of valid pixels
768 x 494 (approx. 380,000 pixels)
Total number of pixels
811 x 508 (approx. 410,000 pixels)
Scanning system
525 scanning lines, 60 fields, 30 frames
Synchronizing system
Internal synchronization: EIA standard; external synchronization: BBS or VBS (BNC x 1, D-sub 50P x 1)
Video output
Composite: 1.0 Vp-p/75 ohms (BNC x 1, D-sub 50 P x 1)
Y/C Y: 1.0 Vp-p/75 ohms; C: 0.286 Vp-p/75 ohms (burst) (D-sub 50P x 1)
Y/Pr/Pb Y: 1 Vp-p/75 ohms; Pr, Pb: 0.7 Vp-p/75 ohms (D-sub 50P x 1)
RGB G: 1 Vp-p/75 ohms; RB: 0.7 Vp-p/75 ohms (D-sub 50P x 1)
Standard illumination, color temperature
2,000 lx (F14, 3,200K)
Minimum illumination
0.00005 lx at F1.4, Night Eye mode, 30 dB digital gain, 2s storage time, output of 70% or above
S/N ratio
67 dB (Y signal, DTL OFF, DNR ON)
Horizontal resolution
850 TV lines (high-band DTL ON, center area)
Registration
0.05% (entire screen, excluding effects of lens)
Contour correction
Horizontal, vertical (2H)
White balance
AWC A,AWC B(R/B gain, painting), AT W, 3 200 K, 5 600 K preset
Black Balance
Auto (R/B pedestal, painting, function)
Color Bar
SMPTE color bar (setup 0/7.5IRE) (full)
Shutter Speed
OFF,1/100 (1/120), 1/250,1/500,1/1 000,1/2 000,1/4 000,1/10 000 Synchro-scan ELC
Gain
Manual: max. 72 dB (0 to 30 dB in steps, Night Eye/H, Digital Gain 0 to 30 dB in 6 dB steps)
Auto: max. 42 dB (AGC 0 to 30 dB, Night Eye/H)
Iris
Auto (Manual by RCU control)
Video Output
Composite) 1.0 Vp-p/75 Ohms (BNC, D-sub 50P), (Y/C) Y: 1.0 V p-p/75 Ohms; C: 0.286 Vp-p(0.3 Vp-p)/75 Ohms (burst)(D-sub 50p), (Y/Pr/Pb) Y: 1.0 Vp-p/75 Ohms; Pr, Pb: 0.7 Vp-p)/75 Ohms (D-sub 50p), (RGB) G: 1.0 Vp-p/75 Ohms; RB: 0.7 Vp-p/75 ohms (D-sub 50p)
Lens Mount
1/2" Bayonet Mount
Lens diaphragm
Auto, Manual (but only with remote control), adjust ON, OFF
Internal filters
IR Through, Normal, 1/16ND, 1/64ND
Geometric distortion
0%
Selector switches
MENU (up arrow)
ITEM/AWC (down arrow) (AWC: when menu screen is not displayed)
UP/ABC (+) (ABC: when menu screen is not displayed)
NO/BAR (-) (BAR: when menu screen is not displayed)
Power
DC 12 V
Power Consumption
Approx. 11.8 W
Operating Temperature
-10 deg.C to 45 deg.C (14 deg.F to 113 deg.F)
Input/output connectors
VIDEO OUT BNC connector
G/L IN BNC connector
IRIS 12P round connector
DC 12V IN DC connector
I/F REMOTE 50P D-sub connector
Indicator
Red LED; power ON when lighted
Storage temperature
-20 Deg.C to +60 Deg.C
Storage Humidity
20% to 90%
Operation Humidity
20% to 90%
Performance Temperature
+5 Deg.C to +35 Deg.C
Dimensions (W x H x D)
3-5/16" x 3-1/32" x 6-15/16" (84 x 77 x 177 mm)
Weight
2.0 lbs (0.92 kg)
