Panasonic

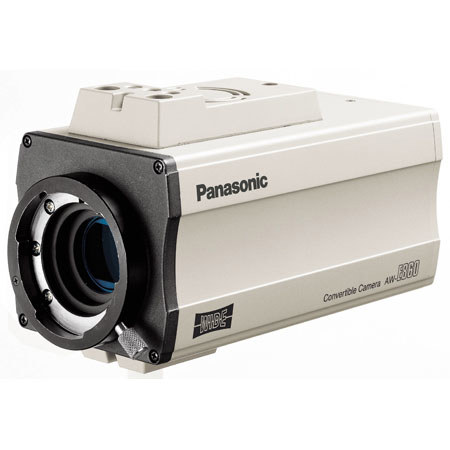

Panasonic AW-E860 2/3" 3-CCD 16:9/4:3 Industrial Color Video Camera, Convertible with Optional Cards, for Pan/Tilt, Studio & Broadcast Applications

SKU: PCAWE860 MFR: AWE860
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 2 - 4 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$9,126.00 List Price

Our Price

$8,610.00
Free Shipping
Qty:

Add to Wishlist

About the Panasonic AW-E860

The Panasonic AW-E860 is a 2/3-inch 3-CCD widescreen industrial camera, which is part of the comprehensive Convertible Camera System. Being "convertible", the camera will accept cards for very specific applications like serial digital output, component analog output, data output to computers, super low-light environments and studio configurations, to name a few. There is a broad range of pan/tilt system components including all-weather housings and remote controllers for inventive and creative production solutions.

Panasonic AW-E860 Includes

  • Panasonic AW-E860 2/3" 3-CCD 16:9/4:3 Industrial Color Video Camera
  • Rubber Sheet
  • Mounting Adapter
  • 2 x Screws
  • Mounting Spacer
  • Panasonic 1 Year Parts & Labor Limited Warranty

Panasonic AW-E860 Features

  • Digital video signal processing for high quality, high reliability, high performance, lightweight and compact size
  • Resolution: 850 lines (HIGH BAND DTL: ON), S/N ratio: 65 dB (DNR ON)
  • Minimum illumination: 0.4 lx (F1.7, Night eye H mode)
  • SET UP menu for system check and readjustments
  • Built-in automatic controls, including ATW, ELC and AGC
  • CCD readout is switchable between field and frame modes. Vertical resolution can be stepped up in frame mode and it is effective for shooting still objects
  • The built-in synchronized scanning system reduces noise in computer graphics
  • Various correction circuits permit video reproduction with high fidelity
  • Chroma detail correction enables clear shots of dark color objects
  • A dark detail circuit provides natural edge correction to any object in a dark scene
  • The 12-axis digital color matrix enables users' to create images of their choice
  • Four use modes for each of your specific applications can be selected
  • SMPTE color bar is indicated on the monitor screen
  • Remote control with a RCU, RCB or a Hybrid control panel
  • Aspect ratio is 16:9 and 4:3 selectable

Panasonic AW-E860 Specifications

Optical system 2/3" Prism optical system, F1.4
Pickup device 2/3" interline wide CCD
Number of valid pixels 948 (H) x 485 (V) (About 460000 pixels)
Total number of pixels 1020 (H) x 505 (V) (About 510000 pixels)
Scanning system 525 lines, 60 fields, 30 flames
Synchronization system Internal synchronization: EIA standard
External synchronization: BBS or VBS (BNC x 1, Dsub 50 P x 1)
Video output Composite: 1.0 Vp-p/75ohms (BNC x 1, Dsub 50 P x 1)
Y/C Y: 1.0 Vp-p/75ohms; C: 0.286 Vp-p/75ohms (burst) (Dsub 50 P x 1)
Y/Pr/Pb Y: 1.0 Vp-p/75ohms; Pr, Pb: 0.7 Vp-p/75ohms (Dsub 50 P x 1)
RGB G: 1.0 Vp-p/75ohms; RB: 0.7 Vp-p/75ohms (Dsub 50 P x 1)
Standard illumination color temperature 2,000 lx (F11, 3200K)
Minimum illumination 0.4 lx (F1.7, Night Eye H)
S/N ratio 65 dB (Y signal, DTL OFF, gamma OFF, DNR ON)
Horizontal resolution 850 TV lines (high band DTL ON, center area)
Registration 0.05 % (Entire screen, excluding effects of lens)
Geometric distortion 0%
Aspect ratio conversion 16:9, 4:3
Contour correction Horizontal, vertical (2H)
White balance AWC A, AWC B (R/B gain, painting), ATW, 3200K, 5600K preset
Black balance Auto (R/B pedestal, painting function)
Chroma amount variability 7 levels variability
Encoding system Y, R-Y, B-Y
Gain selection 0 to 30 dB in step, AGC, Night Eye L/H
Electronic shutter speed 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, ELC, Synchro scan (60.34 Hz to 15.75 kHz)
CCD readout selection Field, Flame 1, Flame 2
Color bars SMPTE
Lens mount 2/3" bayonet mount
Lens diaphragm Auto, Manual (only with remote control), Adjust ON, OFF
Selectors MENU (up arrow)
ITEM/AWC (down arrow) (AWC: when menu screen is not displayed)
YES/ABC (+) (ABC: when menu screen is not displayed)
NO/BAR (-) (BAR: when menu screen is not displayed)
Input/Output connectors VIDEO OUT: BNC connector
G/L IN: BNC connector
IRIS: 12 P round connector
DC 12 V IN: DC connector
I/F REMOTE: 50 P Dsub connector
Indicator Red LED lits: POWER ON
Allowable temperature ranges For storage: -4deg.F to 140deg.F (-20deg.C to +60deg.C)
For guaranteeing performance: 41deg.F to 95deg.F (+5deg.C to +35deg.C)
For guaranteeing operation: 14deg.F to 113deg.F (-10deg.C to +45deg.C)
Allowable humidity ranges For storage: 20% to 90%, for operation: 20% to 90%
Source voltage DC 12V
Power consumption 15.4 W
Dimensions (W x H x D) 3-5/16" x 3-3/4" x 7-9/16" (84 x 95 x 192 mm)
Weight 2.5 lbs (1.15 kg)
