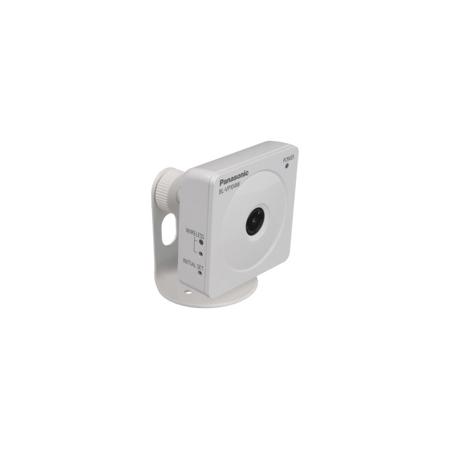

Panasonic BL-VP104WP H.264 Wireless Network Camera, 1.0MP, 4x Digital Zoom, 720p HD Images up to 30 fps

Panasonic
SKU: PCBLVP104WP MFR: BL-VP104WP

Our Price

$129.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic BL-VP104WP

The Panasonic BL-VP104WP HD H.264 Wireless Network Camera features a 1.0 megapixel high-sensitivity CMOS Sensor that allows dual streaming of high quality imagery in H.264 and JPEG formats at a resolution of 1280 x 720p at 30 fps. The progressive scan ensures no tearing and less motion blur, providing clear images even when the subject is moving. The camera also has Wireless LAN function and WPS (Wi-Fi Protected Setup) function. The BL-VP104WP comes with Digital Noise Reduction technology that filters camera signals ensuring clarity in varying conditions. The camera additionally features full frame (up to 30 fps) transmission, electronic sensitivity enhancement, face detection, browser-controlled 4x digital zoom and smart phone monitoring.

Panasonic BL-VP104WP Features

  • HD H.264 Wireless Network Camera
  • 720p HD Images Up To 30 fps
  • Full frame (Up to 30 fps) Transmission at 1280 x 720 Image Size
  • 1.0 Megapixel High Sensitivity CMOS Sensor
  • Multiple H.264 (High profile) & JPEG Streams
  • -Simultaneous Real-Time Monitoring & High-Resolution Recording by UniPhier
  • 4x Digital Zoom Controlled by Browser
  • 1.5x Extra Zoom Under VGA Resolution
  • Digital Noise Reduction
  • 3D-DNR Ensures Noise Reduction in Various Conditions
  • Electronic Sensitivity Enhancement: Auto (Up to 16x) / OFF
  • VMD (Video Motion Detection)
  • 4 Programmable Detection Areas
  • 15 Steps Sensitivity Level
  • 10 Steps Detection Size
  • Face Detection Function
  • Detects the Position of Human Face
  • Information Sent by XML or Video Stream
  • Smart Phone Monitoring
  • Progressive Scan For Clear Images even w/ Subject Moving
  • No Tearing & Less Motion Blur
  • Selectable Light Control Modes
  • Privacy Masking (Up to 2 Zones)
  • High sensitivity w/ Day & Night (Electrical) Function
  • Wireless LAN Function (IEEE802.11 n/b/g): For Monitoring Camera Images Over a Wireless Router

Panasonic BL-VP104WP Specifications

Camera: Image Sensor
1/4 type CMOS Sensor
Camera: Effective Pixels
Approx. 1MP
Camera: Scanning Mode
Progressive
Camera: Scanning Area (H x V)
3.89 x 2.43mm (0.15 x 0.1")
Camera: Minimum Illumination
Color: 0.9 lx (F2.8, Auto slow shutter: Off (1/30s), Gain: On(High))
Color: 0.06 lx (F2.8, Auto slow shutter: Max. 16/30s, Gain: On(High))
BW: 0.6 lx (F2.8, Auto slow shutter: Off (1/30s), Gain: On(High))
BW: 0.04 lx (F2.8, Auto slow shutter: Off (16/30s), Gain: On(High))
Camera: White Balance
AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Camera: Light Control Mode
Indoor scene (50 Hz / 60 Hz) / ELC
Camera: Shutter Speed
ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), ELC (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), ELC (1/10,000 s)
Camera: Adaptive Black Stretch
ON / OFF
Camera: AGC
ON (HIGH) / ON (MID) / ON (LOW) / OFF
Camera: Electronic Sensitivity UP
OFF (1/30 s), Max. 2/30 s, Max. 3/30 s, Max. 4/30 s, Max. 6/30 s, Max. 10/30 s, Max. 16/30 s
Camera: Day & Night (electrical)
OFF / AUTO
Camera: Digital Noise Reduction
HIGH / LOW
Camera: Video Motion Detection
ON / OFF (4 areas available)
Camera: Privacy Zone
ON / OFF (up to 2 zones available)
Camera: Camera Title (OSD)
Up to 20 characters (alphanumeric characters, marks), On/Off
Lens: Focal Length
3.6 mm
Lens: Zoom Ratio
Extra zoom: 1.5x (at VGA resolution)
Lens: Angular Field of View
Horizontal: 57 deg., Vertical: 34 deg.
Lens: Maximum Aperture Ratio
1: 2.8
Lens: Focusing Range
0.4 m - infinity
Browser GUI: Camera Control
Brightness
Browser GUI: Display Mode
Spot, Quad: Image from 16 cameras can be displayed in 4 different Quad
Screens or 16 split screen (JPEG only). 20 characters camera title available.
Browser GUI: Zoom
Extra zoom(1x - 1.5x) and the electronic zoom (higher zoom factors, up to 6x).
Browser GUI: Camera Title
Up to 20 alphanumeric characters
Browser GUI: Clock Display
Time: 12H/24H, Date: 5 formats on the browser, Summer time (Manual)
Browser GUI: Alarm Control
Reset
Browser GUI: One Shot Capture
A still picture will be displayed on a newly opened window.
Browser GUI: GUI/Setup Menu Language
English / Italian / French / German / Spanish / Russian / Chinese / Japanese
Browser GUI: System Log
Up to 100 (Internal), error logs
Browser GUI: Supported OS
Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
Browser GUI: Supported Browser
Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit),
Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Network: IF
10Base-T / 100Base-TX, RJ-45 connector (female)
Network: Image Resolution
Aspect ratio: [4: 3] H.264: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
JPEG: VGA (640 x 480) / QVGA (320 x 240), up to 30 fps
Aspect ratio: [16: 9]H.264: 640 x 360 / 320 x 180, up to 30 fps
JPEG: 640 x 360 / 320 x 180, up to 30 fps
Network: H.264 - Transmission Mode
Constant bitrate / Frame rate / Best effort
Network: H.264 - Frame Rate
1 / 3 / 5 / 7.5 / 10 / 12 / 15 / 20 / 30 fps
Network: H.264 - Bit Rate/Client
64 / 128 / 256 / 384 / 512 / 768 / 1,024 / 1,536 / 2,048 / 3,072 / 4,096 / 8,192 kbps
Network: H.264 - Image Quality
LOW / NORMAL / FINE
Network: H.264 - Refresh Interval
1 fps - 30 fps
Network: H.264 - Transmission Type
UNICAST / MULTICAST
Network: JPEG - Image Quality
10 steps
Network: JPEG - Refresh Interval
0.1 fps - 30 fps
Network: JPEG - Transmission Type
PULL / PUSH
Network: Supported Protocol
IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, MLD, ICMP, ARP
IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP
Network: FTP Client
Alarm image transmission, FTP periodic transmission
Network: No. of Simultaneous Users
Up to 14 users (Depends on network conditions)
Network: Face Detection
ON / OFF (with XML notification)
Network: Cellular Phone Compatibility
JPEG image
Network: Mobile Terminal Compatibility
iPad, iPhone, iPod touch (iOS 4.2.1 or later) android mobile terminals
Alarm: Source
VMD, Command alarm
Alarm: Actions
E-mail notification, Indication on browser, FTP image transfer, Panasonic protocol output
Pan & Tilt Unit: Panning Range
-41 to 41deg.
Pan & Tilt Unit: Panning Speed
Manual: approximately 0.5 to 50deg./s, Preset: Up to approximately 50deg./s
Pan & Tilt Unit: Tilting Range
-32 to 10deg.
Pan & Tilt Unit: Tilting Speed
Manual: approximately 0.5 to 50deg./s, Preset: up to approximately 50deg./s
Pan & Tilt Unit: No of Preset Positions
64
Pan & Tilt Unit: PTZ Position Display
On / OffActions
Pan & Tilt Unit: Self Return
10 s/ 20 s/ 30 s/ 1/ 2 / 3 / 5 / 10 / 20 / 30 / and 60 min
Pan & Tilt Unit: Map Shot
Preset
Wireless Camera: Antenna
1 x 1 (diversity)
Wireless Camera: Transmission
SISO (single input / single output), OFDM, OFDM, DSSS
Wireless Camera: Frequency Range
2.412 to 2.462 GHz (1-11 channel)
Wireless Camera: Data Transfer Rate
IEEE802.11n: 6.5 to 72.2 Mbps IEEE802.11g: 6 to 54 MbpsIEEE802.11b: 1 to 11 Mbps 1
Wireless Camera: Access Methods
Infrastructure mode
Wireless Camera: Authentication
Open system
Wireless Camera: Security
WPA / WPA2-PSK (TKIP / AES) WEP (64 bit / 128 bit)
Alarm: Schedule
VMD
Alarm: Sensor Detection Method
Pyroelectric infrared sensor
Alarm: Sensor Detection Range
About 5 m (with temperature at 20deg.C and normal sensitivity), Horizontal: 28deg., Vertical: 71deg.
Microphone
Line Input: Internal microphone
Audio Output
Internal speaker
External I/O Terminals
Alarm In 1, 2 / Alarm Out, Alarm In 3 / AUX Out, GND
Safety/EMC Standard
Safety UL60950-1 Ed.2, C22.2 NO.60950-1 Ed.2EMC FCC Part15
ClassB
Wireless FCC Part15C
Power Source & Power Consumption
6.5 V DC (Use only with Panasonic AC adapter)
Max 3.5 W (120 VAC / 60 Hz)
Ambient Operating Temperature
0 deg.C - 40 deg.C (32 deg.F - 104 deg.F)
Ambient Operating Humidity
Less than 90 % (no condensation)
Dimensions (W x H x D)
2.91 x 2.91 x 3.5" / 74 x 74 x 89mm
Mass
0.18lbs / 0.08kg (Approx.)
