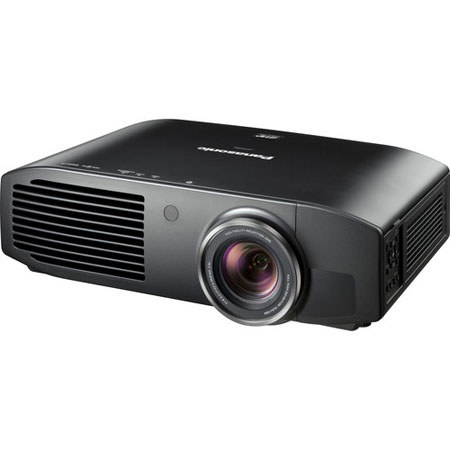

Panasonic PT-AE7000U HD 3D Home Cinema Projector, 2000 Lumens, Red Rich Lamp, Full HD Optimized Lens, HDMI x3, Dynamic Iris, 2x Optical Power Zoom/Focus

Panasonic PT-AE7000U: Picture 1 thumbnail Panasonic PT-AE7000U: Picture 2 thumbnail Panasonic PT-AE7000U: Picture 3 thumbnail Panasonic PT-AE7000U: Picture 4 thumbnail Panasonic PT-AE7000U: Picture 5 thumbnail Panasonic PT-AE7000U: Picture 6 thumbnail Panasonic PT-AE7000U: Picture 7 thumbnail Panasonic PT-AE7000U: Picture 8 thumbnail Panasonic PT-AE7000U: Picture 9 thumbnail
23% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-AE7000U

The Panasonic PT-AE7000U HD 3D Home Cinema Projector maximizes the image quality of the full-HD content in Blu-ray discs and HD broadcasts for large screen viewing and adds a newly engineered red rich lamp and optical system that achieves a 300,000:1 contrast ratio and 2000 lumens of brightness.

The incorporation of the red rich lamp increases the luminance efficiency of the projector, to achieve 150% brighter cinema picture modes compared to its predecessor. Prior to the development of the red rich lamp, much brightness was lost to attain the desired color purity/balance for the rich color reproduction of cinema picture modes due to the lack of red luminance.

A variety of advanced signal-processing technologies, beginning with Detail Clarity Processor 3 and Frame Creation2, push the performance level of the LCD projector to an entirely new level of picture quality and provide viewers with the true beauty of full-HD images. Detail Clarity Processor 3 brings greater clarity and sharpness to details, by reproducing fine nuances that were lost due to image compression. After a two dimensional analysis of the video signal's frequency in each scene, the new circuit optimizes the sharpness of each image portion based on the extracted information. The resulting images have a more natural, lifelike expression than those of previous image-processing methods.

Frame Creation2 offers a double-speed display (120Hz or 100Hz) greatly improves the clarity of motion images. Frame Creation2 interpolates one new frame for each existing frame by analyzing the characteristics of the adjacent frames to reproduce sharp and clear images for fast moving. Finally, Panasonic works from every angle to minimize environmental impact in the product design, production and delivery processes and in the performance of the product itself over its life cycle.

Panasonic PT-AE7000U Features

  • Red Rich Lamp: The incorporation of the new red rich lamp increases the luminance efficiency of the projector, to achieve 150% brighter cinema picture modes compared to its predecessor. With the ability to produce a stunning brightness of 2000 lumens
  • Full HD Optimized Optical System: To assure maximum clarity and sharpness in full HD images, this advanced optical system employs a full-HD-optimized lens unit comprising of 16 lens elements in 12 groups, including two large diameter aspherical lenses and two high-performance ED lenses
  • Pure Contrast Plates Deliver High 300,000:1 Contrast Ratio: The pure contrast plates in the PT-AE7000U use a newly engineered crystalline material that is carefully matched to the characteristics of the LCD panels to effectively correct the passage of light exiting the panels
  • 480Hz Compatible LCD Panels: The PT-AE7000's full-HD LCD panels provide more brightness with higher aperture ratio. The panels are also designed for 480Hz processing capability for brighter 3D image
  • Pure Color Filter Pro for Rich, Vibrant Colors: The optical filter optimizes the light spectrum from the UHM projector lamp, helping to produce deeper blacks while improving purity levels in the three primary colors (red, green and blue)
  • Dynamic Iris Adds Beauty to Both Dark and Bright Scenes: The fifth generation intelligent iris system works by analyzing the brightness level of each image using a histogram, then adjusting the lamp power, iris and gamma curve accordingly to create the ideal image
  • Full-HD LCD Panels Enhance Motion Response: The PT-AE7000U's full-HD LCD panels have a double speed drive capability that improves the projection clarity of moving images. These high-precision panels use vertically aligned liquid crystal molecules with inorganic alignment layers
  • Smooth Screen Technology Creates Film-Like Texture: While many LCD projectors suffer from a chicken wire effect, Panasonic's pursuit of the highest possible image quality has successfully overcome this device limitation through the incorporation of smooth screen technology
  • Frame Creation2 Featuring Motion Blur Reduction: A double speed display (120Hz or 100Hz) greatly improves the clarity of motion images. For 24p signal input, three frames are calculated and interpolated for each existing frame, to enable 4x speed (96Hz) display
  • Waveform Monitor for Precise Calibration: When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced
  • 16-Bit Gamma Correction for Natural Gradations: The PT-AE7000U handles up to 16-bit (full 12-bit) digital image processing. It faithfully reproduces even subtle hues and brightness variations
  • Advanced Gamma Adjustment Function: The gamma curve can be flexibly controlled, allowing precise calibration according to the signal source and environment. Brightness Y, R, G and B can each be adjusted at any nine points
  • 3D Picture Balance with Waveform Monitor: The difference may occur due to poor content quality. With the waveform monitor displayed, you can adjust the contrast, brightness, color and tint as desired and up to three adjustment settings can be stored in memory for instant recall
  • Built-in 3D Infrared Transmitter: The PT-AE7000 comes equipped with a built-in transmitter with maximum transmission distance of 20' (6 m). For more range up to 33' (10 m), an optional infrared transmitter, ET-TRM110 is available for greater installation flexibility
  • 3D Viewing Monitor for Adjustment of Depth-of-Field: The projection size for viewing 3D images can be selected from among nine different sizes, ranging from 40-200" (1-5 m) diagonally
  • Simple Maintenance: For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The dust filter and lamp are easily replaced even after the PTAE7000U is installed on the ceiling
  • Programmable 12V Trigger for Automated Theater Setup: Two 12V triggers are provided. Since the input and output can be set independently (menu selectable), they can link with powered screens, room light and powered curtains
  • HDMI with x.v.Color Deep Color: The PT-AE7000U has three HDMI input terminals for digital transmission without image degradation. The HDMI input terminals also support deep color and the x.v.Color space of the HDMI 1.3 standard
  • Newly Developed Dual Core Processing Engine: High quality 2D image processing, including Frame Creation2 and detail clarity processor, can now be enjoyed in 3D as well, with the incorporation of the newly developed dual core processing engine
  • Split Adjust Mode for Easy Picture Adjustment: You can freeze any scene you wish and then make adjustments while easily comparing the original image and the adjusted image side-by-side
  • Other Ecological Considerations: An off-timer that reduces wasteful power consumption, RoHS compliance, Lead-free solder for mounting components to printed circuit boards, No vinyl chloride in interior wiring, No halogenated flame retardants in the cabinet, Lead-free glass for the lens
  • Up to 5000-Hour Lamp Replacement Cycle and Simple Maintenance: Panasonic's proprietary lamp drive system helps maintain lamp performance, resulting in an up to 5000 hour lamp replacement cycle. The dust filter and lamp are easily replaced even after the PT-AE7000 is installed on the ceiling
  • Other Features: Seven picture mode includes cinema 1, cinema 2, cinema 3, normal, dynamic, color 1 and color 2, 3D noise reduction for high precision noise detection and reduction, Scene adaptive MPEG noise reduction effectively blocks regular noise and minimizes mosquito noise,
  • Other Features: Up to sixteen sets of adjustment settings can be stored in memory with custom names that make them easy to remember, Masking function to match the desired projection area to the screen, User-friendly ergonomic remote control, Built-in test pattern including color bar and gray scale

Panasonic PT-AE7000U Specifications

Projector Display System
0.74" Diagonal Transparent LCD Panel (x 3, R/G/B)
Drive Method: Active Matrix
Native Resolution
1920 x 1080
Uniformity: 85%
Number of Pixels
2,073,600 (1920 x 1080) x 3, Total of 6,220,800 Pixels
Lumens Brightness
2000 Lumens
Contrast Ratio
300,000:1 (Full On/Full Off)
Aspect Ratio
Native 16:9
Image Display RGB
fH: 15-74kHz, fV: 24-85 Hz
Dot Clock: Less than 154MHz
Image Display S-Video
fH: 15.75kHz, fV: 60Hz (NTSC, NTSC4.43, PAL-M, PAL60)
fH: 15.63kHz, fV: 50Hz (PAL, PAL-N, SECAM)
Image Display System
Image Display HDTV Compatibility
480i (525i), 480p (525p), 576i (625i), 576p (625p), 720 (750)/50p, 720 (750)/60p, 1080 (1125)/24p, 1080 (1125)/50i, 1080 (1125)/50p, 1080 (1125)/60i, 1080 (1125)/60p
F1.9-3.2, f22.4mm-44.8mm
Focus/Zoom Adjusting
Powered Zoom/Focus Lens (1.35-2.70:1)
Lens Shift
Vertical: ±100%, horizontal: ±26%
Projection Size
2D Projection: 40-300" (1.02-7.62 m)
3D Projection: 40-200" (1.02-5.08 m)
Input Terminals
HDMI x 3
Computer (D-Sub HD 15-Pin Female) x 1
Component RCA Pin (Y, PB/CB, PR/CR) x 1
12 V Trigger (I/O Selectable) M3 x 2
S-Video (Mini DIN 4-Pin) x 1
Video (RCA Pin x 3)
RS-232 (D-Sub 9-Pin) x 1
Lamp (Bulb)
200W UHM Lamp
Fan Noise
22 dB Eco Mode
Remote Control
Power Requirements
100-240V AC, 50/60Hz
Power Consumption
200W (Approx. 0.08W in Standby Mode with Fan Stopped)
Operating Temperature
32-104deg.F (0-40deg.C)
20-80% (No Condensation)
Dimensions (W x H x D)
18.53x5.40x14.59" (47.06x13.71x37.05cm)
19.20lbs (8.70kg)
