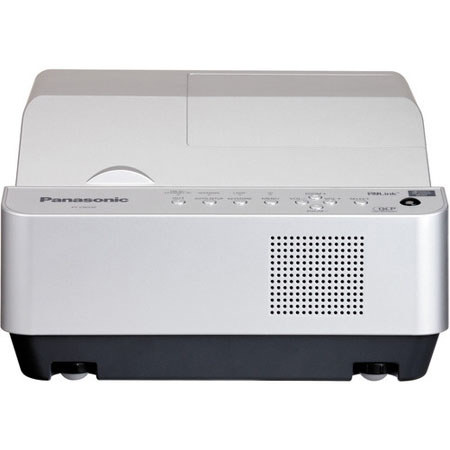

Panasonic PT-CW230U Ultra-Short Throw 1-Chip DLP Projector, 2,500 Lumens, 16:10 Aspect Ratio, WXGA 1280x800 Resolution, Built-in Speaker

Panasonic PT-CW230U: Picture 1 thumbnail Panasonic PT-CW230U: Picture 2 thumbnail Panasonic PT-CW230U: Picture 3 thumbnail Panasonic PT-CW230U: Picture 4 thumbnail Panasonic PT-CW230U: Picture 5 thumbnail Panasonic PT-CW230U: Picture 6 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $89.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $148.95
  • New Leaf 5 Year Extended Warranty + $168.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $251.95
38% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Panasonic PT-CW230U: Picture 1 regular $1,249.00

About Panasonic PT-CW230U

The Panasonic PT-CW230U Ultra-Short Throw 1-Chip DLP Projector is designed for use in classes, seminars, events and exhibitions to make the 3D projections more effective and impressive. This projector can project images onto a large 80" (203.2 cm) screen with a short projection distance of 1.05' (0.32 m). It can be installed either horizontally or vertically to meet various installation requirements.

Projection onto a Wide Screen with a Short Projection Distance Allowing 4 Types of Installation. There is no need to worry about the glare of the projection light and the presenter's shadow on the screen. The projector can be installed either horizontally or vertically on a table, wall, ceiling or floor to enable new uses and meet installation requirements.

Panasonic PT-CW230U Features

  • NVIDIA 3D Vision: You can enjoy vivid 3D worlds with the help of NVIDIA 3D Vision such as powerful high-definition games, digital photos, 3D Blu-ray Discs & streaming movies and videos
  • DLP Link: As synchronized signals are contained in 3D images that you view, you can build the 3D system with the help of DLP Link without connecting the emitter
  • IR System: With the help of the IR System, 3D SYNC OUT terminal and the IR emitter are connected to build the 3D system
  • DLP System Maintains Long-lasting, Stable Performance: In the DLP system, the image quality does not degrade with time due to the long life of the device. You can use the projector for various systems over a long period of time without worry of quality loss
  • Good Performance: High brightness of 2,500 lumens and a 10 W high-output speaker meet your meeting / seminar room needs. The high brightness ensures bright and easy-to-see image projection
  • Good Performance: Ensuring a 3,000 hour lamp replacement cycle & a 4,000 hour air filter replacement cycle, which reduce the hassle and cost of maintenance for a long time and minimize environmental impact
  • Good Performance: Quiet 28 dB design does not interrupt meetings or classes as the sound of the cooling fan is hardly noticeable. The audience can concentrate on the presentation and the screen images even during quiet scenes
  • Good Performance: Extensive interfaces, including 2 sets of computer (RGB) input terminals (1 set is switchable to output) and an HDMI input terminal, allow a wide range of system configurations
  • Good Performance: When the Standby mode is changed to the Eco mode, the standby power consumption is as low as 0.45 W, reducing running cost and effects on the environment
  • Direct Power Off" Right after Use: The breaker in the room can be directly turned off without operating the power switch of the ceiling-mounted projector. You can leave the room immediately after the meeting or the class. Thus, you can switch off the power right after use
  • Easy to Replace the Lamp and Air Filters: You can easily replace the lamp and air filters from the top of the projector. There is no need to detach the projector from the ceiling bracket
  • Wireless Remote Control: The wireless remote control is convenient when using more than one projector. A maximum of 2 IDs can be set up, allowing individual remote control of each projector
  • Eco-Friendly: No halogenated flame retardants are used in the cabinet, Lead-free glass is used for the lens, Low standby power of 0.45 W, Switchable lamp mode
  • 3D projection onto a wall, floor, or ceiling makes your event more successful
  • Short-throw, large screen (110" / 279.4 cm maximum) projection is effective for showroom / shop-window display
  • Powerful and large-screen 3D projection in limited booth space, enhancing the appeal of products and services
  • Powerful 3D projection is real and appealing, increasing visitors' satisfaction

Panasonic PT-CW230U Specifications

Display System
1-Chip 0.65" / 16.51 mm DLP
Native Resolution
WXGA - 1280x800
Normal Mode: 2500 Lumens
Aspect Ratio
Contrast Ratio
Screen size
1.52-2.79m / 60-110"
F 2.5 (f = 4.83 mm)
Throw Ratio
Projection Size
60 - 110" / 1524.00 - 2794.00mm
Horizontal: 15 - 93 kHz / Vertical: 50 - 120 Hz, Dot clock: 150 MHz or lower
RGB (analog)
Horizontal: 15 - 93 kHz / Vertical: 50 - 120 Hz, Dot clock: 150 MHz or lower (signals above 150 MHz are down sampled)
YPbPr (YCbCr)
fH 15.75 kHz, fV 60 Hz (480i [525i])
fH 31.50 kHz, fV 60 Hz (480p [525p])
fH 45.00 kHz, fV 60 Hz (720 [750]/60p)
fH 33.75 kHz, fV 60 Hz (1080 [1125]/60i)
fH 15.63 kHz, fV 50 Hz (576i [625i])
fH 31.25 kHz, fV 50 Hz (576p [625p])
fH 37.50 kHz, fV 50 Hz (720 [750]/50p)
fH 28.13 kHz, fV 50 Hz (1080 [1125]/50i)
Video / S-Video
fH: 15.75 kHz, fV: 60 Hz [NTSC / NTSC4.43 / PAL-M / PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL / PAL-N / SECAM]
Keystone Correction
Yes, Vertical: ± 5deg.
Ceiling Mountable
Rear Screen Projection
Built-in Speaker
Size: 3.7cm (1.45") (round)
Output Power: 10W (Monaural)
Lamp (Bulb)
1x UHM
Normal Mode: 3000 Hours
HDMI 19 pin x1 (HDCP compatible)
Audio signal: Linear PCM (Sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Computer IN 1
D-sub HD 15 pin (female) x1 (RGB / YPb [Cb], Pr [Cr] x1)
Computer IN 2
D-sub HD 15 pin (female) x 1 (RGB x1) (IN / OUT selectable using on-screen menu)
Monitor OUT
D-sub HD 15 pin (female) x 1 (When Monitor OUT is selected, COMPUTER IN 1 signal is output.)
Video IN
RCA pin x1
S-Video IN
Mini DIN 4 pin x1
Computer audio IN
M3 x2 (L, R x1)
Audio IN
RCA x2 (L, R x1) for VIDEO / S-VIDEO IN
Audio OUT
M3 x1 (L, R x1)
Serial IN
D-sub 9 pin (female) x1, for external control (RS-232C compliant)
RJ-45 x1 (for network connection, 10Base-T/100Base-TX, Compliant with PJLink, Class 1)
3D Sync OUT
Min DIN 3 pin x1 (for 3D transmitter connection)
Operating noise
36 dB (Lamp mode: Normal)
28 dB (Lamp mode: ECO)
Power cord
3 m
Cabinet material
Molded plastic
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
Normal Mode: 350W
0.45 W when Standby mode is set to ECO
11.0 W when Standby mode is set to Network)
0deg. - 40deg.C (Less than 1,000 m above sea level)
0deg. - 30deg.C (1,000 - 2,700 m above sea level)
20% - 80% (no condensation)
Dimensions (WxHxD)
357x250x367mm (14.05x9.84x14.44")
13.70lbs (6.20kg)
