Panasonic

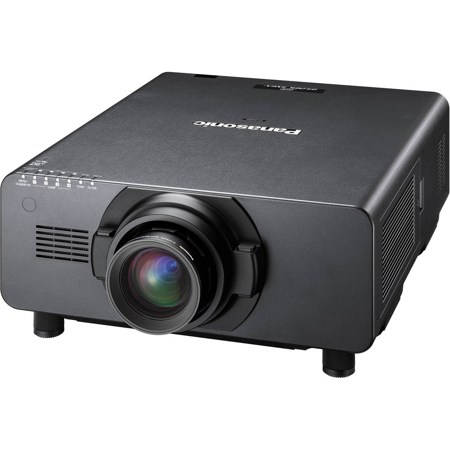

Panasonic PT-DS20KU 3D Ready DLP Projector, 20,000 ANSI Lumens, 1400x1050 Native Resolution, High Power 4-Lamp System, No Lens

SKU: PCPTDS20KU MFR: PT-DS20KU
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$86,599.00 List Price

Our Price

$45,499.00 $1768 per week
Free Shipping
Qty:
Add to Wishlist

About the Panasonic PT-DS20KU

The Panasonic PT-DS20KU DLP Projector is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, staging and public advertising as well as premium home theater applications. This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. It provides highly comfortable viewing even in bright lighting and allows viewers to concentrate easily on the images.

Panasonic's unique quad-lamp system, with its high-power UHM lamps, has helped to make the body extremely compact while providing an astounding 20,000 lumens of brightness. The lamp relay mode also operates the lamps alternately to enable 24/7 projection. Featuring Texas Instruments DLP and SXGA+ (1400 x 1050), the PT-DS20KU projector delivers outstanding image quality to improve the color perception of the projected image in bright rooms.

The 3-chip system with DLP technology delivers great image resolution, considered among the most advanced projector engines. This gives superior light utilization for high brightness, digital processing for low noise and linear white balance, extended device life for minimal image degradation and a quick response that eliminates afterimages.

The projector provides a liquid cooling system that directly cools the DLP chip to improve performance and enable operation up to 113deg.F (45deg.C). It allows quiet (49 dB) and versatile use while stabilizing performance. It also helps to make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid.

With fantastic durability, bright light output, excellent color quality and full HD playback from a variety of digital and analog input sources; the PT-DS20KU DLP projector is an ideal partner for modern, high-end laptops with full HD resolution.

Panasonic PT-DS20KU Includes

  • Panasonic PT-DS20KU 3D Ready DLP Projector
  • 9.8' (3 m) Power Cord with Secure Lock
  • Wireless/Wired Remote Control
  • AA-Type Batteries (2)
  • Panasonic 3 Years Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-DS20KU Features

  • Incredible 20,000 Lumens of Brightness: Panasonic's unique quad-lamp system, with its high-power UHM lamps, has helped to make the body extremely compact while providing an astounding 20,000 lumens of brightness
  • Dynamic Iris for a High 10,000:1 Contrast Ratio: Panasonic's dynamic iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks and provides images with more detailed textures
  • Detail Clarity Processor 3: This unique Panasonic circuit optimizes the sharpness of each image, based on the superhigh-, high-, medium- and low-frequency components of the extracted image information. The resulting images have more natural, lifelike expression
  • Active 3D Projection Capability: The series is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images
  • 3D color management system / Full 10-bit image processing / Progressive cinema scan (3:2 pulldown) / Dynamic sharpness control / Digital noise reduction / IP conversion / AI scene control / 2:2 pulldown mode / sRGB compatibility / Fine-adjustable color temperature / Waveform monitor function
  • Low TCO and an Environmentally Friendly Design: The projector provides a lower total cost of ownership (TCO) because it has a lamp replacement cycle of up to 2000 hours. It's environmentally friendly design also includes a low power consumption of 2300W
  • System Daylight View 2: This unique technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000 lumens, it provides highly comfortable viewing even in bright lighting & allows viewers to concentrate easily on the images
  • DICOM Simulation Mode: This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity
  • Four-Lamp System Enables Stable, Extended Operation: The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, triple, dual and single lamp modes can be used
  • Easy Lamp Replacement: For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked
  • Liquid Cooling System Attains a High Level of Reliability: This new liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 113deg.F (45deg.C). It allows quiet (49 dB) and versatile use while stabilizing performance
  • Eco Filter that Needs No Maintenance for up to 12,000 Hours: The eco filter has an electrostatic micro cut filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions
  • Flexible Installation: The wide adjustment range of the powered horizontal / vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360deg. vertically, to accommodate various installation conditions
  • Multi-Unit Brightness Control: This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system
  • Geometric Adjustment for Specially Shaped Screens: This function adjusts the image for projection onto spherical, cylindrical and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed
  • Multiple Terminals: The projector has an array of terminals, including DVI-D, HDMI and two RGB inputs. The unit features a 3D ready HD / SD-SDI input and 3D sync terminals to connect an emitter for 3D projection
  • Multi Projector Monitoring & Control Software Ver. 2.7: Panasonic's Multi Projector Monitoring and Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring / controlling PC
  • Edge blending: The edges of adjacent screens can be blended and their luminance controlled
  • Color matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control
  • Multi-screen processor: The beamer can project large, multi-screen images without any additional equipment. Up to 100 units (10 x 10) can be edge-blended at a time

Panasonic PT-DS20KU Specifications

Panel Size 24.1 mm (0.95") diagonal (4:3 aspect ratio)
Display Method DLP chip x 3, DLP projection system
Pixels 1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
Lamp 465 W UHM lamp x 4, replacement cycle of up to 2,000 hours
Brightness 20,000 lm (four-lamp)
Contrast Ratio 10,000:1 (full on/off, with dynamic iris set to "3" )
Resolution 1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Lens Optional powered zoom and fixed-focus lenses
Projection Size (Diagonal) 1.78 - 15.24 m (70 - 600 inches)
1.78 - 7.62 m (70 - 300 inches) with the ET-D75LE5
4:3 aspect ratio
Optical Axis Shift Vertical: ±50 % (±40 % with the ET-D75LE6) from center of screen (powered)
Horizontal: ±30 % (±20 % with the ET-D75LE6) from center of screen (powered)
Scanning Frequency - SD-SDI fH: 27 - 100 kHz, fV: 24 - 120 Hz, dot clock: 25 - 162 MHz
Scanning Frequency - HD-SDI SMPTE ST 292 compliant, YCBCR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
Scanning Frequency - Dual-link HD-SDI: SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, [X,Y,Z, 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF
Scanning Frequency - 3G-SDI: SMPTE ST 424 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, [RGB 4:4:4 12-bit /10-bit]1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
Scanning Frequency - HDMI/DVI-D 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25--162 MHz
Scanning frequency - RGB fH: 15 - 100 kHz, fV: 24 - 120 Hz, dot clock: 20 - 162 MHz
Scanning Frequency - Video/Y/C fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
SDI 1 IN BNC x 1 (3G/HD/SD-SDI)
SDI 2 IN BNC x 1 (HD/SD-SDI)
3D SYNC IN/OUT BNC x 1 (3D timing signal)
3D SYNC OUT BNC x 1 (3D timing signal)
DVI-D in DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO In BNC x 1 (composite video)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)
Keystone correction range Vertical: ±40deg., horizontal: ±15deg.
Power Supply 200-240 V AC, 50/60 Hz (Max current requirements: 12 A at 200 V)
Power Consumption 2,300 W (0.3 W with STANDBY MODE set to ECO, 9 W with STANDBY MODE set to NORMAL)
Dissipation BTU Max. 7,848 BTU/hour (without light output: 7,585 BTU/hour)
Operation noise 49 dB (quad lamp operation)
Operating temperature 0-45 deg.C (32-113 deg.F4)
Operating humidity 20-80 % (no condensation)
Dimensions (WxHxD) 24.41x11.46x31.50" (62.00x29.10x80.01cm)
Weight Approximately 94.8lbs (43.00kg)
