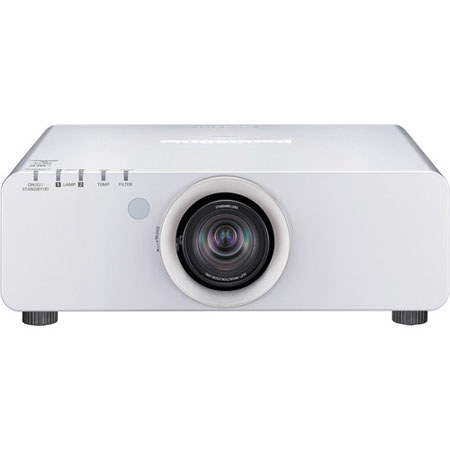

Panasonic PT-DW640US 1-Chip DLP Projector, 6000 Lumens Brightness, 1280x800 Resolution, 2000:1 Contrast Ratio, HDMI, 280 W Lamp Power, Silver

Panasonic PT-DW640US: Picture 1 thumbnail Panasonic PT-DW640US: Picture 2 thumbnail
47% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-DW640US

The Panasonic PT-DW640US WXGA Multi-Region DLP Projector features WXGA 1280 x 800 native resolution, DLP chip technology and a dual 280W lamp system that produces a brightness of up to 6000 lumens. Plus, the iris automatically adjusts to match the situation, which results in a 2000:1 contrast ratio. The PT-DW640US is also compatible with multiple lenses for a variety of projecting situations including short-throw, long-throw zoom and fixed-throw lenses for rear projection. The additional optional lenses enhance the projector's overall flexibility.

The projector is also equipped with a variety of input options including HDMI, DVI-D, VGA and more. It supports LAN connectivity as well, which affords compatibility with Crestron and PJ-Link. The PT-DW640US also supports vertical ± 40deg. keystone correction and an Eco-mode standby power consumption of only 0.2W for increased energy savings. Other features include a quiet 29 dB noise level in Eco-mode, a wired / wireless remote controller and multi-system compatibility for use with NTSC, PAL and SECAM video systems.

Panasonic PT-DW640US Features

  • High Brightness & Contrast: Even with its light, compact body, the projector produces a brightness of 6000 lumens. In addition, the iris automatically adjusts itself to match the situation, resulting in high contrast ratio of up to 2000:1
  • WXGA 1280 x 800 Native Resolution with Full HD Resolution Support: In response to the increasing popularity of widescreen image viewing, including Blu-ray content, the projector features a native WXGA resolution as well as support for Full HD viewing
  • Daylight View Basic Function: Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms
  • Dual Lamp System: The projector features a dual lamp system that includes dual 280W UHM lamps that can be used independently or together to generate a high brightness up to 6000 lumens
  • Environmentally Friendly Standby Power Consumption of Only 0.2W: When the Standby Eco mode is on, the power consumption is only 0.2W. This lowers running costs and helps to reduce environmental impact

Panasonic PT-DW640US Specifications

Display System
1-Chip 0.65" / 16.5 mm DLP
Native Resolution
WXGA - 1280 x 800
Supported Resolutions
VGA400 - 640 x 400
VGA480 - 640 x 480
SVGA - 800 x 600
MAC16 - 832 x 24
XGA - 1024 x 768
MXGA - 1152 x 864
MAC21 - 1152 x 870
MSXGA - 1280 960
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
WXGA - 1280 x 800
WXGA 0-1 - 1280 x 768
WXGA+ - 1440 x 900
WSXGA+ - 1680 x 1050
UXGA - 1600 x 1200
Full HD 1080p - 1920 x 1080
WUXGA - 1920 x 1200
NTSC 4.43
PAL 60, M, N
HDTV Compatibility
1080p at 60 Hz
1080p at 50 Hz
1080p at 30 Hz
1080p at 48 Hz
1080p at 24 Hz
1080p at 25 Hz
1080i at 60 Hz
1080i at 50 Hz
1035i at 60 Hz
720p at 60 Hz
720p at 50 Hz
576p at 50 Hz
576i at 50 Hz
480p at 60 Hz
480i at 60 Hz
6000 Lumens
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
Contrast Ratio
Horizontal: 15 - 91 kHz
Vertical: 50 - 85 Hz
F 1.7 - 2.0 (f = 25.6 - 33.8 mm)
Lens Shift
Vertical: +60%
Horizontal: ±10%
Powered: 1.8-2.4x
Projection Size
50 - 600" / 127.00 - 1524.00 cm
Keystone Correction
Vertical: ± 40deg.
Ceiling Mountable
Rear Screen Projection
Projection Tilt Option
1x DVI-D Video (Input)
1x HDMI Video (Input)
1x 15-pin VGA Video (Input)
1x 5-BNC Video (Input)
1x BNC Video (Input)
1x S-Video Video (Input)
1x Ethernet LAN (Input/Output)
1x RS-232C Control (Input)
1x RS-232C Control (Output)
1x RS-232C Remote (Input)
1x M3 Remote (Input)
1x M3 Remote (Output)
Lamp (Bulb)
2x UHM
Fan Noise
Normal Mode: 35 dB
Eco Mode: 29 dB
Maximum Pixel Clock
162 MHz
Remote Control
Cable Lock Slot
Power Requirements
120-240 VAC, 50/60 Hz
Power Consumption
Normal Mode: 710W
Standby Mode: 6W
Eco Mode: 0.2W
8858' (2700 m)
Operating: 32 to 113 deg.F (0 to 45 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD)
19.6x6.9x17.3" (49.78x17.52x43.94cm) projector with supplied lens
35.27lbs (15.99kg) projector with supplied lens
