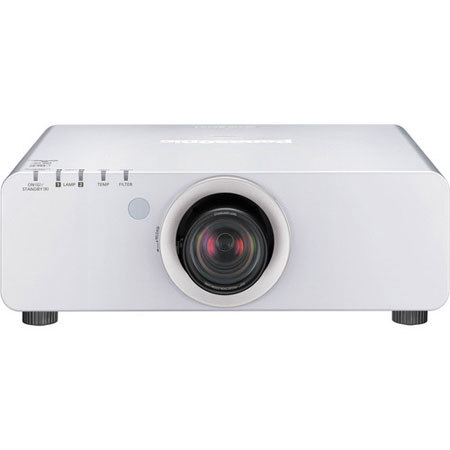

Panasonic PT-DW740US WXGA DLP Projector, 7000 Lumens Brightness, HDMI/VGA In, 300 W Lamp Power, Silver

Panasonic PT-DW740US: Picture 1 thumbnail Panasonic PT-DW740US: Picture 2 thumbnail Panasonic PT-DW740US: Picture 3 thumbnail Panasonic PT-DW740US: Picture 4 thumbnail

List Price: $11,699.00

47% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-DW740US

The Panasonic PT-DW740US 1-Chip DLP Projector (Silver) is a compact but powerful projector. It features an RGB booster to ensure the projection of vivid images, an eco filter to eliminate the need for filter replacement for up to 12,000 hours and a flexible system configuration.

The RGB booster achieves high image quality with high levels of color reproduction and brightness to make each color stand out. It combines vivid color control technology with a newly engineered lamp modulation drive system for the 1-chip DLP projector. Image quality is given more depth with the inclusion of the detail clarity processor. This advanced image-processing circuit analyses the video signal frequency range for each scene by extracting data on the distribution of high-, mid- and low-frequency components and brings out fine details accordingly. The resulting images have a more natural and 3-dimensional appearance with crisp and clear detail.

The wide adjustment range of the powered horizontal / vertical lens shift function assures convenience and versatility during installation. It lets you make adjustments easily with the remote control. The unit can also be rotated 360deg. vertically, which means that you can install it at any angle you want to accommodate different installation conditions.

A web browser on a computer connected through a wired LAN system lets you remotely operate this projector. An email messaging function can also notify you when a lamp needs replacement and indicate the overall projector status. In addition, multi-projector monitoring and control software is included for monitoring and controlling multiple projectors from a single PC. The wired LAN terminal is compatible with PJLink (Class 1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors.

The Eco Filter has a replacement cycle of up to 12,000 hours, which reduces the hassle of maintenance. As an environmental consideration, the filter can be washed with water and reused. This projector also benefits from a liquid cooling system that directly cools the DLP chip to improve performance and enable operation up to 45deg.C. This allows use in a wider variety of environments while stabilizing performance and keeping the unit quiet even in harsh conditions.

Panasonic PT-DW740US Features

  • Powerful 1-chip DLP projector offers easy maintenance and flexible configuration
  • Vivid picture quality is enhanced by RGB booster
  • Excellent installation and operation flexibility
  • A wired LAN system makes remote controlling simple
  • Enjoy superior reliability and hassle-free maintenance
  • Multi-screen support system
  • Side-by-side function
  • Eco standby mode

Panasonic PT-DW740US Specifications

Display System
1-Chip 0.65" / 16.51 mm DLP
Native Resolution
Supported Resolutions
WXGA - 1280 x 800 1
Normal Mode: 7000 Lumens
Aspect Ratio
Contrast Ratio
F 1.7 - 1.9 (f = 25.6 - 35.7 mm)
Lens Shift
Vertical: +60%
Horizontal: ±10%
Throw Ratio
1.8 - 2.5:1
Projection Size
50 - 600" / 127.00 - 1524.00 cm (Max Diagonal: 200" / 508.00 cm) 2
Keystone Correction
Vertical: ± 40deg.
5x BNC Video (Input)
1x 15-pin VGA Video (Input)
1x DVI-D Video (Input)
1x HDMI Video (Input)
1x BNC Composite Video (Input)
1x RS-232C Control (Input/Output)
2x M3 Control (Input/Output)
1x 9-pin VGA Control (Input)
1x Ethernet LAN (Input)
Lamp (Bulb)
2x UHM
Maximum Pixel Clock
162 MHz
Remote Control
Power Requirements
120 VAC50/60 Hz
Power Consumption
Normal Mode: 790W 3
Operating: 32 to 113 deg.F (0 to 45 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD)
19.59x6.87x18.34" (49.75x17.44x46.58cm)
35.93lbs (16.30kg)
