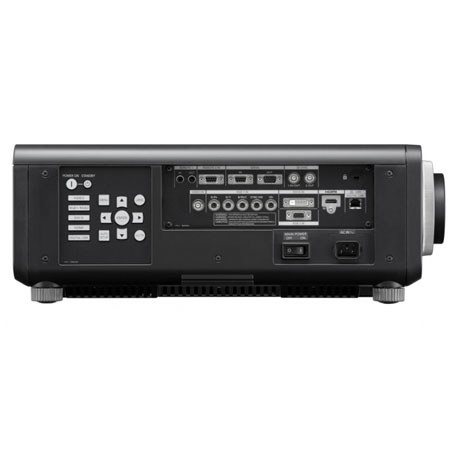

Panasonic PT-DW830L 8500 Lumens DLP Projector, 10000:1 Contrast Ratio, WXGA 1280x800 Resolution, 16:10 Aspect Ratio, 3D Ready, Len not Included, Black

Panasonic
SKU: PCPTDW830ULK MFR: PT-DW830ULK
Panasonic PT-DW830L: Picture 1 thumbnail Panasonic PT-DW830L: Picture 2 thumbnail Panasonic PT-DW830L: Picture 3 thumbnail Panasonic PT-DW830L: Picture 4 thumbnail Panasonic PT-DW830L: Picture 5 thumbnail Panasonic PT-DW830L: Picture 6 thumbnail Panasonic PT-DW830L: Picture 7 thumbnail Panasonic PT-DW830L: Picture 8 thumbnail

List Price: $14,499.00

Free Shipping

See all shipping options

Special Order Item - This is a special order item that is Non Cancelable and Non Returnable. We Charge you when you place your order. Approximate arrival at Adorama 3-7 Days from date of order. learn more

49% Off

Our Price

$7,351.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-DW830L

The Panasonic PT-DW830L 8500 Lumens DLP Projector (Len not Included, Black) features a dynamic RGB Booster to provide high picture quality and color reproduction and DIGITAL LINK for All-in-One connectivity.

With the incorporation of the new 420W dual lamp and new lamp drive system, the PT-DW830L is able to deliver a high brightness of 8500 lumens in an incredibly compact body.

The Panasonic proprietary Dynamic RGB booster, which has been enhanced, provides images with brilliant color and brightness, optimizing lamp intensity of individual red, green and blue colors according to each scene. Detail Clarity Processor 3 improves the clarity, detail and depth of images and the System Daylight View 2 function also helps maintain picture quality, even in a bright room. The Series is 3D-compatible and supports various 3D formats including frame packing, side by side, top and bottom, line by line and simultaneous.

The projector delivers continuous immersive image quality thanks to its shielded optical system which effectively blocks dust and its new heat pipe system which enables an efficient cooling system. The PT-DW830L is also designed with a dual lamp system that eliminates projection interruption due to a lamp failure. The Lamp Relay mode alternates operation of each lamp to enable 24/7 operation of the projector. Furthermore, its lamp replacement cycle has been improved compared to conventional Panasonic 1-chip DLP models and is now up to 3000 hours in normal mode and 4000 hours in eco mode for reduced maintenance.

Panasonic PT-DW830L Features

  • Digital Link for simplified AV infrastructure: The PT-DW830L offers more than just high picture quality, ease of maintenance and system reliability
  • Flexible installation and diverse functions: Application flexibility is further enhanced through the lens being located in a centralized position in the projector chassis, by a wide range of movement in the motorized horizontal / vertical lens shift and through 360-degree installation capability

Panasonic PT-DW830L Specifications

Power supply
120-240 V AC, 10-5.2 A, 50/60 Hz
Power consumption
1030 W (1060 VA) (0.3 W when STANDBY MODE set to ECO, 3 W when STANDBY MODE set to NORMAL)
Dissipation BTU
3516 BTU/hour (without light PT-DW830: 3,400 BTU/hour)
Panel size
16.5 mm (0.65") diagonal
Aspect ratio
16:10
Display method
DLP chip x 1, DLP projection system
Pixels
1024000 (1280 x 800) pixels
Lamp
420 W UHM lamp x 2
Screen size (diagonal)
1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with the ET-DLE055, 16:10 aspect ratio
Brightness
8,500 lm (dual-lamp, LAMP MODE: NORMAL)
Center-to-corner uniformity
90%
Contrast
10,000:1 (full on/full off, in dynamic iris 3 mode)
Resolution
1280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)
Scanning frequency: HDMI/DVI-D
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
Scanning frequency: RGB
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
Scanning frequency: YPBPR (YCBCR)-1
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
Scanning frequency: YPBPR (YCBCR)-2
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Scanning frequency: Video/YC
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift: Vertical
+60 % from center of screen (powered)
Optical axis shift: Horizontal
±10 % from center of screen (powered)
Keystone correction range
Vertical ±40deg.
Installation
Ceiling/floor, front/rear
HDMI IN
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
DVI-D IN
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
RGB 1 IN
BNC x 5 (RGB/YPBPR/YCBCR/YC x 1)
RGB 2 IN
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
3D SYNC 1 IN/OUT
BNC x 1 (3D timing signal)
3D SYNC 2 OUT
BNC x 1 (3D timing signal)
VIDEO IN
BNC x 1 (composite video)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT
D-sub 9-pin (male) x 1 for link control
REMOTE 1 IN
M3 x 1 for wired remote control
REMOTE 1 OUT
M3 x 1 for link control (for wired remote control)
REMOTE 2 IN
D-sub 9-pin (female) x 1 for external control (parallel)
LAN / DIGITAL LINK
RJ-45 x 1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink, Deep Color, compatible with HDCP)
Cabinet materials
Molded plastic
Operation noise
40 dB (dual lamp operation, lamp mode: NORMAL), 35 dB (dual lamp operation, lamp mode: ECO)
Operating temperature
0-45 deg.C (32-113 deg.F)
Operating humidity
10-80 % (no condensation)
Applicable software
Logo Transfer Software, Multi Projector Monitoring & Control Software
Dimensions
498x200x513mm (19.60x7.87x20.19") without lens
Weight
17.6 kg (38.8 lbs) without lens
Mfr #
PT-DW830ULK
SKU
PCPTDW830ULK
