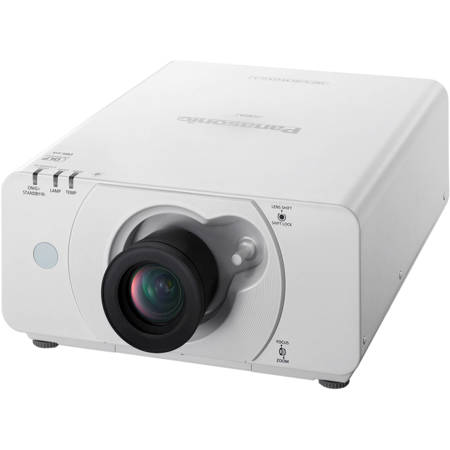

Panasonic PT-DZ570U WUXGA Projector, 1920x1200 Native Resolution, 4000 Lumens Brightness, 2000:1 Contrast Ratio, 16:10 Native Aspect Ratio

Panasonic PT-DZ570U: Picture 1 thumbnail Panasonic PT-DZ570U: Picture 2 thumbnail Panasonic PT-DZ570U: Picture 3 thumbnail Panasonic PT-DZ570U: Picture 4 thumbnail Panasonic PT-DZ570U: Picture 5 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-DZ570U

The Panasonic PT-DZ570U WUXGA Projector is flexible and powerful enough to thrive in a variety of working conditions. It is specifically designed to deal with full-HD widescreen sources, such as from a Blu-ray player. With a brightness of 4000 Lumens and a contrast ratio of 2000:1, the PT-DZ570U uses a single lamp and efficient focusing reflector to minimize consumption to only 415W. It has a widescreen aspect ratio and WUXGA resolution of 1920 x 1200 that are complimented by an increased functionality and a variety of features.

The PT-DZ570U uses an RGB Booster to enhance color. It increases color brightness through Vivid Color Control technology. The lamp Modulation Drive System controls lamp intensity for each color. This optimizes light usage and obtains color balance without lowering brightness. The PT-DZ570U also thrives in the daylight, by correcting image sharpness when projecting in light areas

The PT-DZ570U enjoys multiple input terminals, which enhance flexibility. There are HDMI and DVI-D inputs, as well as composite, RCA and S-video inputs. For network connection, the PT-DZ570U has an RS-232 and RJ45 terminal. The RS-232 jack even has an Emulation feature that lets you replace an existing Panasonic projector on your network, without changing the control settings.

The PT-DZ570U includes a web browser control for LAN operation. Through this connection, administrators can control and monitor multiple projectors at the same time. Any errors that occur at each projector are emailed back to the administrator's computer. An optional wireless adapter (sold separately), lets you give wireless presentations from your laptop. When you're finished, the projector reconnects to the LAN network automatically.

When installing the PT-DZ570U, plenty of features aid with proper installation. The horizontal and vertical lens shift will let you accommodate many room sizes and shapes and the zoom increases the chances that your existing ceiling mount will not need to be moved. The Flexible Angle feature lets you rotate the unit 360deg. vertically, to ensure angled installation is problem-free. Panasonic's cooling system allows installation even with ambient temperatures reaching up to 113deg. F. The lens-centered design also ensures that installation will be easy and not require multiple placements around the room to establish what works best.

Panasonic has also included several features that limit maintenance. The Cooling system and dust-resistant design extend lamp and air-filter life to 2000 hours of operation. Plus, when the lamp is ready to be changed, the PT-DZ570U affords easy lamp replacement even when it is ceiling mounted. The rear hatch opens, making lamp replacement quick and simple.

For making cutting-edge presentations, the Side-by-Side function allows simultaneous display from two image sources on a single screen. You can display an image from a PC, right next to a video image. This feature also takes advantage of the widescreen capabilities of the PT-DZ570U. You can export sound via the audio output to an external source, giving you even greater flexibility to run this projector in medium-sized presentation rooms. Whether you're interested in improving your business training or classroom technology, the PT-DZ570U uses a wealth of features and functions to ensure quality video playback and vivid color reproduction.

Panasonic PT-DZ570U Features

  • Full HD-Ready WUXGA Resolution: Due to the increased popularity of widescreen formats, including Blu-ray content, the PT-DZ570U features native WUXGA resolution for high-def viewing. This brings you lifelike projection of intricate, highly detailed images
  • RGB Booster: The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out
  • Vivid Color Control: This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color
  • Lamp Modulation Drive System: With the advanced lamp modulation technology, the projector is now able to control the lamp intensity for each of the red, green, blue and white segments of the color wheel separately
  • Web Browser Control: This unit can be easily operated remotely over a LAN, because it is done using the computer's Web browser. Furthermore, the projector sends an email message to notify the operator when an error has occurred, or a lamp needs to be replaced
  • Multi Projector Monitoring: Panasonic's original freeware "Multi Projector Monitoring & Control Software Ver. 2" allows the user to control and monitor multiple projectors at the same time over a wired LAN. When a problem occurs, an alarm message is sent to the monitoring / controlling PC
  • Side-by-Side Function: You can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right
  • Multiple Terminals: Interfaces include a DVI-D and HDMI inputs. The serial terminal (RS-232C) has an Emulate function that lets you continue using existing control systems when replacing a previous Panasonic model. It is also possible to output audio during Standby mode
  • H / V Lens Shift and 2 x Zoom Lens: The horizontal / vertical lens shift let you accommodate a wide range of room sizes and shapes
  • Detail Clarity Processor 3: The frequency of the video signal is analyzed for each scene and distribution data is extracted for the ultra high, high, medium and low-range frequencies
  • Daylight View: This function corrects the image quality to project sharp, clear images even in brightly lit rooms. A luminance sensor measures the ambient brightness and a real-time adjustment function optimizes sharpness and brightness according to the surroundings
  • Flexible Angle Setting: The unit can be rotated 360deg. vertically. This means you can install it at any up-and-down angle you wish to accommodate different installation conditions
  • Cooling System: The cooling system has been updated. It optimizes the airflow inside the unit. As a result, it offers better cooling efficiency and allows the projector to be used in ambient temperatures up to 113deg. F (45deg. C)
  • Reduced Maintenance: The cooling system combines with a dust-resistant design based on a sealed optical block to achieve a lamp and lamp air filter replacement cycle of 2,000 hours. This greatly reduces maintenance hassles
  • Easy Lamp Replacement: You can replace the lamp from the rear. The lamp is easily replaced even after the projector is installed on the ceiling
  • Lens-Centered Design: A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site
  • Rec. 709 Mode for HDTV Projection: Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected

Panasonic PT-DZ570U Specifications

Screen Size
40 - 300"
Native Resolution
Brightness (ANSI lumens)
4000 lumens (lamp mode NORMAL)
Contrast Ratio
Up to 2000:1
Lamp Type
300 W (max. 310 W) UHM lamp
Optical Axis Shift
Vertical +60% (manual), horizontal +/- 10% (manual)
Manual zoom (2x zoom), manual focus F 2.0-3.4, f 21.5-43.0mm
Power Supply
120 V AC, 9.0 A, 60 Hz
Power Consumption
415 W (500VA) (0.3 W with standby mode set to ECO, 15 W with standby mode set to NORMAL. Both with fan stopped.)
Panel Size
.67" diagonal (16:10 aspect)
Display Method
DLP TM chip x 1, DLP TM system
2,304,000 (1920 x 1,200) x 1, total of 2,304,000 pixels
fH 15 kHz - 100 kHz, fV 24 Hz - 120 Hz, dot clock 162 MHz or lower
fH 15.75 kHz, fV 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
Keystone correction range
Vertical ±40deg.
Ceiling/floor, front/rear
DVI-D in
DVI-D 24-pin x 1 DVI 1.0 compliant 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock 25 - 162 MHz
Power cord length
9'-10" (2.74m-25.4cm)
Operating temperature
0-45 Degrees C (32-113 Degrees F)
Operating humidity
20%-80% (no condensation)
M3 jack x 1 (for wired remote control)
RJ-45 for network connection, 10Base-T/100Base-TX, compliant with PJLink TM
Mini DIN 4-pin x 1 (S-Video)
BNC x 1 (composite video)
D-sub 9-pin (female) x 1 (for external control, RS-232C compliant)
HDMI 19-pin x 1, Deep Color, HDCP compatible 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p
BNC x 5
D-Sub HD 15-pin (female) x 1
fH: 27 kHz - 100 kHz, fV 24 Hz - 120 Hz, dot clock 25 MHz - 162 MHz
Wireless Module
Connector for optional wireless module ET-WM200U/WM200E x 1
Dimensions (WxHxD)
13.1x6.6x19.1" / 33.27x16.76x48.51cm
18.7lbs / 8.48kg
