Panasonic

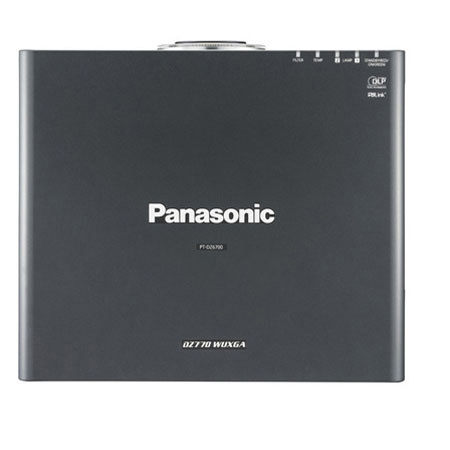

Panasonic PT-DZ770UK 1-Chip DLP Projector with Lens, 1920x1200 Resolution, 7000 Lumens Brightness, 2500:1 Contrast Ratio, 16:10 Aspect Ratio, Black

SKU: PCPTDZ770UK MFR: PT-DZ770UK
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$17,599.00 List Price

Our Price

$9,299.00
Free Shipping
Qty:

Add to Wishlist

About the Panasonic PT-DZ770UK

The Panasonic PT-DZ770UK 1-Chip DLP Projector with Lens (Black) produces 7000 lumens of brightness and high-quality images. This combines with a host of terminals and advanced management functions to provide high reliability and hassle free maintenance. It is ideal for a wide variety of applications, from education and business to stage performance. The RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic's proprietary Vivid Color Control technology with a newly engineered Lamp Modulation Drive System for a 1-chip DLP projector that produces bright and vivid colors.

This unique control technology optimizes the use of the color segment areas of the color wheel. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors, to achieve truly vivid coloring.

Panasonic PT-DZ770UK Includes

  • Panasonic PT-DZ770UK 1-Chip DLP Projector with Lens
  • Power Cord with Security Lock
  • AA-Type Batteries (2)
  • Lens Cover
  • Cable Cover
  • Wireless/ Wired Remote Control
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-DZ770UK Features

  • Bright 7,000 lm from Compact Body: New lamp drive system has helped to make the body as compact as Panasonic's PT-DZ6700 Series, while providing high brightness of 7,000 lm
  • Lamp Modulation Drive System: With the advanced lamp modulation technology, the projector is able to control the lamp intensity for each of the red, green, blue and white segments of the color wheel separately
  • Detail Clarity Processor Brings Depth and Clarity to Details: This advanced image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid and low-frequency components and brings out fine details accordingly
  • System Daylight View 2 for Enhanced Color Perception: Image details are less clear when a projector is used in a room with the lights on. Panasonic's System Daylight View 2 improves brightness perception by adjusting sharpness, gamma curves and color corrections
  • DICOM Simulation Mode: This imaging mode is similar to DICOM which is a medical imaging standard. It reproduces X-ray images with remarkable clarity
  • Rec. 709 Mode for HDTV Projection: Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected
  • Eco Filter that Needs No Maintenance for up to 12,000 Hours: The original Eco Filter consists of two Micro Cut Filters (electrostatic filters), a pre-filter and a main filter, which use an ion effect to collect extremely small dust particles
  • Dual-Lamp System Prevents Image Interruptions: The Dual-Lamp System eliminates the need to interrupt a presentation if a lamp should burn out (in dual-lamp operation mode). The Lamp Relay mode also operates the lamps alternately to enable 24/7 projector operation
  • Liquid Cooling System Attains a High Level of Reliability: Panasonic's unique liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 45deg.C (113deg.F)
  • Flexible Installation: The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control
  • A Wide Selection of Optional Lenses: Choose from a wide lineup of optional lenses for your system, including short-throw zoom lens, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt your projector to the installation site
  • Multi-Screen Support System Seamlessly Connects Multiple Screens: Edge blending, color matching and multi-screen processor
  • Side-by-Side Function: The PT-DZ770K can simultaneously display images from two sources onto a single screen. For example, you can display a PC image on the left and a video image on the right
  • Multi Projector Monitoring & Control Software: Panasonic's original freeware, "Multi Projector Monitoring & Control Software," allows the user to control and monitor multiple projectors at the same time via LAN. Projectors can be scheduled to turn on and off at a certain hour everyday
  • Crestron RoomView and AMX Device Discovery: The AMX Device Discovery technology is built in the PTDZ770K. Therefore, the LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Standby Mode: Eco: The PT-DZ770UK has attained a low standby power level of 0.2 W (STANDBY MODE: ECO). It also helps to slash running costs and reduces environmental impact

Panasonic PT-DZ770UK Specifications

Power supply 120 V AC, 7.5 A, 50/60 Hz, 220-240 V AC, 4.3 A, 50/60 H
Power consumption 120 V AC: 830 W (880 VA) (0.2 W when STANDBY MODE set to ECO, 6 W when STANDBY MODE set to NORMAL. Both with fan stopped.)
220-240 V AC: 810 W (1,000 VA) (0.3 W when STANDBY MODE set to ECO, 8 W when STANDBY MODE set to NORMAL. Both with fan stopped.)
Dissipation BTU Max. 2,924 BTU/hour
Panel size 17.0 mm (0.67 inches) diagonal
Aspect Ratio 16:10
Display method DLP chip x 1, DLP projection system
Pixels 2,304,000 (1,920 x 1,200) pixels
Lens Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
Optional powered zoom/focus lenses and fixed-focus lens
Lamp 300 W (max. 310 W) UHM lamp x 2
Screen size (diagonal) 1.27-15.24 m (50- 600 inches), 1.27-5.08 m (50-200 inches) with the ET-DLE055
Brightness 7,000 lm (dual-lamp, LAMP MODE: NORMAL)
Center-to-corner uniformity 90%
Contrast Ratio 2,500:1 (full on/full off, CONTRAST MODE: HIGH)
Resolution 1,920 x 1,200 pixels
Scanning frequency: HDMI/DVI-D fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 162 MHz or lower
Scanning frequency: RGB fH: 15-91 kHz, fV: 50-85 Hz, dot clock: 150 MHz or lower
Scanning frequency: YPBPR (YCBCR)-1 fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
Scanning frequency: YPBPR (YCBCR)-2 fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Scanning frequency: Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical/horizontal: +50% from center of screen (powered) / ±10% from center of screen (powered)
Keystone correction range Vertical: ±40deg. (±30deg. with the ET-DLE055/DLE080)
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz
DVI-D IN DVI-D 24-pin x 1
(DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz
RGB 1 IN BNC x 5 (RGB/YPBPR/YCBCR x 1)
RGB 2 IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN BNC x 1 (composite video)
S-VIDEO IN Mini DIN 4-pin x 1 (S-Video)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
REMOTE 1 IN M3 x 1 for wired remote control
REMOTE 1 OUT M3 x 1 for link control (for wired remote control)
REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)
Power cord length 3m / 9.8'
Cabinet material Moulded plastic
Operating temperature 0-45 deg.C (32-113 deg.F)
Operating humidity 20%-80% (no condensation)
Dimensions (WxHxD) With supplied lens: 498x175x466 mm / 19.60x6.88x18.34"
Weight With supplied lens: 16.3 kg / 35.93 lbs
