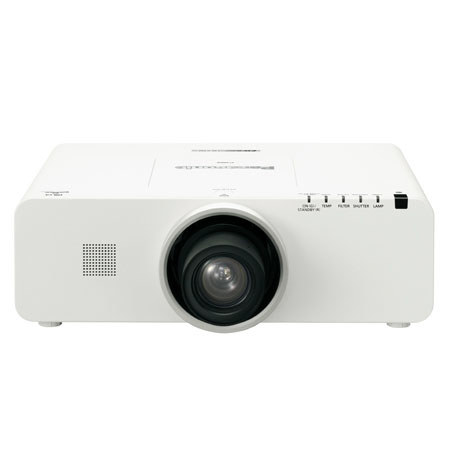

About the Panasonic PT-EW630U

The Panasonic PT-EW630U LCD Projector produces brightness up to 5,500 lumens. The iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of 5,000:1. It offers a versatile solution for classrooms in elementary and junior high schools, university lecture rooms, engineering or art classes and company meeting rooms.

It features a highly durable optical engine with inorganic LCD panels and polarizers, providing up to 10,000 hours of service without maintenance. This LCD projector offers low maintenance with a dust-resistant cabinet design and a washable Eco filter that needs no replacement for up to 12,000 hours and has a long lamp replacement cycle of up to 4,000 hours. With the lamp's power set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops, resulting a reduction in power consumption while excellent color reproduction is maintained. The lens attaches and detaches with one-touch ease.

Additional features of this LCD projector include a built-in 10-W speaker and a quiet design (noise levels down to a quiet 31 dB), which does not interrupt meetings or classes. Side-by-Side and Picture-in-Picture functions allow for effective presentations and lectures. Two different image sources can be simultaneously displayed onto a single screen. By switching to the Picture-in-Picture mode, you can display a sub-window onto the main screen and position in any of the 4 corners.

Ease of filter and lamp replacement make the total cost of ownership low on this LCD projector. The filter is easily replaced from the side and the lamp from the top of the projector allowing for ease in maintenance.

Panasonic PT-EW630U Includes

  • Panasonic PT-EW630U LCD Projector
  • Power Cord
  • Power Cord Holder
  • Wireless/Wired Remote Control Unit
  • AAA-Type Battery (2)
  • Computer Cable
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-EW630U Specifications

Panel Size (Diagonal) 19.0 mm (0.75" ) diagonal
Aspect Ratio 16:10
Display Method Transparent LCD panel (x 3, R/G/B)
Resolution WXGA (1,280 x 800 pixels)
Drive Method Pixels Active Matrix 1,024,000 (1,280 x 800 x 3, total of 3,072,000 pixels
Screen Size 1.02-10.16 m (3.34-33.33')
Lamp 330 W UHM lamp x 1
Lamp Replacement Cycle 3000 Hours (Lamp power: normal) 4,000 hours1 (Lamp Power ECO)
Brightness 5500 lumens
Contrast Ratio 5000:1 (full on / full off, LAMP POWER: AUTO)
Lens Powered zoom/focus lens (1.7- 2.8:1), F 1.7- 2.3, f 26.9 - 45.4 mm
HDMI/DVI-D fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
RGB (analog) fH: 15-120 kHz, fV: 48-100 Hz, dot clock: 230 MHz or lower
YPBPR (YCBCR) 1 fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
YPBPR (YCBCR) 2 fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 24 Hz [1080/24p
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
INPUT 1 DVI-D DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only 3
HDMI HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB D-Sub HD 15-pin (female) x 1
INPUT 3 RGB VIDEO INPUT BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1, composite video)^3
INPUT 3 COMPONENT VIDEO INPUT RCA x 3 (YPBPR/YCBCR x 1), shared with VIDEO IN (RCA x 1, composite video)^3
S-VIDEO Mini DIN 4-pin x 1 (S-Video)
RGB OUT D-Sub HD 15-pin (female) x 1
AUDIO IN RCA (L, R) x 1, M3 (L, R) x 2
AUDIO OUT M3 (L, R) x 1 (variable)
AUDIO IN 3 RCA (L, R) x 2, 0.5 Vrms, input impedance: 22 kilohms or more
SERIAL IN D-sub 9-pin (female) x 1, for external control (RS-232C compliant)
REMOTE IN M3 x 1 for wired remote control
Mechanical Shutter Yes
Filter x 1, recommended replacement cycle: 12,000 hours
Keystone correction range Vertical: ±40deg.7, horizontal: ±30deg.8
Optical Axis Shift Vertical: ±60% (powered), horizontal: ±10% (powered)
Operating Environment Operating temperature: 0 deg.C-40 deg.C (32 deg.F-104 deg.F)
Humidity: 20%-80% (no condensation)
Built-in speaker 10 W (monaural) output power
Installation Ceiling/floor, front, rear
Noise level 37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1 / ECO 2)
Dimensions (WxHxD) 489.5x164x434mm / 19.27x6.45x17.08" (with supplied lens)
Weight 10.3kg / 22.7lbs (with supplied lens)
