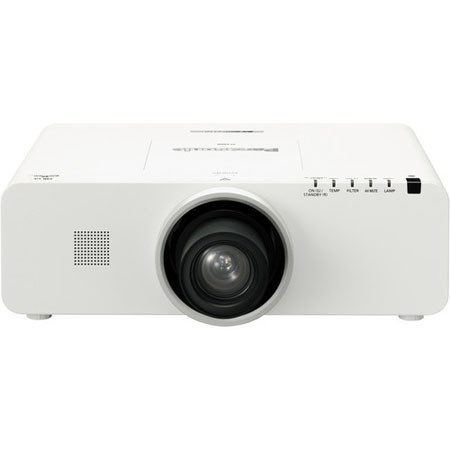

Panasonic PT-EX500U LCD Projector, 5000 Lumens Brightness, 4:3 Aspect Ratio, 2000:1 Contrast Ratio, XGA 1024x768 Resolution

Panasonic
SKU: PCPTEX500U MFR: PT-EX500U
Panasonic PT-EX500U: Picture 1 thumbnail Panasonic PT-EX500U: Picture 2 thumbnail Panasonic PT-EX500U: Picture 3 thumbnail Panasonic PT-EX500U: Picture 4 thumbnail Panasonic PT-EX500U: Picture 5 thumbnail Panasonic PT-EX500U: Picture 6 thumbnail
48% Off

Our Price

$2,699.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-EX500U

The Panasonic PT-EX500U LCD Projector is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, entertainment and advertising or as the hub of cutting-edge home theater applications.

With a brightness of 5000 lumens and a contrast ratio of 2000:1, the PT-EX500U is encased in a ruggedized chassis for high reliability and durability. It has a 4:3 aspect ratio and XGA resolution of 1024 x 768 that are complimented by an increased functionality and a variety of features.

The Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.

The PT-EX500U's wide connectivity includes HDMI and DVI-D input terminals, two sets of computer (RGB) input terminals and a serial (RS-232C) terminal for external control. It is also possible to output audio during Standby mode. This is convenient when connecting an external audio system through the projector.

Panasonic PT-EX500U Features

  • Daylight View Basic Technology: Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms
  • Intelligent Lamp Design: When the lamp power is set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%
  • No Replacement for 12,000 Hours: The cabinet is designed with a straight airflow path, from intake to exhaust. The shielding of the lens section, where dust is likely to enter, has been further improved to keep dust out
  • Eco Management Functions: A number of functions are provided to reduce power consumption. They adjust the brightness according to ambient light conditions and reduce the lamp power when there is no signal input or the projector is in AV Mute mode
  • Power Consumption of Only 0.4W: When the standby mode is set to eco, the standby power consumption is low at 0.4W. This lowers running costs and helps to reduce environmental impact
  • Easy Lamp and Air Filter Replacement: For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The filter and lamp are easily replaced even after the projector is installed on the ceiling
  • Flexible Installation: The wide adjustment range of the powered horizontal / vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360 degrees vertically
  • Crestron RoomView Compatibility: The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Abundant Terminals: Extensive interfaces include HDMI and DVI-D input terminals, two sets of computer (RGB) input terminals and a serial (RS-232C) terminal for external control. It is also possible to output audio during Standby mode
  • Ecology Conscious Design: No halogenated flame retardants are used in the cabinet, Lead-free glass is used for the lens. Lamp power switching further reduces power consumption
  • PJLink Compatible: The LAN terminals support PJLink Class 1 connection, which is highly convenient for system construction
  • Multi Projector Monitoring & Control Software: Panasonic's original freeware, multi projector monitoring and control software, allows the user to control and monitor multiple projectors at the same time via LAN. Projectors can be scheduled to turn on and off at a certain hour everyday
  • Security: An abundance of other security measures are also included, such as a security bar, a user password and a control panel lock
  • Quiet 31 dB Design Does Not Interrupt Meetings or Classes: The quiet design keeps noise levels down to 31 dB, so the sound of the cooling fan is hardly noticeable
  • Lens Centered Design: A lens-centered, symmetrical design provides ease of installation, eliminating the need for special considerations when planning the installation site

Panasonic PT-EX500U Specifications

Native Resolution
XGA - 1024 x 768
Format
NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility
720p
1080i
Pixels
2359296
Brightness
5000 Lumens
Uniformity
90%
Aspect Ratio
4:3
Contrast Ratio
2000:1
Scan
Horizontal: 26 - 80 kHz
Vertical: 23 - 85 Hz
Lens
F 1.7 - 2.3 (f = 26.9 - 45.4 mm)
Throw Ratio
1.7 - 2.8:1
Projection Size
40 - 400" / 1016.00 - 10160.00 mm
Panel size
20.0 mm (0.80" ) diagonal
Display method
Transparent LCD panel (x 3, R/G/B)
Drive method Pixels
Active matrix 786,432 (1,024x768)x 3, total of 2,359,296 pixels
Scanning frequency: DVI-D
fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
Scanning frequency: HDMI
fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
Scanning frequency: RGB (analog)
fH: 15-120 kHz, fV: 48-100 Hz, dot clock: 230 MHz or lower
YPBPR (YCBCR)
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]
Video/S-Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Keystone Correction
Yes, Vertical: ± 40deg.
Installation
Ceiling/floor, front/rear
DVI-D
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB
D-Sub HD 15-pin (female) x 1
RGB 5BNC/VIDEO
BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1, composite video)
VIDEO
RCA x 3 (YPBPR/YCBCR/composite video x 1)
S-VIDEO
Mini DIN 4-pin x 1 (S-Video)
MONITOR OUT
D-Sub HD 15-pin (female) x 1 (Cannot be used for some inputs)
AUDIO IN
RCA (L, R) x 1, M3 (L, R) x 2
AUDIO OUT
M3 (L, R) x 1 (variable)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN
M3 x 1 for wired remote control
LAN
RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)
Built-in Speaker
Yes, 10W (Mono)
Operating noise
35 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1/2)
Filter
x 1, recommended replacement cycle: 12,000 hours
Mechanical shutter
Yes
Cabinet materials
Molded plastic (PC + ABS)
Lamp (Bulb)
1x UHM
Watts
330W
Life
Normal Mode: 3000 Hours
Eco Mode: 4000 Hours
Fan Noise
Normal Mode: 37 dB
Eco Mode: 31 dB
Maximum Pixel Clock
162 MHz
Remote Control
Yes
Security
Cable Lock Slot
Padlock
Password Protection
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
Normal Mode: 490W
Standby Mode: 0.4W
Operating Environment
Temperature: 32 to 104 deg.F (0 to 40 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD)
19.3x6.5x17.1" / 490.22x165.10x434.34mm
Weight
22.5lbs / 10.21kg
