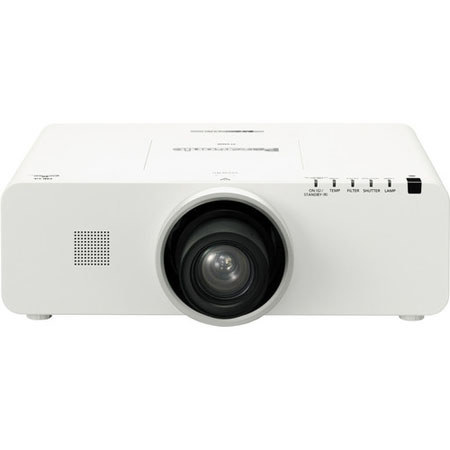

Panasonic PT-EX600U LCD Projector, 6000 Lumens Brightness, 4:3 Aspect Ratio, 5000:1 Contrast Ratio, XGA 1024x768 Resolution, 0.80" Display

Panasonic
SKU: PCPTEX600U MFR: PT-EX600U
Panasonic PT-EX600U: Picture 1 thumbnail Panasonic PT-EX600U: Picture 2 thumbnail Panasonic PT-EX600U: Picture 3 thumbnail Panasonic PT-EX600U: Picture 4 thumbnail Panasonic PT-EX600U: Picture 5 thumbnail Panasonic PT-EX600U: Picture 6 thumbnail
46% Off

Our Price

$3,099.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-EX600U

The Panasonic PT-EX600U LCD Projector provides high brightness and good contrast in spite of its compact body. The unique Daylight View Basic function allows it to project crisp, high-resolution images without having to dim the room light. From classrooms in elementary and high schools to university lecture rooms, engineering or art classes and company meeting rooms, this advanced projector produces bright, easy-to-see images for all kinds of applications. It also features an ecological design that lowers power consumption, flexibility in installation and easy maintenance.

Panasonic PT-EX600U Features

  • Compact, yet Bright and High Contrast: Even with its light, compact body, the PT-EZ600U produces a brightness of up to 6,000 lm. In addition, the iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of up to 5,000:1
  • Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms: Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in the dark image areas, which were previously difficult to see in brightly lit rooms
  • Dust-Resistant Cabinet Design & an Eco Filter that Needs No Replacement for 12,000 Hours: The cabinet is designed with a straight airflow path, from intake to exhaust. The shielding of the lens section, where dust is likely to enter, has been further improved to keep dust out
  • Inorganic Materials Maintain Image Quality Longer: The PT-EZ600U projector's optical block maintains a high level of performance over time due to the use of inorganic materials in the LCD panels and polarizers, thus achieving a replacement cycle of 10,000 hours
  • Lamp Replacement Cycle of up to 4,000 Hours: The PT-EZ600U projector features a lamp replacement cycle of up to 4,000 hours. This helps to lower operating costs by providing longer usage between lamp replacements
  • Environmentally Friendly Standby Power Consumption of Only 0.4 W: When the standby mode is set to Eco, the standby power consumption is low at 0.4 W. This lowers running costs and helps reduce the environmental impact
  • Intelligent Lamp Control System Reduces Power Consumption: When the lamp power is set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70 %
  • Eco Management Functions: A number of functions are provided to reduce power consumption. You can easily set the Eco Management functions according to operating conditions by using the ECO button on the remote control
  • Flexible Installation: The wide adjustment range of the powered horizontal/vertical lens shift function assures convenience and versatility during installation. It lets you easily make adjustments with the remote control. The unit can also be rotated 360deg. vertically
  • Lens-Centered Design: A lens-centered, symmetrical design provides ease of installation, eliminating the need for special considerations when planning the installation site
  • Corner Keystone Correction Enables Angled Projection: All you need to do is designate 4 points as the corners of the projected image and this function automatically carries out horizontal and vertical keystone correction
  • Web Browser Control/Monitoring and E-mail Message Alert: The PT-EZ600U series projector can be easily operated remotely over a LAN network, because it is all done using the computer's familiar web browser
  • Multi Projector Monitoring & Control Software: Panasonic's original freeware, Multi Projector Monitoring & Control Software, allows the user to control and monitor multiple projectors at the same time via LAN. Projectors can be scheduled to turn on and off at a certain hour every day
  • PJLink Compatibility: The LAN terminals support PJLink Class 1 connection, which is highly convenient for system construction
  • Crestron RoomView Compatibility: The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Abundant Terminals Including HDMI and DVI-D Inputs: Extensive interfaces include HDMI and DVI-D input terminals, 2 sets of computer (RGB) input terminals and a serial (RS-232C) terminal for external control. It is also possible to output audio during Standby mode
  • Built-In 10 W Speaker: The PT-EZ600U projector features a high-output 10 W monaural speaker that produces a large sound volume without requiring external speakers
  • Quiet 31 dB Design Does Not Interrupt Meetings or Classes: The quiet design keeps noise levels down to 31 dB, so the sound of the cooling fan is hardly noticeable
  • Effective Theft Prevention with the Startup Logo: You can change the default Panasonic start up logo to your desired logo. A new logo can be easily uploaded by connecting a computer to the projector through the LAN or serial connection by using the Logo Transfer Software (included)
  • Easy Lamp & Air Filter Replacement: For easy maintenance, you can replace the filter from the side and the lamp from the top of the projector. The filter and lamp are easily replaced even after the projector is installed on the ceiling
  • Mechanical Lens Shutter: The mechanical lens shutter completely blocks annoying light leakage when the projector is on standby or temporarily not in use, such as during a meeting
  • Direct Power Off: The cooling fan continues to operate even when the main power switch is turned off after projection is finished

Panasonic PT-EX600U Specifications

Brightness
6000 Lumens
Aspect Ratio
4:3
Contrast Ratio
5000:1
Lens
F (f = 26.9 - 45.4 mm)
Throw Ratio
1.7 - 2.8:1
Projection Size
40 - 400" / 101.60 - 1016.00 cm
Panel size
20.0 mm (0.80" ) diagonal
Display method
Transparent LCD panel (x 3, R/G/B)
Drive method Pixels
Active matrix 786,432 (1,024x768)x 3, total of 2,359,296 pixels
Resolution
1024x768 pixels
Scanning frequency: DVI-D
fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
Scanning frequency: HDMI
fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
Scanning frequency: RGB (analog)
fH: 15-120 kHz, fV: 48-100 Hz, dot clock: 230 MHz or lower
Scanning frequency: YPBPR (YCBCR)
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
Scanning frequency: Video/S-Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Keystone correction range
Horizontal: ±30deg.
Vertical:±40deg.
Installation
Ceiling/floor, front/rear
DVI-D
DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB
D-Sub HD 15-pin (female) x 1
RGB 5BNC/VIDEO
BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1, composite video)
VIDEO
RCA x 3 (YPBPR/YCBCR/composite video x 1)
S-VIDEO
Mini DIN 4-pin x 1 (S-Video)
MONITOR OUT
D-Sub HD 15-pin (female) x 1 (Cannot be used for some inputs)
AUDIO IN
RCA (L, R) x 1, M3 (L, R) x 2
AUDIO OUT
M3 (L, R) x 1 (variable)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
REMOTE IN
M3 x 1 for wired remote control
LAN
RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink)
Operating noise
35 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1/2)
Filter
x 1, recommended replacement cycle: 12000 hours
Mechanical shutter
Yes
Cabinet materials
Molded plastic (PC + ABS)
Lamp (Bulb)
1x UHM
Watts
330W
Life
Eco Mode: 4000 Hours
Normal Mode: 3000 Hours
Power Requirements
100-240 VAC, 50/60 Hz
Power Consumption
Eco Mode: 0.4W
Standby Mode (Network on): 11W
Operating Environment
Temperature: 32 to 104 deg.F (0 to 40 deg.C)
Humidity: 20 - 80%
Dimensions (WxHxD)
With supplied lens: 489.5x164x434.8mm (19.27x6.45x17.11")
Weight
With supplied lens: 10.5 kg (23.1 lbs)
