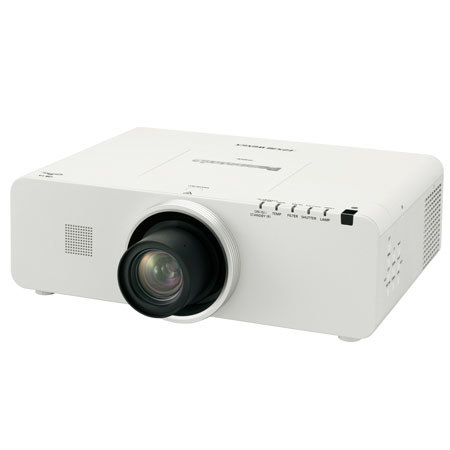

Panasonic PT-EZ570U WUXGA LCD Projector with Lens, 5000 Lumens Brightness, 5000:1 Contrast Ratio, 1920 x 1200 Resolution, 16:10 Aspect Ratio

SKU: PCPTEZ570U MFR: PT-EZ570U
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,949.00
Free Shipping
Qty:

Add to Wishlist In Stock

About the Panasonic PT-EZ570U

The Panasonic PT-EZ570U LCD Projector with full HD ready WUXGA resolution (1,920 x 1,200) produces brightness up to 5,000 lumens. The iris automatically adjusts itself to match the situation, resulting in a high contrast ratio of 5,000:1, The PT-EZ570U offers a versatile solution for the classrooms in elementary and junior high schools, university lecture rooms, engineering or art classes and company meeting rooms.

The PT-EZ570U features the highly durable optical engine with inorganic LCD panels and polarizer's providing up to 10,000 hours of service without maintenance. The PT-EZ570U offers low maintenance with the dust-resistant cabinet design and a washable Eco filter that needs no replacement for up to 12,000 hours. The PT-EZ570U offers a long lamp replacement cycle of up to 4,000 hours. With the lamp power set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%. It also combines with color shift correction, which corrects the shift in the color balance that occurs when the lamp output drops, resulting in a reduction in power consumption while excellent color reproduction is maintained.

Choose from a wide lineup of lenses for the PT-EZ570U projector including short-throw, long-throw zoom and fixed-throw lenses for rear projection use. The additional lenses make it easy to adapt the projector to each installation site. The lenses attach and detach with one touch ease. Additional features of the PT-EZ570U include a built-in 10-W speaker and a quiet design which keeps noise levels down to a quiet 31-dB which does not interrupt meetings or classes. Side-by-side and Picture-in-picture functions provide effective presentations and lectures. Two different image sources can be simultaneously displayed onto a single screen. By switching to picture-in-picture mode you can display a sub-window onto the main screen and position in any of the four corners.

Ease of filter and lamp replacement make the total cost of ownership low on the PT-EZ570U. The filter is easily replaced from the side and the lamp from the top of the projector allowing for ease in maintenance.

Panasonic PT-EZ570U Includes

  • Panasonic PT-EZ570U WUXGA LCD Projector with Lens
  • Power Cord
  • Power Cord Holder/Power Cord Cover
  • Wireless/Wired Remote Control Unit
  • AAA-Type Batteries (2)
  • RGB Cable
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-EZ570U Specifications

Panel Size (Diagonal) 19.2 mm (0.76") diagonal
Aspect Ratio 16:10
Display Method Transparent LCD panel (x 3, R/G/B)
Resolution WUXGA (1,920 x 1200 pixels)
Drive Method Pixels Active Matrix 2,304,000 (1,920 x 1,200 x 3, total of 6,912,000 pixels
Screen Size 1.02-10.16 m (40 - 400 in)
Lamp 330 W UHM lamp x 1
Lamp Replacement Cycle 3,000 Hours (Lamp power: normal) 4,000 hours (Lamp Power ECO)
Brightness 5,000 lumens
Contrast Ratio 5000:1
Lens Powered zoom/focus lens (1.7- 2.8:1), F 1.7- 2.3, f 26.9 - 45.4 mm
HDMI/DVI-D fH: 26-80 kHz, fV: 23-85 Hz, dot clock: 162 MHz or lower
RGB (analog) fH: 15-120 kHz, fV: 48-100 Hz, dot clock: 230 MHz or lower (Signals exceeding the dot clock rate of 163MHz are down sampled.)
YPBPR (YCBCR)-1 525i (480i): fH 15.75 kHz; fV 60 Hz,
625i (576i): fH 15.63 kHz; fV 50 Hz,
525p (480p): fH 31.50 kHz; fV 60 Hz,
625p (576p): fH 31.25 kHz; fV 50 Hz,
750 (720)/60p: fH 45.00 kHz; fV 60 Hz,
750 (720)/50p: fH 37.50 kHz; fV 50 Hz,
1035/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/60i: fH 33.75 kHz; fV 60 Hz,
1125 (1080)/50i: fH 28.13 kHz; fV 50 Hz,
1080/25p: fH 28.13 kHz; fV 25 Hz
YPBPR (YCBCR)-2 1080/25sF: fH 28.13 kHz; fV 50 Hz,
1080/24p: fH 27.00 kHz; fV 24 Hz,
1080/24sF: fH 27.00 kHz; fV 48 Hz,
1080/30p: fH 33.75 kHz; fV 30 Hz,
1080/30sF: fH 33.75 kHz; fV 60 Hz,
1080/60p: fH 67.50 kHz; fV 60 Hz,
1080/50p: fH 56.25 kHz; fV 50 Hz
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Input 1 DVI-D DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
HDMI HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
RGB D-Sub HD 15-pin (female) x 1
Input 2 RGB 5BNC/Video BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1, composite video)
Input 3 Video RCA x 3 (YPBPR/YCBCR/composite video x 1)
S-Video Mini DIN 4-pin x 1 (S-Video)
RGB Out D-Sub HD 15-pin (female) x 1
Audio In RCA (L, R) x 1, M3 (L, R) x 2
Audio Out M3 (L, R) x 1 (variable)
Serial In D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Remote In M3 x 1 for wired remote control
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-Tx, compliant with PJLink)
Power Supply 100-240 V AC, 50/60 Hz
Power Consumption 490 W (492 VA)
Mechanical Shutter Yes
Filter Recommended replacement cycle: 12,000 hours
Keystone correction range Vertical: ±30deg. 6 (with vertical correction only) Horizontal: ±30deg. 6 (with horizontal correction only)
Optical Axis Shift Vertical: ±60% (powered), horizontal: ±10% (powered)
Operating Environment Temperature 0-40 deg.C (32-104 deg.F) up to 1,000 m (3,280 ft) above sea level, with fan control set to OFF
0-30 deg.C (32-86 deg.F) between 1,000 m and 2,000 m (3,280 ft and 6,561ft) above sea level, with fan control set to ON
Operating Environment Humidity 20%-80% (no condensation)
Built-in speaker 10 W (monaural) output power
Installation Ceiling/floor, front, rear
Noise level 37 dB (LAMP POWER: NORMAL), 31 dB (LAMP POWER: ECO 1 / ECO 2)
Dimensions (WxHxD) 489.5x164x434.8mm / 19.2x6.45x17.1" (with supplied lens)
Weight 10.3kg / 22.7lbs (with supplied lens)
