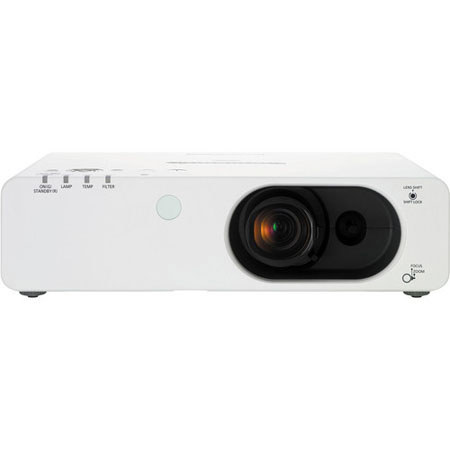

Panasonic PT-FW430U LCD Projector, 3500 Lumens, WXGA 1280x800 Resolution, 2x Zoom Lens, 6000 Hour Lamp Life

Panasonic PT-FW430U: Picture 1 thumbnail Panasonic PT-FW430U: Picture 2 thumbnail Panasonic PT-FW430U: Picture 3 thumbnail Panasonic PT-FW430U: Picture 4 thumbnail Panasonic PT-FW430U: Picture 5 thumbnail Panasonic PT-FW430U: Picture 6 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $134.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $199.95
  • New Leaf 5 Year Extended Warranty + $227.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $329.95

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Panasonic PT-FW430U: Picture 1 regular $1,749.00

About Panasonic PT-FW430U

With 3500 lumens and a 600:1 contrast ratio, the Panasonic PT-FW430U WXGA LCD Projector possesses the image power to project vivid, saturated pictures in a variety of lighting situations. Panasonic's LCD projector offers brighter and more vivid images with full high definition resolution.

The Panasonic PT-FW430U Projector touts a Daylight View Premium feature that provides bright, crisp images even in brightly lit conditions for a superb picture no matter the time of day. Along with the RGB Booster, this combines high brightness and superb color reproduction; a host of technologies work together to enhance image quality.

The unit houses an advanced dust-resistant design, which minimizes image degradation by reducing the entry of dust into the unit. The effect of dust has been minimized by completely sealing the optical block, which provides an airtight structure that is impenetrable to any outside elements. The unit is a dual lamp design and auto cleaning filter technology extends operating stability and contributes to reliability. It is no secret that the Panasonic PT-FW430U projector is brighter and better than ever with a compilation of numerous Panasonic proprietary technologies.

Panasonic PT-FW430U Features

  • Panasonic's is easy to install, user-friendly and reliable. With features such as a 2x zoom lens, horizontal/vertical lens shift and HDMI/DVI-I digital input terminals, these high-performing projectors fit well within existing mounting positions and cablings
  • Lamp Replacement Cycle: An original lamp drive system enables a 6000 hour lamp replacement cycle, giving you more time for brilliant presentations
  • Dust Resistant: A dust resistant cabinet and a new, reusable eco-filter with a 12,000 hour replacement cycle protect the internal electronic components from dust
  • Easy Maintenance: The lamp is easily replaced from the rear and the filter is quickly replaced through the side panel, even while the projector is mounted on a ceiling
  • Detail Clarity Processor 3: Panasonic's Detail Clarity Processor 3 brings depth and clarity to details
  • Daylight View Premium: Daylight View Premium senses the ambient light and adjusts output for sharp, clear images even in brightly lit rooms
  • Optional Wireless Module (ET-WM200U): For complete freedom of use, the optional wireless module (ET-WM200U) enables wireless operation from one or multiple laptops located anywhere in the room

Panasonic PT-FW430U Specifications

Display System
3-Chip 0.74" / 1.88 cm LCD
Native Resolution
WXGA - 1280 x 800
NTSC 4.43
PAL 60, M
HDTV Compatibility
720p at 60 Hz
750p at 60 Hz
720p at 50 Hz
750p at 50 Hz
1125i at 50 Hz
1125i at 60 Hz
1125p at 50 Hz
1125p at 50 Hz
1080i at 60 Hz
1080i at 50 Hz
1080p at 60 Hz
1080p at 50 Hz
8000 Lumens
Aspect Ratio
Native: 4:3
Contrast Ratio
F 1.7 - 2.6 (f = 24.0 - 47.2 mm)
Zoom Ratio
Throw Ratio
1.34 - 2.68:1
Projection Size
33 - 300" / 838.20 - 7620.00 mm
Keystone Correction
Vertical: ± 30deg.
Ceiling Mountable
Rear Screen Projection
Projection Tilt Option
Built-in Speaker
Yes, (Mono)
1x Ethernet Control/Service (Input/Output)
1x S-Video Video (Input)
1x DVI-I Video (Input)
1x 15-pin VGA Video (Input)
1x 15-pin VGA Video (Input)
2x M3 Audio (Input)
1x RCA Stereo (L/R) Audio (Input)
1x M3 Audio (Output)
1x RS-232C Control (Input)
1x HDMI Audio/Video (Input)
Lamp (Bulb)
1x UHM
Fan Noise
Normal Mode: 33 dB
Eco Mode: 29 dB
Remote Control
Power Requirements
100-240 VAC, 50/60 Hz
Operating: 32 to 104 deg.F (0 to 40 deg.C)
Humidity: 20 - 80%
System Requirements 1
OS: Microsoft Windows XP: Professional 32-bit, Home Edition 32-bit, Tablet PC Edition 2005 32-bit Windows Vista: Ultimate 32-bit/64-bit, Business 32-bit/64-bit, Home Premium 32-bit/64-bit, Home Basic 32-bit/64-bit, Windows 7: Ultimate 32-bit/64-bit, Professional 32-bit/64-bit, Home Premium 32-bit/64-bit, Apple Mac OS X: v10.4, v10.5, v10.6
Web Browser: Windows: Internet Explorer 6.0/7.0/8.0
System Requirements 2
Mac OS: Safari 2.0/3.0/4.0
CPU: Windows: 1GHz or higher Intel Pentium III or higher, or other compatible processor Mac OS X: 1GHz or higher PowerPC G4, or 1.8GHz or higher Intel Core processor
Memory: 256MB or more (512MB or higher is recommended for Mac OS X)
Free Hard Disk Space: 60MB or more
CD-ROM Drive: CD-ROM Drive or DVD Drive (required for installation)
Wireless LAN: The optional ET-WM200 is required
System Requirements 3
IEEE 802.11b/g/n compatible (built-in wireless LAN system or external IEEE 802.11b/g/n LAN card must be installed and running normally)
Wireless LAN Continued: Wireless connection may not be possible with some IEEE 802.11b/g/n wireless LAN systems. Macintosh computers must have a built-in wireless LAN adapter
System Requirements 4
Wireless LAN Continued: For IEEE 802.11n connection, use a wireless LAN adapter, projector and access point that are IEEE 802.11n compatible and connect with infrastructure mode
Wired LAN Connector: RJ-45
Dimensions (WxHxD)
16.9x4.9x12.7" / 42.9x12.4x32.3 cm
13.23 lbs / 6 kg
Mfr #
