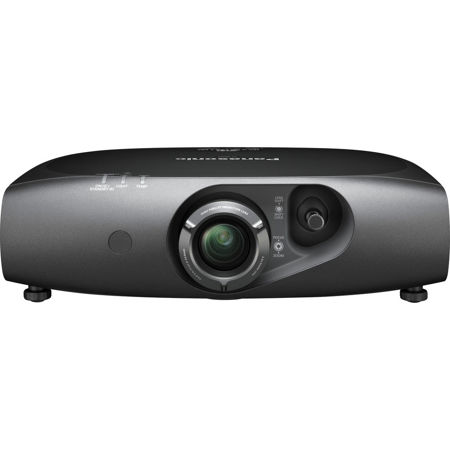

Panasonic PT-RW330U LCD Projector, 3500 Lumens Brightness, 16:10 Aspect Ratio, 10000:1 Contrast Ratio, WXGA 1280x800 Resolution

Panasonic PT-RW330U: Picture 1 thumbnail Panasonic PT-RW330U: Picture 2 thumbnail Panasonic PT-RW330U: Picture 3 thumbnail Panasonic PT-RW330U: Picture 4 thumbnail Panasonic PT-RW330U: Picture 5 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $134.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $199.95
  • New Leaf 5 Year Extended Warranty + $227.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $329.95
46% Off

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-RW330U

The Panasonic PT-RW330U LCD Projector is free from lamps or air filters, so that you enjoy maintenance-free use for about 20,000 hours while maintaining high brightness and picture quality. To enhance permanent installation use, the DIGITAL LINK support has been added, allowing you to transmit video, audio and control signals up to 328' (100m) over a single LAN cable. This LED/Laser projector features a 2x zoom and a wide lens shift range, thus providing flexibility for easy first time and replacement installations. It is loaded with features for professional integration, such as Portrait mode, a Multi Screen Support System and 3D projection. The Full HD PT-RW330U Projector expands projection capabilities in museums, digital signage and more.

Panasonic PT-RW330U Features

  • Bright Picture Quality for a Long Period of Time: The projector features 3500 lumens of brightness. Rate of brightness deterioration in the LED/Laser-combined light source is extremely slow compared to lamp based projectors
  • The LED/Laser-Combined Light Source Enables Approx. 20,000 Hours of Continuous Operation: This light source requires no maintenance for approximately 20,000 hours. In many cases, this means no maintenance until your next refresh cycle
  • 30x Drive Switching Prevents Color Breaking: In a 1-chip DLP system projectors with conventional lamp, a color wheel is used for time-division multiplexing in a method where the human eye combines the result to achieve a full-color palette
  • Heat Pipe Cooling System Maintains Stable Operation up to 113deg.F (45deg.C): Laser cooling is performed by releasing the heat to cooling fins, then cooling with a heat pipe cooling system
  • Dust-Resistant Structure with an Airtight Optical Block: The area between the LED/Laser to the DLP chip and prism is hermetically sealed to form an airtight structure for the optical block, the heart of the projector
  • DICOM Simulation Mode: This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images
  • Easy Remote Monitoring and Control Over a LAN: Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you the overall projector status
  • Horizontal/Vertical Lens Shift: The wide shift range accommodates various room sizes and shapes. When lights or ventilation holes are located in the ceiling mounting site, you can simply relocate the projector to avoid them
  • Flexible 360-Degree Installation: The projectors can be rotated vertically. This means you can install one at any up-and-down angle you want, to accommodate different installation conditions
  • The Daylight View Basic Ensures Clear Images Even in Brightly Lit Rooms: It achieves sharp, easy-to-see images by reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms
  • Rec. 709 Mode for HDTV Projection: Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected
  • First-Time and Replacement Installations: For a 120" (3 m) diagonal widescreen, the projection distance extends from approximately 12.8' (3.9 m) to approximately 25.7' (7.8 m)
  • Lens-Centered Design: A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site
  • Compatible with Crestron RoomView: The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Image Appears Immediately-No Need for Cooling After Use: Images do not appear quickly with lamp-based projectors because the projector requires time to warm up. With this projector, the image appears almost instantly
  • 24/7 Operation: Ordinary lamps are not well suited to continuous operation. Because the projector does not use a lamp, has efficient cooling system and uses DLP chip that has a long life, they are capable of 24/7 operation
  • Scheduling Function: Scheduled operation is possible using the built-in timer function, without having to use a PC and software
  • Effective Theft Prevention: You can change the default Panasonic start up logo to any logo you want. A new logo can be easily uploaded by connecting a computer to the projector through the LAN or serial connection by using the Logo Transfer Software
  • 49' (15 m) Range Remote Control: A unique ID number can be assigned to each projector using the supplied wireless remote control unit. This allows operation of a desired projector when multiple units are set up at the same location
  • Eco Management Functions: A number of functions are provided to reduce power consumption. You can easily set the eco management functions according to operating conditions by using the eco button on the remote control

Panasonic PT-RW330U Specifications

Panel Size
0.65 inches diagonal
Aspect Ratio
Display Method
DLP chip x 1, DLP projection system
1,024,000 (1,280 x 800) pixels
Light Source
LED/Laser - combined (R, B: LED; G: Laser diode)
3500 lumens
Contrast Ratio
10000:1 (full on/full off)
1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.)
Manual zoom (2.0x), manual focus lenses, F 2.0 - 3.4, f 21.5 - 43.0 mm
Projection Size (Diagonal)
1.02-7.62 m (40 - 300 inches)
Optical Axis Shift
Vertical: +69%, -46% from center of screen (manual)
Horizontal: +28%, -37% from center of screen (manual)
Scanning Frequency - HDMI/DVI-I
fH: 27 - 100 kHz, fV: 24 - 120 Hz, dot clock: 25 - 162 MHz
Scanning Frequency - DVI-I(analog)/RGB
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
Scanning frequency - YPBPR (YCBCR)
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]&nbps; fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
Scanning Frequency - Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF,
1080/25p, 1080/30p, 1080/60p, 1080/50p,
compatible with non-interlaced signals only, dot clock: 25-162 MHz,
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
Pin jack x 1 (Composite VIDEO)
M3 x 1 (L-R x 1)
M3 x 1 (L-R x 1) for output (variable)
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
RJ-45 x 1
(for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compatible with PJLink, HDCP compatible, Deep Color compatible)
1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
compatible with non-interlaced signals only, dot clock: 25-162 MHz
Keystone correction range
Vertical: ±40deg.
Power Supply
100 - 240 V AC, 5.2 - 2.0 A, 50/60 Hz
Power Consumption
460 W (470 VA) (250 W2 with LIGHT POWER set to NORMAL,
200 W2 with LIGHT POWER set to Ecosave1,
178 W2 with LIGHT POWER set to Ecosave2)
(0.5 W with STANDBY MODE set to ECO3, 8 W with STANDBY MODE set to NORMAL)
Operating Environment
Temperature: 0-45 deg.C7 (32-113 deg.F4),
Humidity: 20-80 % (no condensation)
Dimensions (WxHxD)
17.9x5.4x16.3" / 45.46x13.72x41.40cm (lens included)
Weight (Approximately)
24.3lbs / 11.02kg
