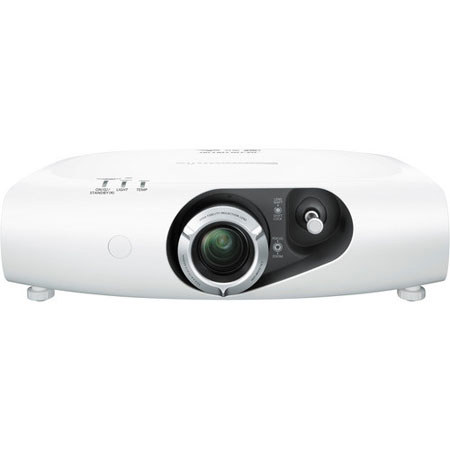

Panasonic PT-RW430UW LED Projector, 3500 Lumens Brightness, 16:10 Aspect Ratio, 20000: 1 Contrast Ratio, WXGA 1280x800 Resolution, White

Panasonic
SKU: PCPTRW430UW MFR: PT-RW430UW
Panasonic PT-RW430UW: Picture 1 thumbnail Panasonic PT-RW430UW: Picture 2 thumbnail Panasonic PT-RW430UW: Picture 3 thumbnail Panasonic PT-RW430UW: Picture 4 thumbnail Panasonic PT-RW430UW: Picture 5 thumbnail

Our Price

$2,999.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-RW430UW

The Panasonic PT-RW430UW LED Projector (White) features 3,500 lumens of brightness. Rate of brightness deterioration in the LED/Laser-combined light source is extremely slow compared to lamp-based projectors. The SOLID SHINE drive uses a built-in sensor to constantly detect the light intensity of the light source and correct corresponding changes in white balance. This all helps to maintain excellent picture quality for a long period of time. Contrast is outstanding too, at 20,000:1 and images are reproduced with a wide dynamic range.

This new light source requires no maintenance for approximately 20,000 hours and is fully capable of 24/7 operation. In many cases, this means no maintenance until your next refresh cycle. Naturally, there are no lamp burnout problems during use, so reliability is further increased. There is also no filter to clean due to carefully engineered sealed optics.

The Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.

Equipped with a DIGITAL LINK terminal, the PT- RW430UK allows transmission of HDMI, uncompressed HD digital video, audio and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

In 1-chip DLP system projectors with conventional lamp, a color wheel is used for time-division multiplexing in a method where the human eye combines the result to achieve a full-color palette. In the PT- RW430UW, this is done by on/off switching of the LED/Laser-combined light source. A unique Panasonic power supply circuit provides time-division multiplexing with ultrafast 30x drive. The resulting, high-definition images exhibit virtually no color breaking.

System capabilities such as a 2x zoom lens, an exceptionally wide horizontal and vertical lens shift range and 360-degree installation support highly flexible installation.

Panasonic PT-RW430UW Features

  • No More Maintenance: Approximately 20,000 hours of maintenance-free time with long-lasting high brightness and picture quality
  • Virtually Instant Projection: No warm up time and limitation to on/off cycle
  • Installation Flexibility: 2x zoom and wide lens shift capability enable easy first time and replacement installations
  • System Integration Features: Edge Blending, Color Matching, Multi-Unit Brightness Control and 3D capability all built into the PT-RZ470 Series
  • Portrait Mode Compatibility: 360 degrees installation and portrait mode compatibility enable projection onto many surfaces
  • Low Power Consumption: Low standby power consumption of about 0.4 W
  • Digital Link: Carry all uncompressed digital signals, control commands, audio from a single CAT5e (STP) cable or higher for up to 100 m (328 ft) of long distance
  • Compatibility with HDBaseT technology enables high-speed, large-capacity transmission over a single cable

Panasonic PT-RW430UW Specifications

Resolution
WXGA (1280 x 800)
Display Device
DLP Chip x 1, LED/Laser-combined
Brightness
3500 Lumens
Contrast Ratio
20000: 1
Video Signals
80p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz, audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Aspect Ratio
16:10
Power supply
100-240 V AC, 5.2-2.0 A, 50/60 Hz
Power consumption
460 W (470 VA) (250 W1 with LIGHT POWER set to NORMAL
200 W with LIGHT POWER set to Ecosave1
178 W1 with LIGHT POWER set to Ecosave2)(0.5 W with STANDBY MODE set to ECO2, 8 W with STANDBY MODE set to NORMAL)
Panel size
16.5 mm (0.65 inches) diagonal
Display method
DLP chip x 1, DLP projection system
Pixels
1,024,000 (1,280 x 800) pixels
Lens
Manual zoom (2.0x), manual focus, F 2.0-3.4, f 21.5-43.0 mm
Throw ratio
1.53-3.09:1
Light source
LED/Laser-combined (R, B: LED; G: Laser diode)
Screen size
1.02-7.62 m (40-300 inches)
Scanning frequency: HDMI/DVI-I(digital)
fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
Scanning frequency: DVI-I(analog)/RGB
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
Scanning frequency: YPBPR (YCBCR)
fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p]
fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Scanning frequency: Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift
Vertical: +69%, -46% from center of screen
Horizontal: +28%, -37% from center of screen
Keystone correction range
Vertical: ±40 deg.
Installation
Ceiling/floor, front/rear
HDMI IN
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4,
compatible with non-interlaced signals only, dot clock: 25-162 MHz,
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
DVI-I IN
DVI-I 29-pin x 1
Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4,
compatible with non-interlaced signals only, dot clock: 25 -162 MHz;
Analog: (RGB/YPBPR (YCBCR))
(RGB) IN
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN
Pin jack x 1 (Composite VIDEO)
AUDIO IN
M3 x 1 (L-R x 1)
AUDIO OUT
M3 x 1 (L-R x 1) for output (variable)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN/DIGITAL LINK
RJ-45 x 1
(for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compatible with PJLink, HDCP compatible, Deep Color compatible)
480p, 576p, 720/60p, 720/50p,
1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4,
compatible with non-interlaced signals only, dot clock: 25-162 MHz
3D SYNC OUT
Mini DIN 3-pin x 1, for 3D transmitter connection
Cabinet Materials
Molded plastic
Operation Noise
35 dB ( LIGHT POWER mode: NORMAL), 29 dB ( LIGHT POWER mode: LOW)
Operating Environment
Operating Temperature: 0-45 deg.C7 (32-113 deg.F7), Operating Humidity: 20-80 % (no condensation)
Dimensions (W x H x D)
455x137x415mm / 17.91x5.39x16.33" (lens included)
Weight
11.0kg / 24.3lbs (Approximately)
