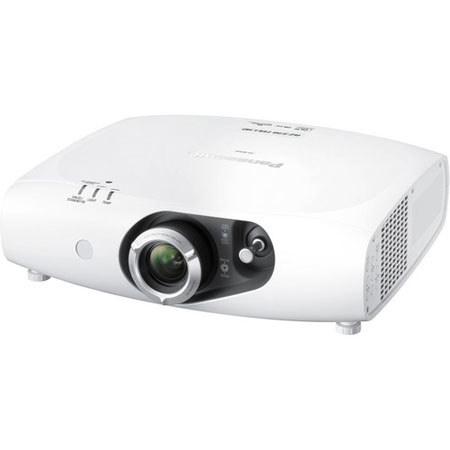

Panasonic PT-RZ370U Solid Shine DLP LED Projector, 3500 Lumens Brightness, 16:9 Aspect Ratio, 10000:1 Contrast Ratio, 1920x1080 Resolution

Panasonic
SKU: PCPTRZ370U MFR: PT-RZ370U
Panasonic PT-RZ370U: Picture 1 thumbnail Panasonic PT-RZ370U: Picture 2 thumbnail Panasonic PT-RZ370U: Picture 3 thumbnail Panasonic PT-RZ370U: Picture 4 thumbnail Panasonic PT-RZ370U: Picture 5 thumbnail

Our Price

$3,199.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-RZ370U

The Panasonic PT-RZ370U Solid Shine DLP LED Projector delivers 1080p high definition resolution and is one of the new SOLID SHINE Series that uses a newly developed LED/Laser-combined light source for superior reliability and long-lasting brightness unprecedented by conventional lamp-based projectors. No more lamps and air filters, which lets you enjoy maintenance-free use for about 20,000 hours while maintaining excellent brightness and picture quality and because the PT-RZ370U does not use a lamp, has an efficient cooling system, it is capable of 24/7 continuous operation.

The DIGITAL LINK support so you can transmit video, audio and control signals up to 100 meters (328 feet) over a single LAN cable. System capabilities have also been improved with 2x zoom and an exceptionally wide lens shift range, thus providing superb flexibility for easy first time and replacement installations.

The PT-RZ370U projector delivers 3,500 lumens of brightness and the rate of brightness deterioration in the LED/Laser-combined light source is extremely slow compared to lamp based projectors. The SOLID SHINE drive uses a built-in sensor to constantly detect the light intensity of the light source and correct corresponding changes in white balance. This all helps to maintain excellent picture quality for a long period of time. Contrast is outstanding too, at 10,000:1 and images are reproduced with a wide dynamic range. The PT-RZ370U features a Full-HD (1920x 1080) DLP chip, allowing highly detailed Full-HD images without resizing and it is also equipped with a 2x zoom lens so it can throw a 120-inch-diagonal wide screen image from approximately 12.8 to 25.7 ft.

This new projector also has new DIGITAL LINK Technology so when they are used with the optional ET-YFB100G Digital Interface Box, uncompressed HD digital video, audio and control signals can be transmitted up to 100m (328 ft) over a single LAN cable that makes it ideal for ceiling-mounted and other permanent installations. Also, because control signals can be simultaneously transmitted, the ET-YFB100G input signal can easily be switched with the wireless remote control that is included with the projector. The projector can be controlled by either serial or LAN communication. The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices.

Panasonic PT-RZ370U Specifications

Aspect Ratio
16:9
Panel Size
0.65 inches diagonal
Display Method
DLP chip x 1, DLP projection system
Pixels
2,073,600 (1,920 x 1,080) pixels
Light Source
LED/Laser-combined (R, B: LED; G: Laser diode)
Brightness
3,500 lumen
Contrast Ratio
10,000:1 (full on/full off)
Resolution
1,920 x 1,080 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,080 pixels.)
Lens
Manual zoom (2.0x), manual focus lenses, F 2.0-3.4, f 21.5-43.0 mm
Projection Size (Diagonal)
1.02-7.62 m (40-300 inches)
Optical Axis Shift
Vertical: +73%, -48% from center of screen (manual)
Horizontal: +27%, -35% from center of screen (manual)
Scanning Frequency - HDMI/DVI-I
fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
Scanning Frequency - DVI-I(analog)/RGB
fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
Scanning frequency - YPBPR (YCBCR) 1
fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
Scanning frequency - YPBPR (YCBCR) 2
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
Scanning Frequency - Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
HDMI IN
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF,
1080/25p, 1080/30p, 1080/60p, 1080/50p,
compatible with non-interlaced signals only, dot clock: 25-162 MHz,
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
COMPUTER (RGB) IN
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO In
Pin jack x 1 (Composite VIDEO)
AUDIO IN
M3 x 1 (L-R x 1)
AUDIO OUT
M3 x 1 (L-R x 1) for output (variable)
SERIAL IN
D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN/DIGITAL LINK
RJ-45 x 1
(for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compatible with PJLink, HDCP compatible, Deep Color compatible)
1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
compatible with non-interlaced signals only, dot clock: 25-162 MHz
Keystone correction range
Vertical: ±40deg.
Power Supply
100-240 V AC, 5.2-2.0 A, 50/60 Hz
Power Consumption
460 W (470 VA) (250 W with LIGHT POWER set to NORMAL,
200 W with LIGHT POWER set to Ecosave1, 178 W with LIGHT POWER set to Ecosave2)
(0.5 W with STANDBY MODE set to ECO3, 8 W with STANDBY MODE set to NORMAL)
Operating Environment
Operating temperature: 0-45 deg.C (32-113 deg.F),
Operating humidity: 20-80 % (no condensation)
Dimensions (WxHxD)
17.91x5.41x16.34" / 45.49x13.74x41.50cm (lens included)
Weight
24.3lbs / 11.02kg
