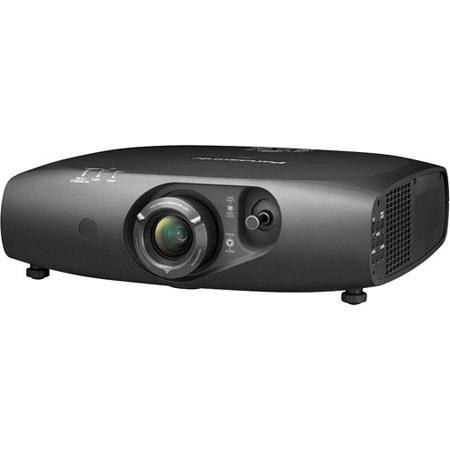

Panasonic PT-RZ470UK Solid Shine DLP LED Projector, 3500 Lumens Brightness, 16:9 Aspect Ratio, 20000: 1 Contrast Ratio, 1920x1080 Resolution, Black

SKU: PCPTRZ470UK MFR: PT-RZ470UK
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$3,699.00 $133 per week
Free Shipping
Qty:
Add to Wishlist

About the Panasonic PT-RZ470UK

The Panasonic PT-RZ470UK Solid Shine DLP LED Projector (Black) is free from lamps or air filters, so that you enjoy maintenance-free use for about 20,000 hours while maintaining high brightness and picture quality. To enhance permanent installation use, the DIGITAL LINK support has been added, allowing you to transmit video, audio and control signals up to 328' (100m) over a single LAN cable. This LED/Laser projector features a 2x zoom and a wide lens shift range, thus providing flexibility for easy first time and replacement installations. It is loaded with features for professional integration, such as Portrait mode, a Multi Screen Support System and 3D projection. The Full HD PT-RZ470UK Projector expands projection capabilities in museums, digital signage and more.

Panasonic PT-RZ470UK Includes

  • Panasonic PT-RZ470UK Solid Shine DLP LED Projector
  • Power Cord with Secure Lock
  • Wireless Remote Control Unit
  • AA-Type Batteries for Remote Control (2)
  • Panasonic 3 Year Warranty (Projector)
  • Panasonic 90 Day Warranty (Lamp)

Panasonic PT-RZ470UK Features

  • Bright Picture Quality for a Long Period of Time: The projector features 3500 lumens of brightness. Rate of brightness deterioration in the LED/Laser-combined light source is extremely slow compared to lamp based projectors
  • The LED/Laser-Combined Light Source Enables Approximately 20,000 Hours of Continuous Operation: This light source requires no maintenance for approximately 20,000 hours. In many cases, this means no maintenance until your next refresh cycle
  • 30x Drive Switching Prevents Color Breaking: In a 1-chip DLP system projectors with conventional lamp, a color wheel is used for time-division multiplexing in a method where the human eye combines the result to achieve a full-color palette
  • Heat Pipe Cooling System Maintains Stable Operation up to 113deg.F (45deg.C): Laser cooling is performed by releasing the heat to cooling fins, then cooling with a heat pipe cooling system
  • Dust-Resistant Structure with an Airtight Optical Block: The area between the LED/Laser to the DLP chip and prism is hermetically sealed to form an airtight structure for the optical block, the heart of the projector
  • DICOM Simulation Mode: This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images
  • Easy Remote Monitoring and Control Over a LAN: Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you the overall projector status
  • Horizontal/Vertical Lens Shift: The wide shift range accommodates various room sizes and shapes. When lights or ventilation holes are located in the ceiling mounting site, you can simply relocate the projector to avoid them
  • Flexible 360-Degree Installation: The projectors can be rotated vertically. This means you can install one at any up-and-down angle you want, to accommodate different installation conditions
  • The Daylight View Basic Ensures Clear Images Even in Brightly Lit Rooms: It achieves sharp, easy-to-see images by reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms
  • Rec. 709 Mode for HDTV Projection: Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected
  • First-Time and Replacement Installations: 2x Zoom Lens: For a 120" (3 m) diagonal widescreen, the projection distance extends from approximately 12.8' (3.9 m) to approximately 25.7' (7.8 m)
  • Lens-Centered Design: A lens-centered, symmetrical design provides ease of installation, eliminating the need for any special considerations when planning the installation site
  • Compatible with Crestron RoomView: The LAN terminal allows a computer connected to the network to use Crestron RoomView application software to manage and control system devices
  • Image Appears Immediately-No Need for Cooling After Use: Images do not appear quickly with lamp-based projectors because the projector requires time to warm up. With this projector, the image appears almost instantly
  • 24/7 Operation: Ordinary lamps are not well suited to continuous operation. Because the projector does not use a lamp, has efficient cooling system and uses DLP chip that has a long life, they are capable of 24/7 operation
  • Scheduling Function: Scheduled operation is possible using the built-in timer function, without having to use a PC and software
  • Effective Theft Prevention: You can change the default Panasonic start up logo to any logo you want. A new logo can be easily uploaded by connecting a computer to the projector through the LAN or serial connection by using the Logo Transfer Software
  • 49' (15 m) Range Remote Control: A unique ID number can be assigned to each projector using the supplied wireless remote control unit. This allows operation of a desired projector when multiple units are set up at the same location
  • Eco Management Functions: A number of functions are provided to reduce power consumption. You can easily set the eco management functions according to operating conditions by using the eco button on the remote control

Panasonic PT-RZ470UK Specifications

Native Resolution 1920 x 1080
Brightness 3500 Lumens
Contrast Ratio 20000: 1
Aspect Ratio 16:9
Power supply 100-240 V AC, 5.2-2.0 A, 50/60 Hz
Power consumption 460 W (470 VA) (250 W with LIGHT POWER set to NORMAL
200 W with LIGHT POWER set to Ecosave1
178 W with LIGHT POWER set to Ecosave)(0.5 W with STANDBY MODE set to ECO, 8 W with STANDBY MODE set to NORMAL)
Panel size 16.5 mm (0.65 inches) diagonal
Display method DLP chip x 1, DLP projection system
Pixels 2,073,600 (1,920 x 1,080) pixels
Lens Manual zoom (2.0x), manual focus, F 2.0-3.4, f 21.5-43.0 mm
Throw ratio 1.46-2.94:1
Light source LED/Laser-combined (R, B: LED; G: Laser diode)
Screen size 1.02-7.62 m (40-300")
Scanning frequency: HDMI/DVI-I(digital) fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz
Scanning frequency: DVI-I(analog)/RGB fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower
Scanning frequency: YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p]
fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
Scanning frequency: Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical: +73%, -48% from center of screen
Horizontal: +27%, -35% from center of screen
Keystone correction range Vertical: ±40 deg.
Installation Ceiling/floor, front/rear
HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4,
compatible with non-interlaced signals only, dot clock: 25-162 MHz,
audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
DVI-I IN DVI-I 29-pin x 1
Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p,
1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200),
compatible with non-interlaced signals only, dot clock: 25 -162 MHz;
Analog: (RGB/YPBPR (YCBCR))
(RGB) IN D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
VIDEO IN Pin jack x 1 (Composite VIDEO)
AUDIO IN M3 x 1 (L-R x 1)
AUDIO OUT M3 x 1 (L-R x 1) for output (variable)
SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
LAN/DIGITAL LINK RJ-45 x 1
(for network and DIGITAL LINK (video/audio/network/serial control) connection,
100Base-TX, compatible with PJLink, HDCP compatible, Deep Color compatible)
480p, 576p, 720/60p, 720/50p,
1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4,
compatible with non-interlaced signals only, dot clock: 25-162 MHz
3D SYNC OUT Mini DIN 3-pin x 1, for 3D transmitter connection
Cabinet Materials Molded plastic
Operation Noise 35 dB ( LIGHT POWER mode: NORMAL), 29 dB ( LIGHT POWER mode: LOW)
Operating Environment Operating Temperature: 0-45 deg.C (32-113 deg.F), Operating Humidity: 20-80 % (no condensation)
Dimensions (W x H x D) 455x137x415mm / 17.91x5.39x16.33" (lens included)
Weight 11.0kg / 24.3lbs (Approximately)
