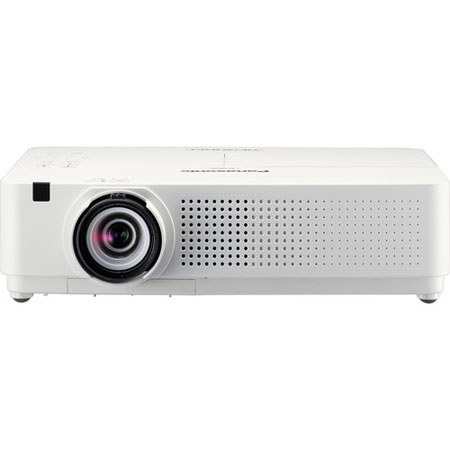

Panasonic PT-VW330U 3000 Lumens Portable Projector, 1280x800 WXGA Resolution, 2000:1 Contrast Ratio, 16:10 Aspect Ratio, 1.6x Zoom Lens, 245 W Lamp

Panasonic
SKU: PCPTVW330U MFR: PT-VW330U
Panasonic PT-VW330U: Picture 1 thumbnail Panasonic PT-VW330U: Picture 2 thumbnail Panasonic PT-VW330U: Picture 3 thumbnail Panasonic PT-VW330U: Picture 4 thumbnail Panasonic PT-VW330U: Picture 5 thumbnail Panasonic PT-VW330U: Picture 6 thumbnail

List Price: $1,499.00

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 2 Year Extended Warranty + $54.95
  • New Leaf 5 Year Extended Warranty + $86.95
  • New Leaf 2 Year Drops & Spills Extra Protection + $94.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $134.95
37% Off

Our Price

$949.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Panasonic PT-VW330U

The Panasonic PT-VW330U 3000 Lumens Portable Projector provides mobility, 3000 lumens of brightness in a compact form-factor and can be moved from one room to another or installed from a ceiling. Equipped with a lamp that has a 5,000-hour replacement cycle and an original 3-layer air filter with a 6,000-hour filter replacement cycle, labor and expense typically attributed to periodic maintenance is greatly reduced.

With a 1.6x zoom lens and auto keystone feature, installation, setup and operation is easy. This lightweight projector is portable and eco-friendly with a low 0.48W standby power consumption rating. The PT-VW330U projector also includes a wide array of features including a 10-watt speaker and microphone input for audio playback directly from the projector, a built-in closed caption decoder and a carrying bag with a handy shoulder strap.

Users can expect superb performance, quiet operation and with intelligent lamp control, minimal environmental impact. This PT-VW330U portable projector is ideal for use in corporate conference rooms, training rooms, classrooms and more.

Panasonic PT-VW330U Features

  • Superb Basic Performance: A remarkable 4000 lumens/3000 lumens of brightness and 2000:1 contrast have been achieved in a compact, easy-to-carry, 7.7 lb. (3.5kg) body. Bright, clear images enhance a variety of viewing situations and applications
  • Lamp and Air Replacement Cycle: These handy portables offer a lamp replacement cycle of up-to-5000 hours for extended, maintenance-free use. Three-layered air filters, in which each layer contains a different mesh size, are installed in two parts of the body
  • Quiet Design: The quiet design keeps noise levels down to 29 dB, so the sound of the cooling fan is hardly noticeable. This helps the audience to keep their attention on the speech when someone is giving a presentation or on the screen images during quiet scenes
  • Intelligent Lamp Control: When the lamp power is set to Auto, the intelligent lamp control system automatically adjusts the lamp output in accordance with the brightness of the projected image and reduces it by up to 70%. It also combines with color shift correction
  • Going Green: When the lamp power is set to eco1, eco2 or auto, you can display the total amount of reduced power consumption and decreased CO2 emission compared to when the lamp power is set to normal. It can be shown by day, month or year
  • Environmentally Friendly: When standby mode is set to eco; the standby power consumption is low at 0.48W. This lowers running costs and helps to reduce environment impact
  • 1.6x Zoom Lens Allows Flexible Installation: When projecting onto a 100" (1.5 m) wide screen, the 1.6x zooms lens lets the PT-VW330, for example, support a wide range of projection distances, from 8.2 to 13.5' (2.5 to 4.1 m)
  • Auto Input Signal Search and Input Guidance: The auto input signal search function automatically detects the input signal and selects the input channel based on the signal. This function lets you start a presentation without any complicated setup required
  • 10W Speakers and a Microphone Input: These portable projectors feature high-output 10W speakers that produce a high sound volume without requiring external speakers. They also feature a microphone input terminal that allows microphone sounds to be output from the projector
  • HDMI Input Terminal and Abundant Interfaces: Extensive interfaces include an HDMI input terminal, two sets of computer (RGB) input terminals, a wired LAN terminal & serial (RS-232C) terminal for external control. These features support a wide range of system architectures for or ceiling-mounted use
  • Easy Remote Monitoring and Control over a LAN: A Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement and indicate the overall projector status
  • Side-by-Side and P-in-P Function for Effective Presentations and Lectures: Two different image sources can be simultaneously displayed onto a single screen. You can also switch to P-in-P (Picture-in-Picture) mode and display a sub-window onto the main screen
  • Top-Panel Lamp Replacement Simplifies Maintenance: The lamp can be reached through the top panel for easy replacement. This eliminates the need to detach the projector from its ceiling bracket and greatly simplifies maintenance
  • Convenient Carrying Bag: A carrying bag with a handy shoulder strap comes with the projector. This bag helps protect the projector from impacts

Panasonic PT-VW330U Specifications

Panel Size
0.59" / 1.49cm (diagonal)
Aspect Ratio
16:10
Display Method
Transparent LCD panel (x 3, R/G/B)
Pixels
1,024,000 (1,280 x 800) x 3, total of 3,072,000 pixels
Lamp
245 W x 1
Brightness
3,000 lm (lamp power: Auto/Normal)
Contrast Ratio
2000:1
Resolution
1,280 x 800 pixels
Lens
1.6x manual zoom (throw ratio: 1.2-1.9:1), manual focus, F 1.65-2.33, f 15.47-24.53 mm
Screen Size
0.76-7.62 m (30-300 inch)
Optical Axis Shift
49:1
Scanning Frequency - HDMI
Horizontal: 15-80 kHz, vertical: 50-85 Hz, dot clock: 162 MHz or lower
Scanning frequency - RGB
fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
Scanning frequency - YPBPR (YCBCR)
fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
S-Video/Video
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
HDMI
HDMI 19-pin x 1 (compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4, compatible with non-interlaced signals only, dot clock: 25 -162 MHz
Computer In 1
D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
Computer In 2 / Monitor Out
D-sub HD 15-pin (female) x 1 (RGBx1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
Video In
RCA pin x 1 (composite video)
S-Video In
Mini DIN 4-pin x 1 (S-Video)
Audio IN
RCA pin x 2 (L-R x 1) for VIDEO/S-VIDEO input
Computer Audio In 1
M3 x 1 (L-R x 1)
Computer Audio In 2 (Mic In)
M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
Audio Out
M3 x 1 (L-R x 1) for output (variable)
Serial In
D-sub 9-pin (male) x 1 for external control (RS-232C compliant)
LAN
RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink (class 1))
Built-in speaker
3.7 cm round shape x 1, output power: 10 W (monaural)
Noise level
35 dB (lamp power: Normal), 29 dB (lamp power: Eco1, Eco2)
Installation
Ceiling/floor
Power Supply
100-240 V AC, 50/60 Hz
Power Consumption
322 W (0.48 W when standby mode set to Eco3, 12.5 W when standby mode set to Network.)
Operating temperature
5deg.C-35deg.C (41deg.F-95deg.F)
Operating humidity
20%-80% (no condensation)
Dimensions (WxHxD)
13.8x3.8x10.9" / 35.05x9.6x27.68cm (with legs at shortest position, not including protruding parts)
Weight
7.7lbs / 3.49kg
