Panasonic

Panasonic PT-VX505NU 5000 Lumens Portable Projector, 1024x768 XGA Resolution, 4000:1 Contrast Ratio, 16:10 Aspect Ratio, 1.6x Zoom Lens, 280 W Lamp

SKU: PCPTVX505NU MFR: PT-VX505NU
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,499.00 List Price

Our Price

$1,666.17
Free Shipping
Qty:

Add to Wishlist

Protect your investment

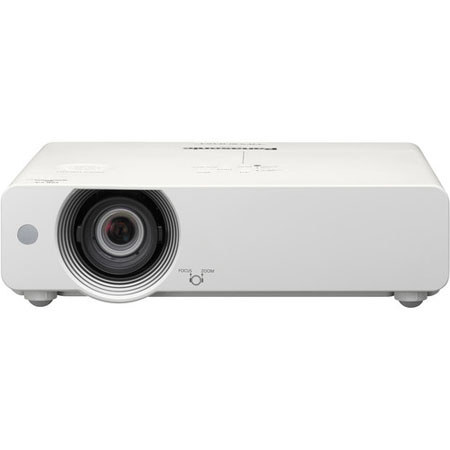

About the Panasonic PT-VX505NU

With 5,000 lumens and a 4000:1 contrast ratio, the Panasonic PT-VX505NU 5000 Lumens Portable Projector has the raw power to project vivid, saturated pictures in a variety of lighting situations. Panasonic has bundled together a number of technologies and convenience features aimed at making this projector a pleasure to use and an essential asset in a wide variety of scenarios. At the heart of the PT-VX505NU's image rendering arsenal is the proprietary Daylight View Basic Function which uses a sensor to measure the ambient light and subsequently adjust the color and brightness levels to open up detail in the darker image areas.

The 1.6x zoom lens allows for flexible installation options and screen sizes from 30 - 300". One you've established your screen size Panasonic's Easy Setup Functions take over so that you can start your presentation or programming expeditiously. Auto Input Signal Search detects your signal and assigns it the appropriate channel. If for some reason the signal can't be detected, the Input Guidance Function takes over, displaying onscreen connection instructions. And speaking of connectivity, the PT-VX505NU offers a wide variety of choices from HDMI to composite to S-video, as well as USB Type A and B for the Memory Viewer (PC-less presentation) and wireless mouse, respectively.

With compatible devices, you can eschew wires for presentations sourced from multiple PCs for a conference or board meeting or even a classroom situation. You can even use your iPad, iPhone or iPod touch as data sources. Other convenience features include Keystone Correction, long filter and lamp life and a quiet running fan (29 dB) that won't distract you from the programming.

Panasonic PT-VX505NU Includes

  • Panasonic PT-VX505NU 5000 Lumens Portable Projector
  • Power Cord
  • Power Cord Holder / Power Cord Cover
  • Wireless Remote Control Unit
  • 2 x Batteries (R03/LR03/AAA Type)
  • 5.9' (1.8m) RGB Cable
  • Filter Cover
  • Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring and Control Software, Wireless Manager ME 6.0)
  • Carrying Bag
  • Panasonic Warranty

Panasonic PT-VX505NU Features

  • A full 5,000 lumens of brightness and 3,000:1 contrast
  • Lamp replacement cycle of up to 4,000 hours
  • A large air filter enables replacement cycle of up to 4,000 hours
  • Quiet 29 dB design does not interrupt meetings (w/ ECO Lamp Mode)
  • Daylight View Basic technology ensures easy-to-see, clear images even in brightly lit rooms
  • Environment-friendly, low standby power consumption of 0.5W (in ECO Standby Mode)
  • RoHS compliant
  • EuP Lot 6 compliant
  • 1.6x zoom lens allows flexible installation
  • The lamp is easily replaced from the top
  • Easy setup thanks to vertical real-time keystone correction, auto input signal search and input guidance function
  • Abundant terminals including HDMI and two sets of RGB input terminals. RGB 2 IN can be switched to RGB 1 Out for loop-through monitoring
  • Built-in 10W speaker and a microphone input terminal
  • Multi-projector monitoring and control software allows multiple projectors to be managed together over a wired LAN
  • Web browser control over a wired LAN
  • PJLink compatibility
  • Compatible with Creston RoomView
  • Direct Power Off allows the room's main power to be turned off immediately after use
  • The startup screen can be customized using the Logo Transfer software from the Panasonic website to customize the projector and/or for theft prevention
  • Projector identification capability for remote control allocation of up to six projectors
  • Password function
  • High-speed wireless projection from multiple PCs
  • Wireless projection from iPad, iPhone or iPod touch
  • USB Display Function for easy projection using a USB cable
  • USB Memory Viewer for projection without a PC

Panasonic PT-VX505NU Specifications

Panel Size 0.63" / 1.6cm (diagonal)
Aspect Ratio 4:3
Display Method Transparent LCD panel (x 3, R/G/B)
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Lamp 280 W x 1
Brightness 4000 lm (lamp power: Auto/Normal)
Contrast Ratio 4000:1
Resolution 1,024 x 768 pixels
Lens 1.6x manual zoom (throw ratio: 1.2-1.9:1), manual focus, F 1.65-2.33, f 15.47-24.53 mm
Screen Size 0.76-7.62 m (30-300 inch)
Optical Axis Shift Vertical: +40deg.
Keystone correction range Vertical: ±30deg. (±20deg. auto keystone)
Scanning Frequency - HDMI Horizontal: 15-80 kHz, vertical: 50-85 Hz, dot clock: 162 MHz or lower
Scanning frequency - RGB fH: 15-100 kHz, fV: 50-100 Hz, dot clock: 140 MHz or lower
Scanning frequency - YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i(525i)]
fH: 31.50 kHz, fV: 60 Hz [480p(525p)]
fH: 45.00 kHz, fV: 60 Hz [720(750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1080(1125)/60i]
fH: 15.63 kHz, fV: 50 Hz [576i(625i)]
fH: 31.25 kHz, fV: 50 Hz [576p(625p)]
fH: 37.50 kHz, fV: 50 Hz [720(750)/50p]
fH: 28.13 kHz, fV: 50 Hz [1080(1125)/50i]
S-Video/Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
HDMI HDMI 19-pin x 1 (compatible with HDCP)
480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,
VGA (640 x 480)-WUXGA (1,920 x 1,200)4, compatible with non-interlaced signals only, dot clock: 25 -162 MHz
Computer In 1 D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
Computer In 2 / Monitor Out D-sub HD 15-pin (female) x 1 (RGBx1), (input/output selectable using on-screen menu)
(When Monitor Out is selected, the COMPUTER IN 1 signal is output.)
Video In RCA pin x 1 (composite video)
S-Video In Mini DIN 4-pin x 1 (S-Video)
Audio IN RCA pin x 2 (L-R x 1) for VIDEO/S-VIDEO input
Computer Audio In 1 M3 x 1 (L-R x 1)
Computer Audio In 2 (Mic In) M3 x 1 (L-R x 1) for audio input or for microphone connection (variable)
Audio Out M3 x 1 (L-R x 1) for output (variable)
Serial In D-sub 9-pin (male) x 1 for external control (RS-232C compliant)
LAN RJ-45 x 1 (for network connection, 10Base-T/100Base-TX, compliant with PJLink (class 1))
Built-in speaker Size: 4.0 cm x1 (round) / Output power: 10 W (monaural)
Noise level 37 dB (Lamp mode: NORMAL) / 29 dB (Lamp mode: ECO)
Installation Ceiling/floor, Front/rear
Power Supply 100-240 V AC, 50/60 Hz
Power Consumption 365 W (0.3 W when standby mode is set to ECO)(11.5 W when standby mode is set to network)
Operating temperature 0deg. - 40deg.C
Operating humidity 20%-80% (no condensation)
Power cord 2m / 6.5'
Dimensions (WxHxD) 379x107x305mm / 14.92x4.21x12"
Weight 4.8kg / 10.58lbs
