Peerless SP850 SmartMount Pull-out Pivot Wall Mount for 32-65" Flat Panel Screens, Supports up to 150lbs, Silver

Free Shipping

See all shipping options

Drop Ship - This item is typically shipped to you directly from Manufacturer within 2-5 Days. Delivery is subject to availability. learn more

Made in USA

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Peerless SP850

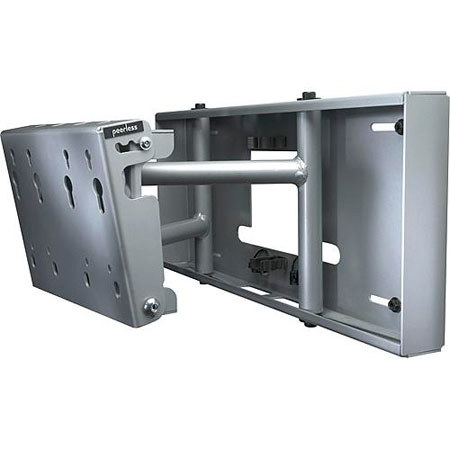

The Peerless SP850 SmartMount Pull-out Pivot Mount (Silver) combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45 degrees.

This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.

Peerless SP850 Features

  • Pull-out swivel with up to 45-degree rotation depending on screen size
  • Locking tab provides optional swivel restriction to one side
  • 3.4" deep in closed position, up to 11.9" fully extended
  • 0-degree, 5-degree or 10-degree lockable incremental tilt
  • ±1 degree roll for horizontal screen alignment during installation
  • Built-in cord management
  • Lock Key installation tool secures arms for screen installation
  • Lock-out screw prevents unwanted extension
  • Mounts to 16" wood studs, concrete, cinder block

Peerless SP850 Specifications

0deg., 5deg., or 10deg. lockable incremental tilt; +/-1deg. roll for horizontal screen alignment during installation
TGIC Powder Coat or Gloss
Load Capacity
150lbs (68kg)
Dimensions (W x H x D)
21" x 9.76" x 2.31"-10.68" (533.4 x 247.90 x 58.67-271.27mm)
17.6lbs (7.98kg)
