Peerless Vector Pro II Projector Mount Kit with Large Universal Clamp Style Bracket, Black

Usually ships in 3-5 days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$235.00 List Price

Our Price

$132.26 $6 per week
Free Shipping
Add to Wishlist

About this item

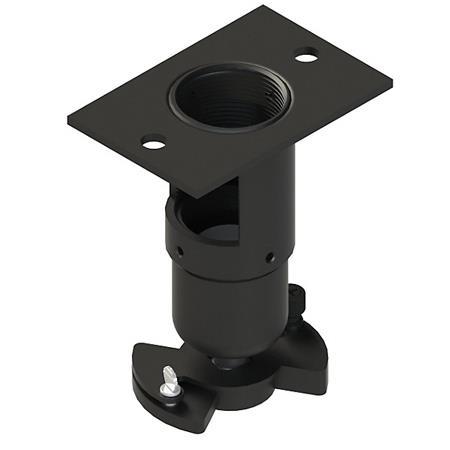

The Peerless PJF2-45 Vector Pro II Projector Mount Kit (Black) with Large Universal Clamp Style Bracket is a fully assembled mount that fits most large projectors measuring 10.75-18.75" wide and 5.5-10.0" high (27.3-47.6 x 14.0-25.4 cm). It can be flush mounted, installed using threaded rods or NPT pipe, or even wall mounted using a projector wall arm (accessories not included). The universal clamp-style adapter plate separately adjusts height and width to securely enclose your projector.

Theft-resistant armor protects your investment, while a cord access hole permits clean cable management. Two thumb screws make it easy to remove the projector for maintenance or cleaning. Flexible roll, pitch and yaw adjustments also let you point the picture where you want it.

What's Included With This Item

  • Peerless Ceiling Plate
  • Mount
  • Clamp-Style Universal Adapter Plate
  • Cable Management Extension Column Connector
  • Mounting Hardware
  • Peerless Warranty

Key Features

  • Fixed and Adjustable Height NPT Options: The Vector Pro II Projector Mount includes a standard 1.5" (3.81 cm) threaded pipe connector that lets you suspend your projector using custom fixed or adjustable NPT columns (sold separately). You can also flush mount it without buying any additional parts
  • Many Mounting Possibilities: Other mounting options include the ability to use 0.5" (1.27 cm) threaded rods along with the ACC 810 Adapter, wall mounting with the WMA-14 Adapter and even horizontally offset installation using the ACC 830 Side to Side Adjuster
  • Armor Lock Security: The Vector Pro II has a sturdy aluminum ball and socket joint reinforced by a steel bolt. Brass inserts at the adapter plate deter prying and prevent stripping while enlarged serrated washer head security screws further deter tampering
  • Adjustable Angle: The mount's ball and socket connector lets you quickly angle the projector toward your screen. ±180deg. yaw even lets you aim the projector at side walls or the back of the room as needed
  • Easy Projector Access: Dismounting the projector for maintenance is easy thanks to two thumb screws. The PJF2 is also designed to allow quick access to lamps and filters without disconnection, with most projectors
  • Cable Routing: Cables can be passed conveniently through the extension column to hide and shield them from intrusion

Technical Specs

Depth From Mounting Source Flush Mounted: 3.125" (7.94 cm)
With NPT Adapter: 6.25" (15.88 cm)
Max Equipment Size 18.75 x 10" (47.6 x 25.4 cm)
Adjustments Roll: ±15deg.
Pitch: ±15deg.
Yaw: 360deg.
Construction Mount: Aluminum
Connector: Nylon
Securing Bolt: Steel
Adapter Plate: Steel
Load Capacity 50lbs (22.67 kg)
Dimensions 11.75-20 x 8.38-17.25 x 8.9" (29.9-50.8 x 21.29-43.82 x 22.61 cm)
Weight 7.7 lbs (3.5 kg)
