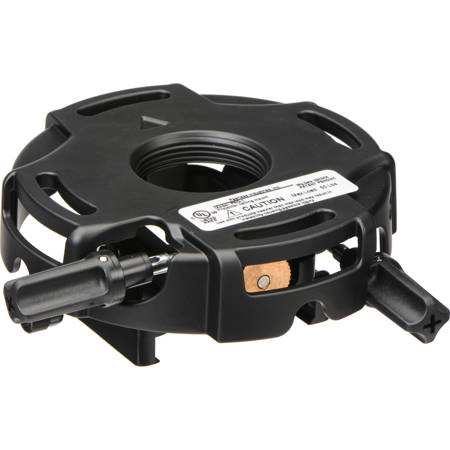

Peerless PRG-1 Precision Gear Projector Mount, 50lbs Load Capacity, Black

SKU: PEPRG1

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Peerless PRG-1 Specifications

  • Depth From Mounting Source

    2.5" (63mm) Base Mount

  • Adjustments

    Roll: +/-10deg.
    Pitch: +/-20deg.
    Yaw/Swivel: 360deg. with extension column
    +/-15deg. when flush mounted

  • Coupling

    1.5" NPT Pipe

  • Finish

    Scratch resistant fused epoxy

  • Construction

    Aluminum Alloy (Base Mount)

  • Load Capacity

    50 lbs (22.6kg)

  • Dimensions (W x H x D)

    5.58 x 2.47 x 5.58" (142 x 63 x 142mm) Base Mount

  • Weight

    1.56 lbs (0.71kg) Mount

  • UPC Code

    735029249856

2 Accessories for Peerless PRG-1 Precision Gear Projector Mount, 50lbs Load Capacity, Black

  • All Accessories (2)
  • Adapters & Mounts (2)Required Item

About Peerless PRG-1

Designed and built with both professional visual presentation pundits and home theater enthusiasts in mind, the Peerless PRG-1 Precision Gear Projector Mount (Black) combines unsurpassed durability and versatility, with the ability to support and securely mount virtually any projector up to 50 lbs anywhere on a ceiling surface. Pin-point image alignment is achieved with its unique precision gear technology. Projector-to-screen registration is a breeze with independent +/-10deg. roll and +/-20deg. pitch/tilt adjustment knobs, which can either be turned by hand or with a Philips screwdriver. 360deg. rotation is possible when attached to an extension column or +/-15deg. when flush mounted. Its low-profile design offers a very shallow mounting depth of only 2.5".

This mount's U-shaped bracket design enables easy cable management and its aluminum alloy construction offers exceptional design and strength in a simple form factor. In addition, the PRG-1 features horizontal tool access slots, pre-installed security screws, quick release mechanism and installation time is reduced to a minimum with its pre-assembled design. It integrates easily with a slew of Peerless' ceiling mount accessories, couples to standard 1.5" NPT steel pipe and attachment hardware is included.

Peerless PRG-1 Features

  • Precision Gear Technology: Exact projector image alignment is achieved with its precision gear mechanism design and independent adjustment knobs. Once set to the desired position, the PRG-1 stays securely in place
  • Cable Management: Its U-shaped bracket design allows cables to be routed through projector mount for a clean, professional appearance
  • Quick and Easy Installation: Installation is drastically reduced by its pre-assembled design. Horizontal wrench access slots enables you to make flush mounting a cinch
  • Versatility: The PRG-1 is compatible with virtually any projector weighing up to 50 lbs by utilizing model specific adapter plates or universal adapter plates

Key Features

  • Quick and Easy Installation
  • Precision Gear Technology
  • Cable Management
  • Versatile

What's in the box:

  • Peerless PRG-1 Precision Gear Projector Mount
  • Attachment Hardware Pack
  • Instructions Manual
  • Peerless 5 Years Limited Warranty
