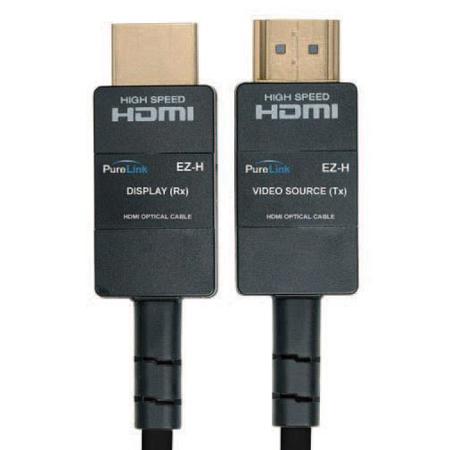

PureLink EZ-H 30m (98.42') Integrated HDMI Over Fiber Optic Cable
See all PureLink items

PureLink EZ-H 30m (98.42') Integrated HDMI Over Fiber Optic Cable with TotalWire Technology

SKU: PLEZH030
Be the first to review this item

This item is no longer available.

Recommended Alternatives

PureLink : Picture 1 regular
PureLink EZ-D 10m (32.81') Integrated Detachable DVI Over Fiber Cable
$699.99
PureLink : Picture 1 regular
PureLink EZ-D 20m (65.62') Integrated Detachable DVI Over Fiber Cable
$849.99
PureLink : Picture 1 regular
PureLink EZ-D 30m (98.42') Integrated Detachable DVI Over Fiber Cable
$999.99
PureLink : Picture 1 regular
PureLink EZ-D 40m (131.23') Integrated Detachable DVI Over Fiber Cable
$1,099.99
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

PureLink EZ-H 30m (98.42') Integrated HDMI Over Fiber Optic Cable Specifications

  • Input type

    Male HDMI, 1 port

  • Output type

    Male HDMI, 1 port

  • Graphic Resolution

    VGA / SVGA / XGA / UXGA / WUXGA
    480i/p , 720i/p , 1080i/p, 4K/UHD (3840x2160)

  • Video Standards

    WUXGA (1920 x 1200 at 60Hz), HDTV 3840x2160 (4K), 3D, 36-bit Deep Color

  • Audio Standards

    Up to PCM 8 channel, Dolby Digital TrueHD and DTS-HD Master Audio

  • Cable Length

    30m / 98.42'

  • Cable Jacket Material

    Plenum Rated PVC

  • Cable Inner-jacket Material

    Plastic Optical Fiber and Copper

  • Cable Diameter

    0.12" / 3.05mm

  • Bend Radius

    0.2" / 5.08mm minimum

  • Compliance

    HDMI, HDCP, CEC

  • Operating Temperature

    32 deg. to 122 deg. F (0 deg. to 50 deg. C)

  • Operating Humidity

    5% - 85% RH

  • Power

    5V via DVI pin # 18

  • Power Consumption

    0.07 Watts

  • Common Application

    Digital Home Theater, Conference Room AV System, Medical Display System, Data Center, Digital Signage

  • Connector Pulling Weight

    22lbs / 9.98kg

About PureLink EZ-H 30m (98.42') Integrated HDMI Over Fiber Optic Cable

The TotalWire EZ-H offers the easiest install solution for HDMI, supporting resolutions up to 4K / Ultra HD over long cable runs (up to 100 meters) without the need for an external power supply or additional extenders. With its ultra thin, flexible cable and small connector, the EZ-H delivers ultimate reliability and convenience.

All the Advantages, None of the Hassle
PureLink's TotalWire EZ-H fiber cables are completely self-powered and available in pre-terminated lengths with both plenum and UL riser sleeves. The EZ-H can simply be used as a regular HDMI cable for powerful, long-distance extension without the need for additional extenders, equalizers or power supplies. The EZ-H delivers ultimate reliability and convenience for an EZ-In, EZ-Out fiber transport solution.

Additional Features
• 3D Support with 36-bit Deep Color
• Incorporates active transceivers inside connectors
• Immune from electrical noise (EMI & RFI)
• Plug-n-play (no additional power supply required)
• HDCP Compliant
• Plenum Rated

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • PureLink EZ-H 30m (98.42') Integrated HDMI Over Fiber Optic Cable
  • User's Manual
  • PureLink 2 Year Warranty
