Planar

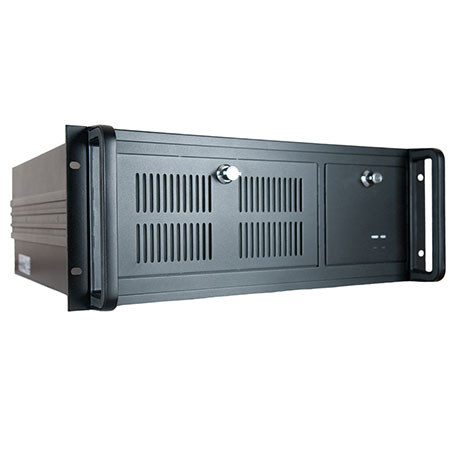

Planar Clarity VCS-1254 Visual Control Station, Intel Quad Core 2.66GHz, 4GB RAM, 2x500GB HDD, Windows 7, 12xDVI Out, 4xSD video, 5xHD Video Capture

SKU: PLNR9331102 MFR: 933-1102
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$18,200.00
Free Shipping
Qty:

Add to Wishlist

About the Planar VCS-1254

The Planar Clarity VCS-1254 Visual Control Station (VCS) is a flexible and easy to use video wall controller designed for the capture, display and management of visual sources on a video wall. With a compact design and powerful form factor, Clarity VCS supports a wide range of visual inputs and high resolution video walls. Clarity VCS is designed to be highly reliable and easy to set-up, use and maintain.

Planar VCS-1254 Features

  • Clarity VCS is fully configurable and can drive video walls comprised of up to 40 high resolution displays, scalable from small to large installations
  • Using Windows 7 based VCS Control Software, visual sources can be placed and resized individually anywhere on the video wall or, through the click of a mouse, the entire video wall can revert to a preset layout of windows
  • Clarity VCS Hardware: The Clarity VCS Processor utilizes a 4U rack-mountable chassis with high performance PCI express backplane. With its choice of powerful server-class CPUs, RAID 0,1 hard drives and redundant power supplies, it is both powerful and reliable
  • Broad Range of Source Capture: Through its wide variety of source capture and modular expansion capabilities, Clarity VCS offers flexibility and freedom of choice unachievable with many other video wall processors
  • Control and Monitoring Software: Clarity VCS Control software provides a visual environment in which to control the entire video wall layout. With VCS Control, windows on the video wall can be opened, placed, moved and sized

Planar VCS-1254 Specifications

Processor Intel Quad Core CPU 2.66GHz
Operating System Windows 7
Memory (RAM) 4GB DDR2
Control Software VCS Control
Backplane PCI Express switch fabric
Hard Disk Drive 2 x 500GB removable SATA hard drives with RAID 1
Storage 1 x DVD-RW drive
VGA Port Integrated VGA output for control screen
Ethernet 2 x RJ45 (10/100/1000)
USB Ports 4 external ports, USB 2.0
Serial Ports 1 via USB to Serial adapter
Graphics Outputs 12 x DVI outputs. 1920 x 1200 at 60Hz max resolution each.
Video Inputs 5 x HD video capture (DVI, HDMI, Component or VGA); 4 x SD video (Composite, S-Video, NTSC, PAL, SECAM)
Power Supply 2 x 500W, Redundant
Power Consumption (max) 227W
Operating Temperature 0deg. to +35deg. C
Dimensions (W x H x D) 17.3 x 7.0 x 17.7" / 43.94 x 17.78 x 44.95 cm
