Planar

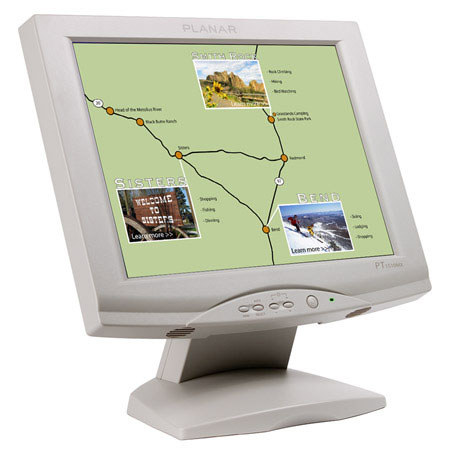

Planar PT1510MX 15" Resistive Touch Screen LCD Monitor with Serial/USB Driver & Speakers, 8ms Response Time, 190 cd/m2 Brightness, Analog Video Inputs, White

SKU: PLNR9973394 MFR: 997-3394
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$479.00
Free Shipping
Qty:

Add to Wishlist

About the Planar PT1510MX

The Planar PT1510MX 15" economical touch screen monitor (White) with resistive touch technology is perfect for retail, POS and hospitality applications. The cost-effective Planar PT1510MX 15" touch screen monitor is perfect for kiosk integrators, Value Added Resellers(VARs) and Original Equipment Manufacturers (OEMs) in retail, Point Of Sale(POS) or hospitality applications. Easily integrated with a variety of POS, thin-client or PC systems, the monitor features 5-wire resistive touch screen and dual RS-232/USB touch screen interface. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions.

The Planar PT1510MX monitor comes standard with a deskstand and is compatible with other mounting options using the 75mm VESA standard hole pattern on the back of the monitor. Planar has nearly 30 years of experience delivering dependable specialty display solutions.

Planar PT1510MX Includes

  • Planar PT1510MX 15" Resistive Touch Screen LCD
  • Power Adapter
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
  • Planar Warranty

Planar PT1510MX Specifications

Viewable Size 15" diagonal (11.97" horizontal x 8.98" vertical)
Touchscreen Type 5-wire Resistive
Number of Touch Points 1
Touchscreen Interface Dual Serial/USB
Transmissivity 76% (typical)
Contrast Ratio (typ) 500:1
Viewing Angle (typ) 140deg. Horizontal and 125deg. Vertical
Response Time (typ) 8 ms
Brightness (w/touchscreen) 190 cd/m2
Brightness (w/o touchscreen) 250 cd/m2
Display Type LCD Active Matrix Flat Panel Display (TFT)
Display Resolution 1024 x 768
Tilt Range -3deg. to +25deg.
Palette 16.7 million colors
Pixel Pitch 0.297 mm
Refresh Rate 56 to 75 Hz (60 Hz recommended)
Video Inputs Analog
Audio Output Integrated stereo speakers with 1W/channel
Compatibility Windows 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections DC power-in barrel connector, D-sub 15 pin, Audio In connector, D-Sub 9-pin, USB connector
Power Supply External
Power Requirements 100-240 VAC, 50/60Hz
Power Consumption (max) 30W (3W standby)
Operating Temperature +5deg. to +35deg. C
VESA Compatible/Location Built-in 75 mm VESA, monitor back
Product Approvals UL/c-UL, FCC-Class B, TUV-T mark, CE, RoHS
Panel Depth 2.2" / 5.58
Dimensions (W x H x D) With Stand: 15.1 x 15.1 x 7.1" / 38.35 x 38.35 x 18.03 cm
without Stand: 15.1 x 12.3 x 2.2" / 38.35 x 31.24 x 5.58 cm
Weight 10.4 lbs / 4.71 kg (With Stand)
7.9 lbs (3.6 kg) (w/o stand)
