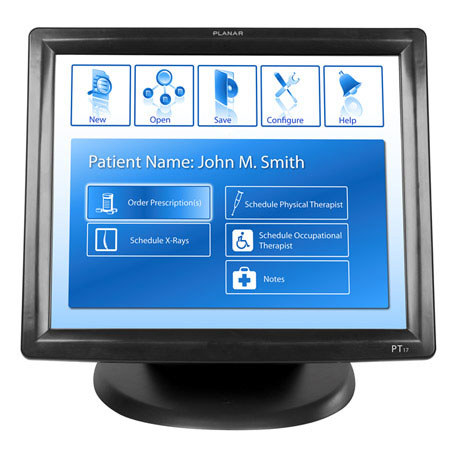

Planar PT1775S 17" SAW Touch Screen Monitor, 1280x1024 Resolution, 800:1 Contrast Ratio, 5ms Response Time, 276 cd/m2 Brightness, Analog Video Inputs

SKU: PLNR9973408 MFR: 997-3408
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$639.00
Free Shipping
Qty:

Add to Wishlist

About the Planar PT1775S

The Planar PT1775S 17" SAW touch screen monitor features dual serial/USB touch screen interface and -5deg. to 90deg. tilt range. The Planar PT1775S 17" touch screen monitor is perfect for use in healthcare, retail, point-of-sale (POS) and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a SAW touch screen and dual serial/USB touch screen interface. No drivers are needed for basic touch screen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. The monitor easily adjusts from -5deg. to 90deg. based on user preference.

The OSD buttons are located on the side of the monitor to minimize setting changes and can be locked to eliminate unauthorized setting changes.

Planar PT1775S Includes

  • Planar PT1775S 17" SAW Touch Screen Monitor
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
  • Planar Warranty

Planar PT1775S Specifications

Viewable Size 17" diagonal (13.30" horizontal x 10.64" vertical)
Touchscreen Type SAW (Surface Acoustic Wave)
Number of Touch Points 1
Touchscreen Interface Dual Serial/USB
Transmissivity 88% (Min)
Contrast Ratio (typ) 800:1
Viewing Angle (typ) 170deg. horizontal, 160deg. vertical
Response Time (typ) 5 ms
Brightness (w/touchscreen) 276 cd/m2
Brightness (w/o touchscreen) 300 cd/m2
Display Type LCD Active Matrix Flat Panel Display (TFT)
Display Resolution 1280 X 1024
Tilt Range -5deg. to 90deg.
Palette 16.7 million colors
Pixel Pitch 0.264 mm
Refresh Rate 56 to 75 Hz
Video Inputs Analog
Audio Output 2 speakers, 1W/channel
Compatibility Windows 7, Vista, XP, 2000, ME, 98, NT 4.0, CE, XP Embedded, Apple Mac OS, Linux, HID Compliant - no drivers needed for basic touchscreen operation
External Connections D-sub 15-pin, D-sub 9-pin, Type B socket USB, Stereo Jack - 3mm, AC Power-in, DC Power-in
Power Supply Internal AC power supply,12V DC power connector (Optional DC power supply may be sourced separately)
Power Requirements 100-240 VAC, 50/60Hz
Power Consumption (max) 40W (<4W standby)
Operating Temperature 0deg. to +40deg. C
VESA Compatible/Location Built-in 75mm and 100mm VESA, back
Product Approvals UL/c-UL, FCC-Class B, CE, RoHS
Panel Depth 2.7" / 6.85 cm
Dimensions (W x H x D) With Stand: 15.8 x 14.6 x 8.9" / 40.13 x 37.08 x 22.60 cm
Without Stand: 15.8 x 13.3 x 2.7" / 40.13 x 33.78 x 6.85 cm
Weight With Stand: 17.2 lbs / 7.80 kg
Without Stand: 13.6 lbs / 6.16 kg
