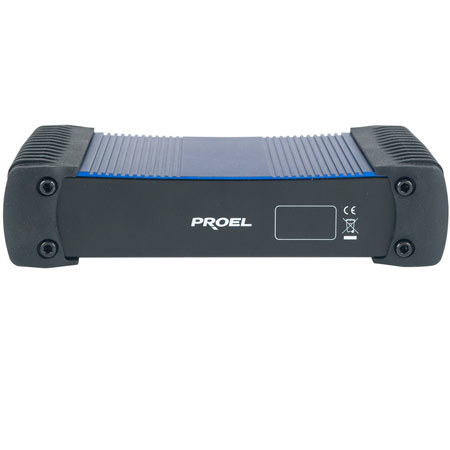

Proel DB1P Single-channel Passive DI Box, 10 Hz to 100 kHz Frequency Response

SKU: PRDB1P MFR: DB1P
.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$99.00 List Price

Our Price

$69.00 $3 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Proel DB1P

The Proel DB1P is a single-channel passive DI BOX equipped with the same type of MU-METAL core transformer used in the DB1A, which provides minimum distortion, linear phase and hum-free transmission also on very long cables. Thanks to the input stage design, DB1P can accept also signals coming directly from the power output of instrument amplifiers, PAD up to 60 dB.

A specially designed input filter is also available for cutting any hiss or buzz noise coming from acoustic or electric guitar and basses.

Proel DB1P Specifications

System Type 1 channel passive DI
Input Impedance 120K Ohm (pad at 0 dB)
47k Ohm (pad at -20/-60 dB)
44k Ohm (pad at -40 dB)
Max Input Level +15 dBu (pad at 0 dB)
+35 dBu (pad at -20 dB)
+55 dBu (pad at -40 dB)
+75 dBu (pad at -60 dB)
Connectors Two Parallel 1/4" jack connectors and one parallel XLR connector (unbalanced)
Jack: Tip Hot / Sleeve Ground
Output Transformer Balanced (isolated with shielding)
Max. Output Level Transformer Balanced (isolated with shielding)
-5 dBu (for 0.1% THD at 50 Hz)
+5 dBu (for 0.1% THD at 1k Hz)
Connector XLR male: Pin 2 Hot / Pin 3 Cold / Pin1 Ground
Insertion loss 20 dB
CMR > 100 dB
Phase distortion 0deg. at 20 Hz, 0deg. at 20k Hz
Distortion THD 50Ò20k Hz 0dBu < 0.007 %
Noise < -105 dBu unweighted
Frequency Response 10 Hz to 100 kHz, +0dB/-1 dB
Controls Pad -20, Pad -40, Gnd Lift, Filter (12" emulator)
Dimensions (W x H x D) 215 x 50 x 125 mm / 9.65 x 1.97 x 4.92 inches
Weight 1 Kg / 2.20 lbs
